Camera
Removing the camera
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the display assembly.
4. Remove the display bezel.
5. Remove the display panel.
About this task
The following images indicate the location of the camera and provide a visual representation of the removal procedure.

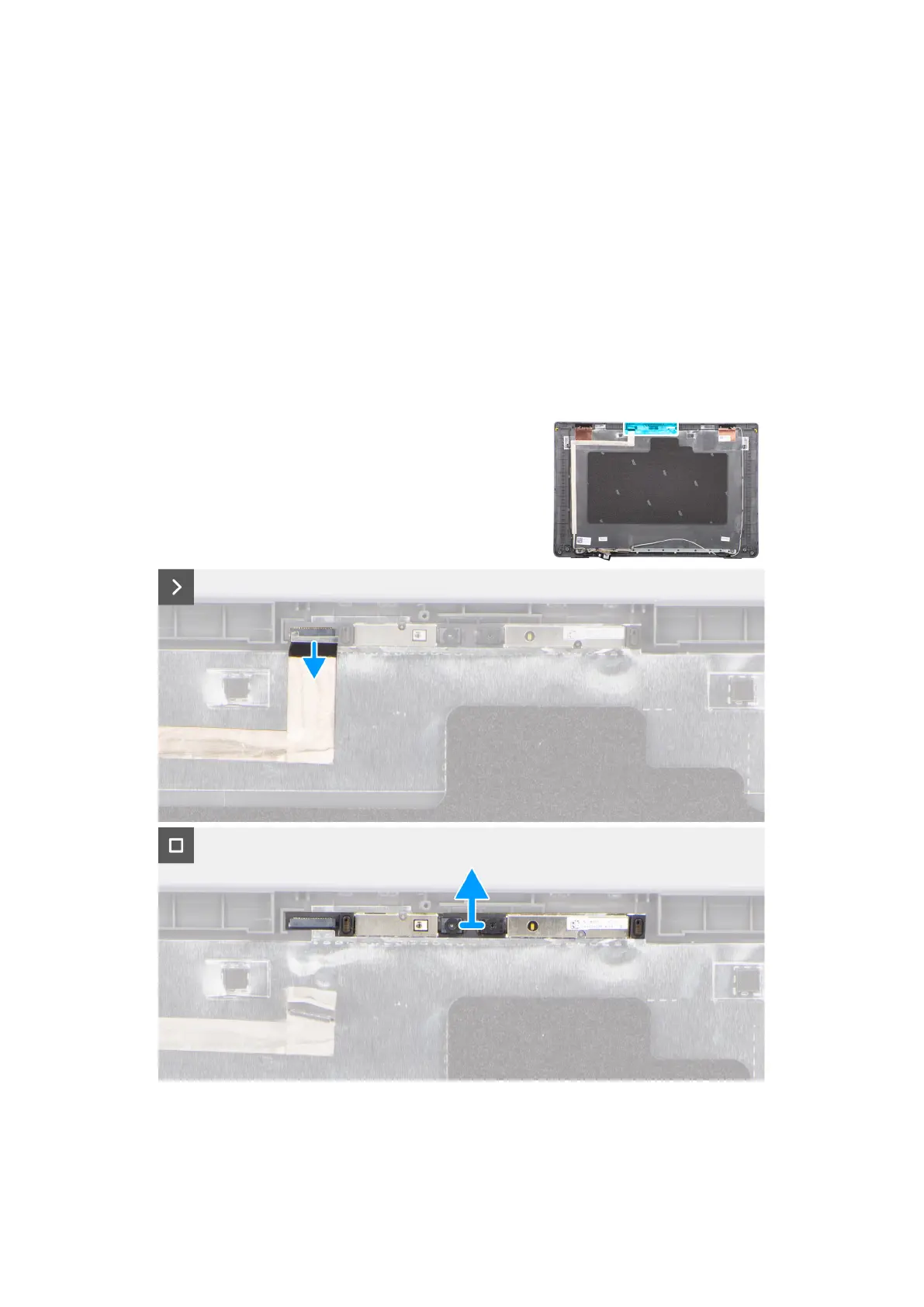

Figure 66. Removing the camera
Steps
1. Disconnect the camera cable from the camera module.
94
Removing and installing Field Replaceable Units (FRUs)
