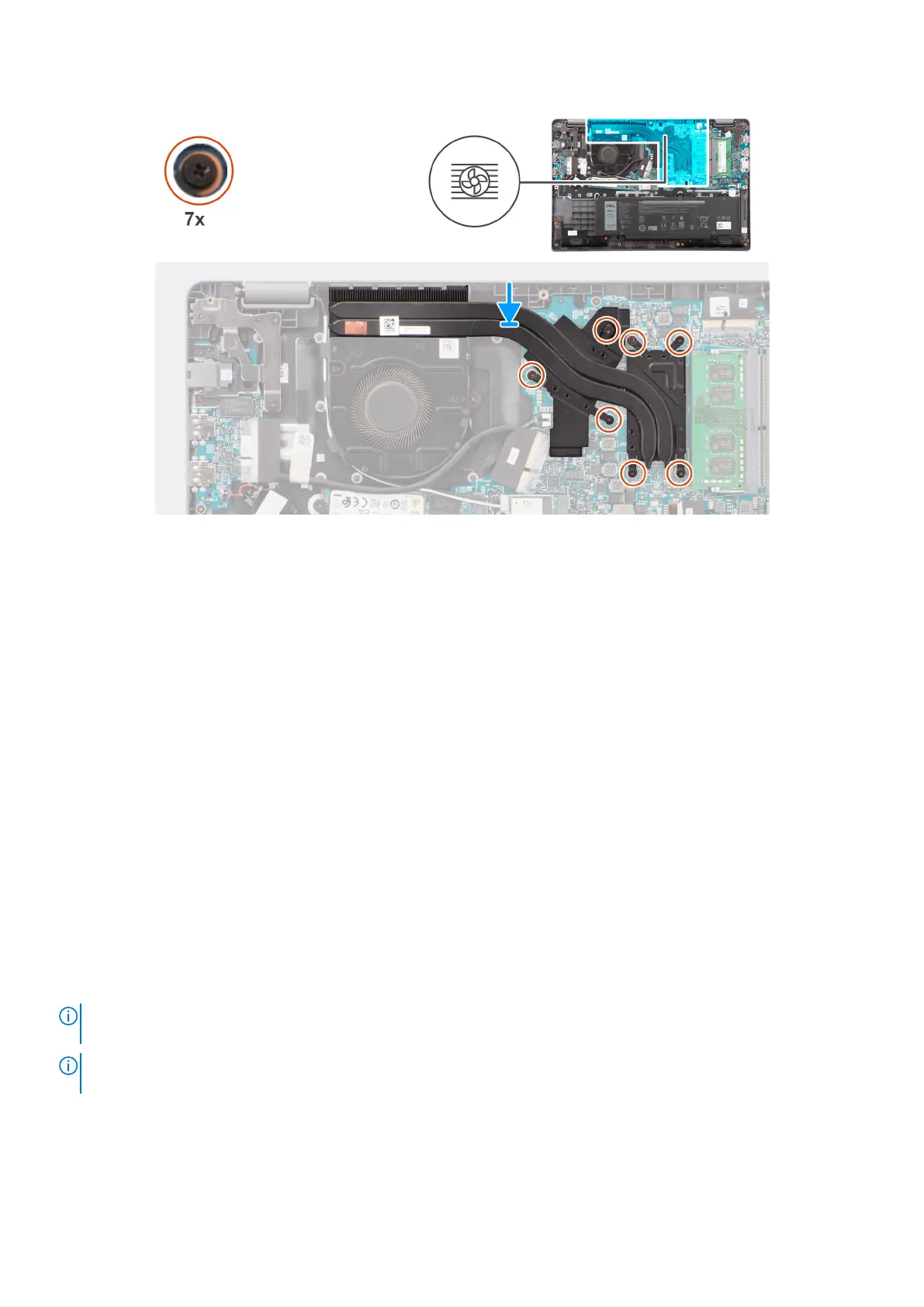

Figure 32. Installing the heat-sink for discrete graphics
Steps
1. Place the heat-sink into its slot on the system board.
2. Align the screw holes on the heat-sink to the screw holes on the system board in the sequential order mentioned on the
heat-sink [1 > 2 > 3 > 4 > 5 > 6 > 7] .
3. Tighten the seven captive screws to secure the heat-sink to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Fan
Removing the fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE:
The fan may become hot during normal operation. Allow sufficient time for the thermal fan to cool before you touch
it.
NOTE: For maximum cooling of the processor, do not touch the heat-transfer areas on the thermal fan. The oils in your skin
can reduce the heat-transfer capability of the thermal grease.
The following image indicates the location of the thermal fan and provides a visual representation of the removal procedure.
