Dell P170G User Manual

2. Lift to remove the camera module from the display back cover.
Installing the camera
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the display panel and provides a visual representation of the installation procedure.

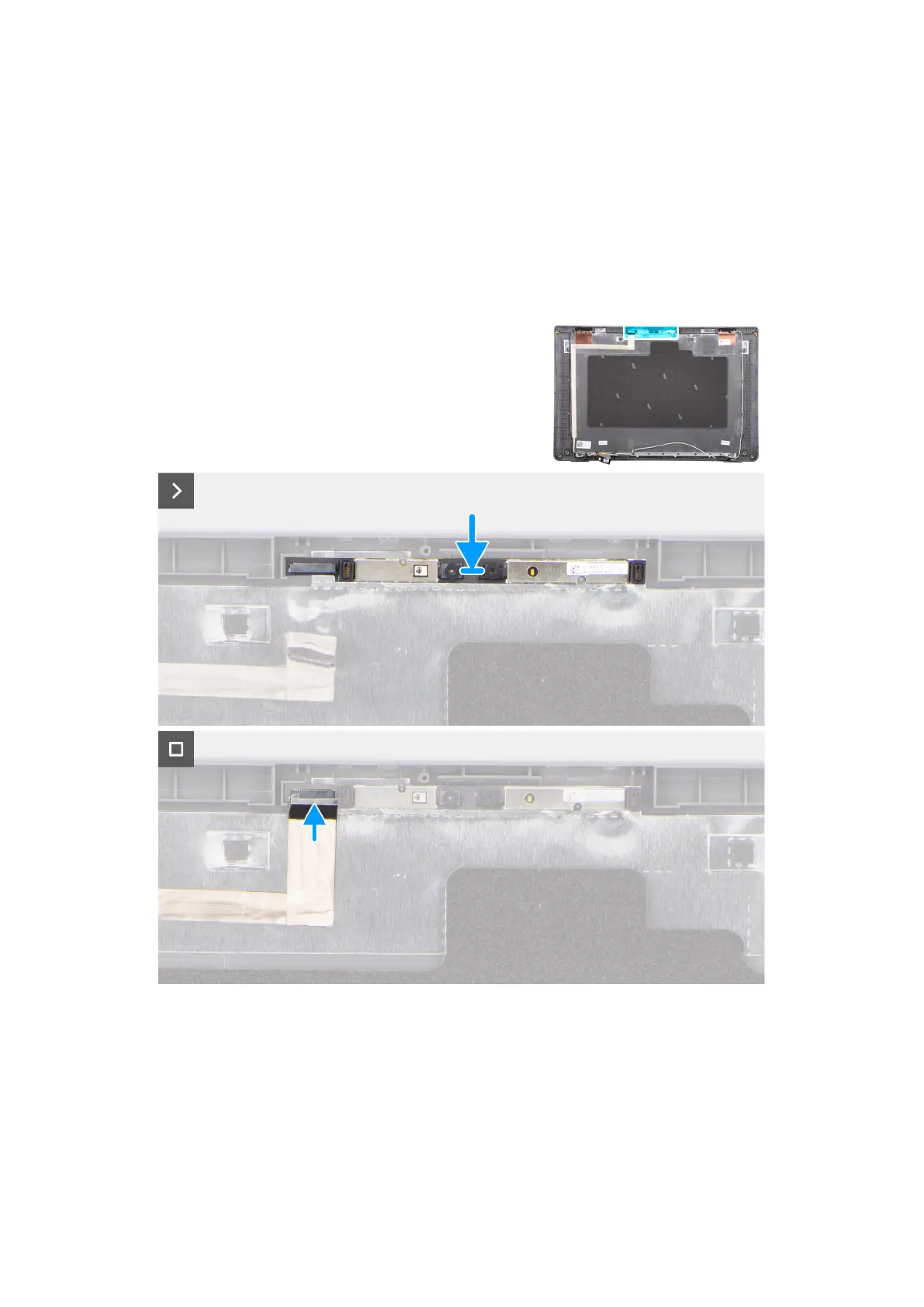

Figure 67. Installing the camera
Steps
1. Align and replace the camera module on the display back cover.
2. Connect the camera cable to the camera module.
Next steps
1. Install the display panel.
2. Install the display bezel.
Removing and installing Field Replaceable Units (FRUs)
95
