About this task
The following images indicate the location of the power-adapter port and provide a visual representation of the removal
procedure.

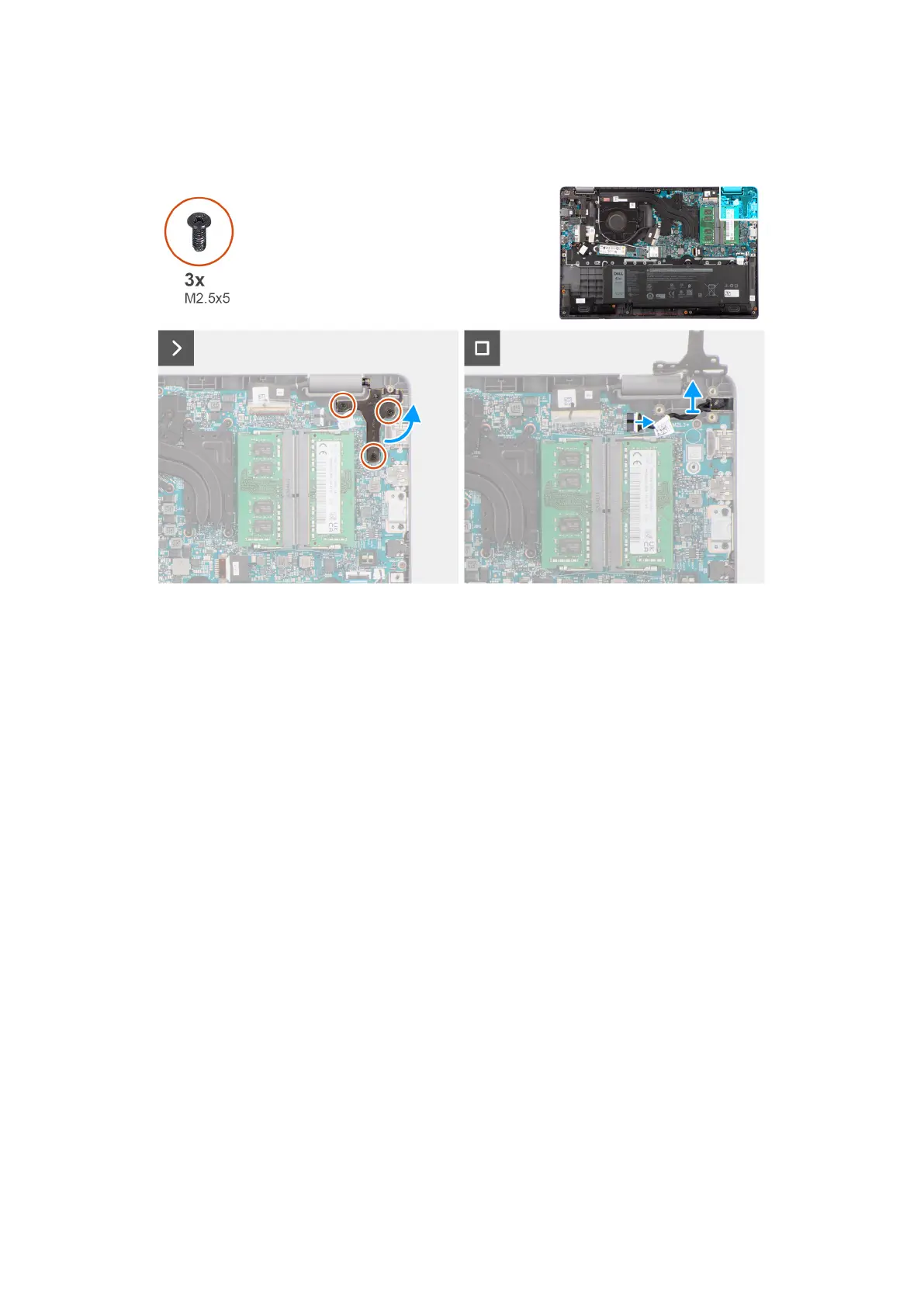

Figure 27. Removing the power-adapter port
Steps
1. Remove the three screws (M2.5x5) that secure the right display hinge to the system.
2. Lift the right display hinge in upward direction away from the system.
3. Disconnect the power-adapter port cable from the connector on the system board and remove the power-adapter port from
the system board.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power-adapter port and provide a visual representation of the installation
procedure.
58
Removing and installing Field Replaceable Units (FRUs)
