3. Install the display assembly.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.
eDP cable
Removing the eDP cable
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the display assembly.
4. Remove the display bezel.
5. Remove the display panel.
6. Remove the camera.
About this task

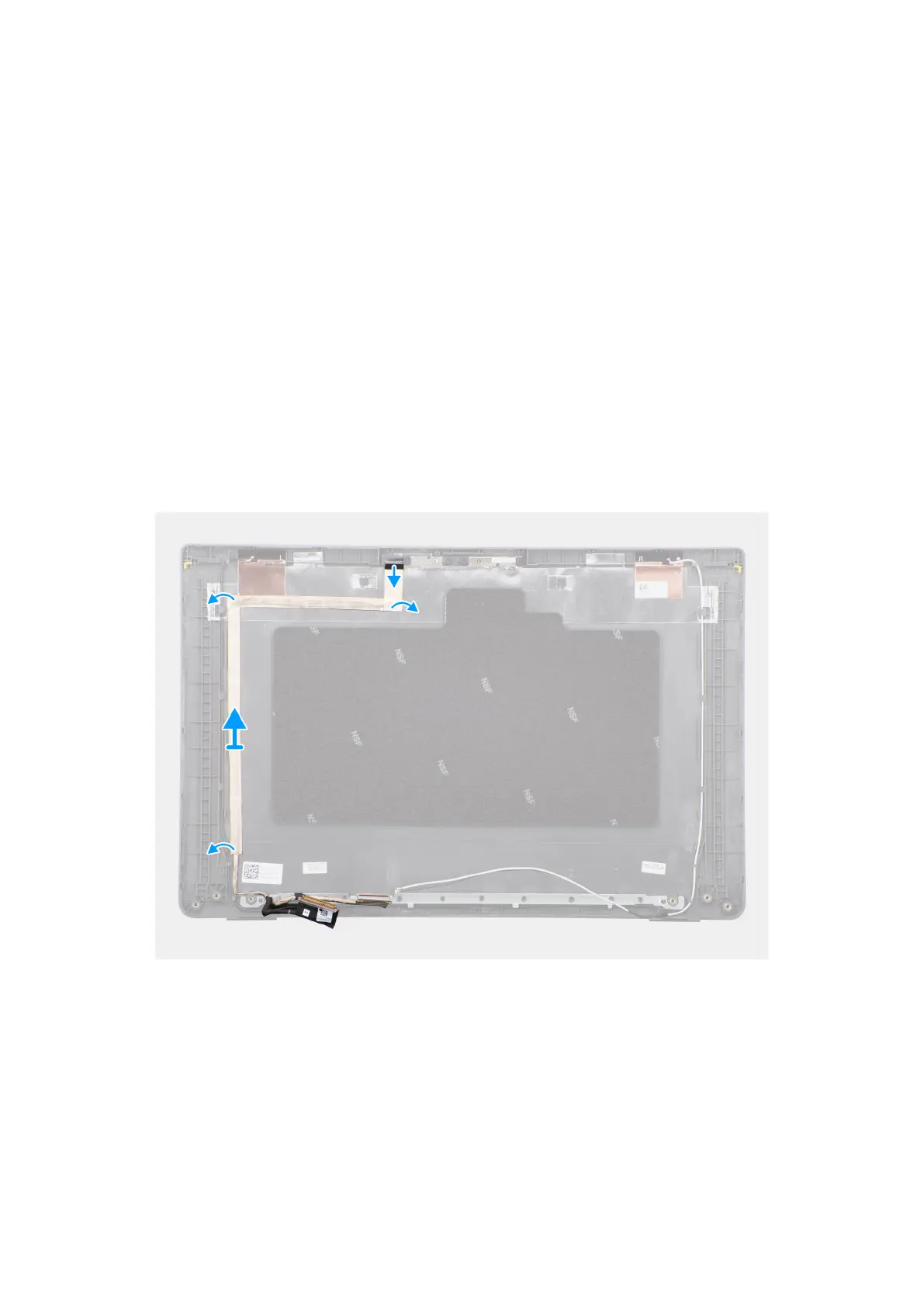

The following image indicates the location of the eDP cable and provide a visual representation of the removal procedure.
Figure 68. Removing the eDP cable
Steps
1. Disconnect the eDP cable from the connector on the camera module.
2. Peel the conductive tape and unroute the eDP cable to release it from adhesive and lift the eDP cable from the display back
cover.
