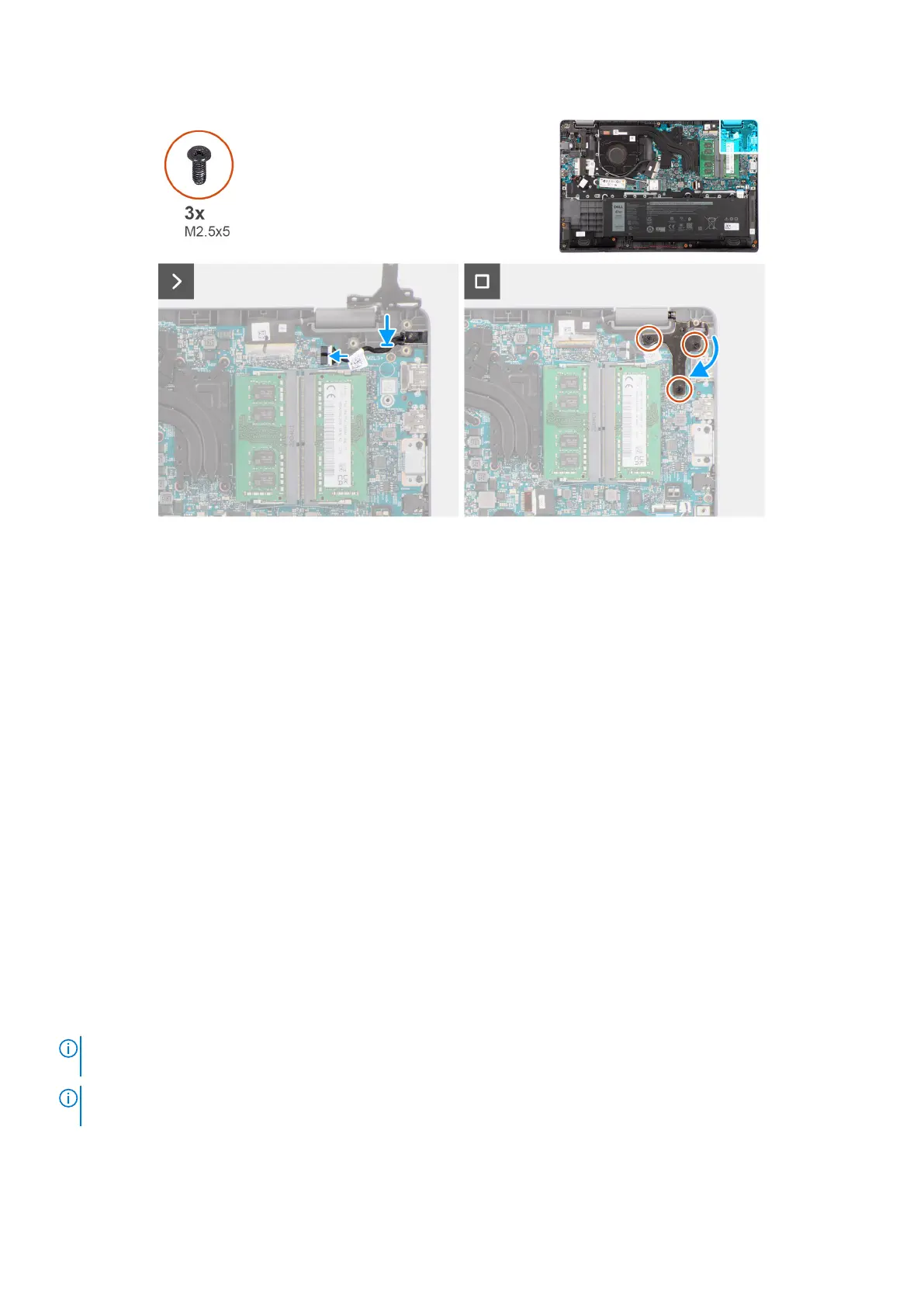

Figure 28. Installing the power-adapter port
Steps
1. Align and place the power-adapter port on the system board.
2. Connect the power-adapter port cable to the connector on the system board.
3. Gently press the right display hinge in downward direction towards the system.
4. Align the screw holes on the right display hinge with the screw holes on the system.
5. Replace the three screws (M2.5x5) to secure the right display hinge to the system.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Heat sink
Removing the heat-sink for integrated graphics
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE:
The heat-sink may become hot during normal operation. Allow sufficient time for the heat-sink to cool before you
touch it.
NOTE: For maximum cooling of the processor, do not touch the heat-transfer areas on the heat-sink. The oils in your skin
can reduce the heat-transfer capability of the thermal grease.
The following image indicates the location of the heat-sink and provides a visual representation of the removal procedure.
Removing and installing Field Replaceable Units (FRUs)
59
