Delta DVP-SS2 User Manual

DVP-ES2/EX2/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-76
32-bit instruction:
1. If the operation result is “0”, the zero flag, M1020 will be ON.
2. If the operation result exceeds -2,147,483,648, the borrow flag M1021 will be ON.
3. If the operation result exceeds 2,147,483,647, the carry flag M1022 will be ON
-2 -1 0 -32,768、 、 、 、 、 -1
0 1 32,767012、、、
-2 -1 0 -2,147,483,648、 、 、 、 、 -1 0 1 2,147,483,647 0 1 2、、、

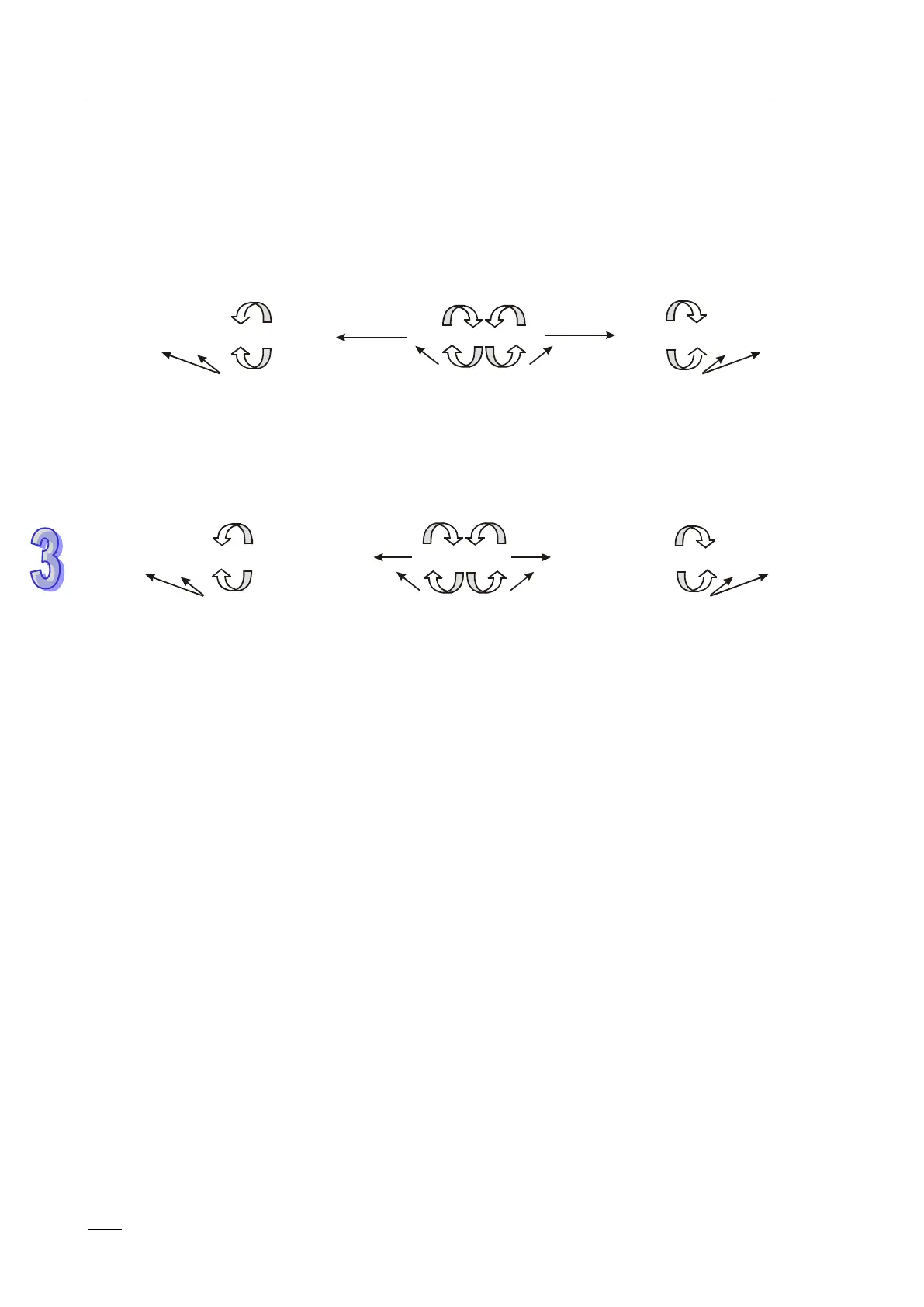

16-bit instruction:
Zero flag
Zero flag Zero flag
Borrow flag
the most significant bit
becomes 1 (negative)
32-bit instruction:
Zero flag Zero flag
Zero flag
the most significant bit
becomes 0 (positive)
Carry flag
Borrow flag
the most significant bit
becomes 1 (negative)
the most significant bit
becomes 0 (positive)
Carry flag

Delta DVP-SS2 Specifications

General

Type	PLC (Programmable Logic Controller)
Input Voltage	24 VDC
Number of Inputs	8
Number of Outputs	6
Programming Software	WPLSoft
Model/Series	DVP-SS2
Communication Ports	RS-232
Output Type	Relay
High-speed Counters	2 points, 10 kHz
Operating Temperature	0°C to 55°C
Humidity	5% to 95% RH, non-condensing
Dimensions	90 mm (H) x 60 mm (W) x 80 mm (D)
