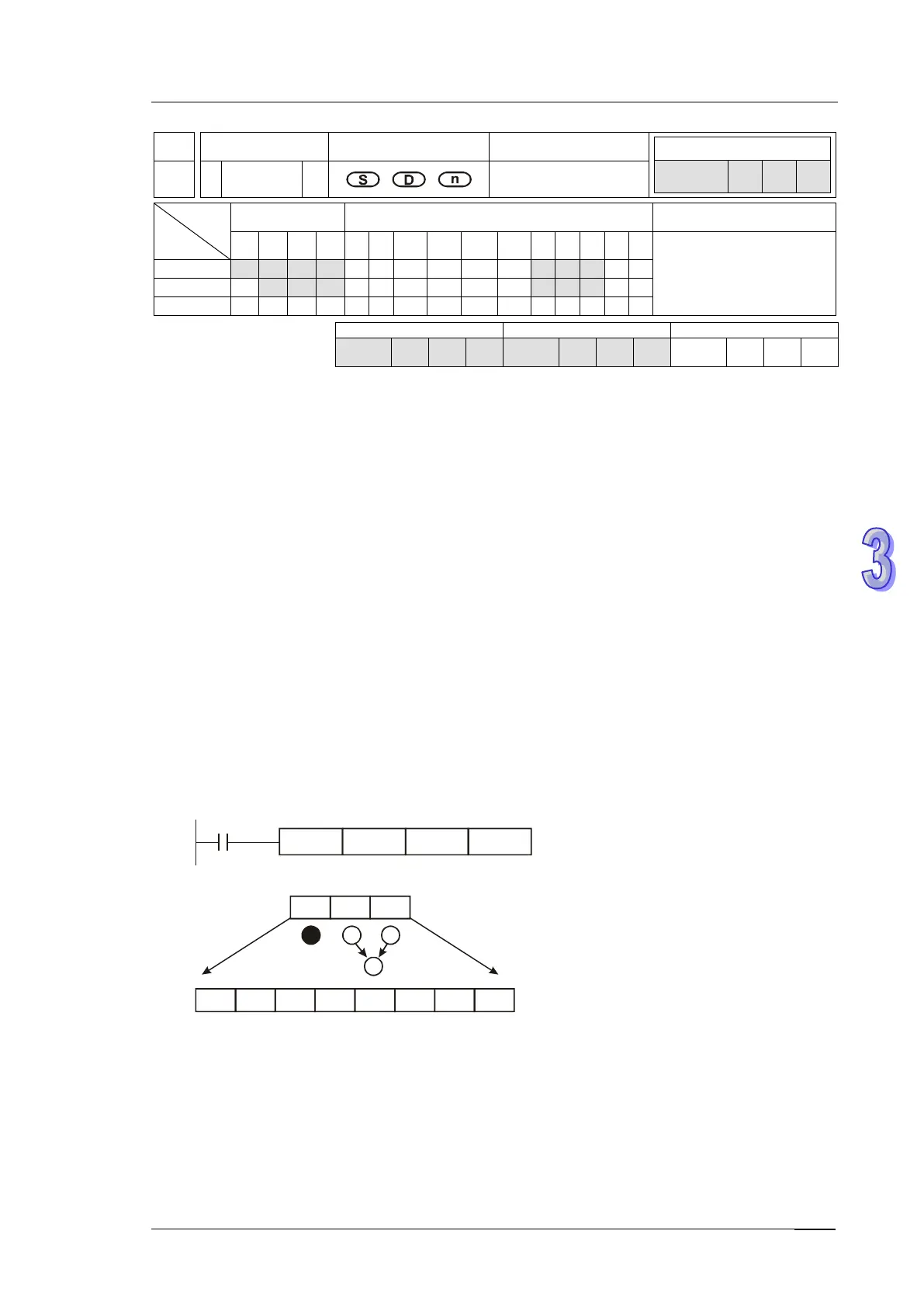

Delta DVP-SS2 User Manual

3. Instruction Set
3-111
API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
41 DECO P
Decode
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
DECO, DECOP: 7 steps
S
*
*
*
*
*
*
*
*
*
*
*
D
*
*
*
*
*
*
*
*
n
*
*
PULSE
16-bit
32-bit
ES2/EX2
/EC5
SS2
SA2
SE
SX2
ES2/EX2
/EC52
SS2
SA2
SE
SX2
ES2/EX2
/EC5
SS2
SA2
SE
SX2
Operands:
S: Source device to be decoded D: Device for storing the result n: Number of consecutive
bits of S
Explanation:
1. The instruction decodes the lower “n” bits of S and stores the result of “2
n
” bits in D.
2. This instruction is generally used in pulse execution mode (DECOP).
3. When operand D is a bit device, n = 1~8, when operand D is a word device, n = 1~4
Program Example 1:
1. When D is used as a bit device, n = 1 ~ 8. Errors will occur if n = 0 or n > 8.
2. If n = 8, the decoded data is 2
8
= 256 bits data.
3. When X20 goes from OFF to ON, the data of X0~X2 will be decoded to M100~M107.
4. If the source data is 3, M103 (third bit from M100) = ON.
5. After the execution is completed, X20 is turned OFF. The decoded results or outputs will retain
their operation.
DECOP X0 K3M100
X20
X2 X1 X0
M107 M106 M105 M104 M103 M102 M101 M100
0 1 1
1
0 0 0 0 0 0 0
3
7 6 5 4 2 1 0
4 1
2
3
