3
. Instr
uction Se
t
3
-
171
C. Y

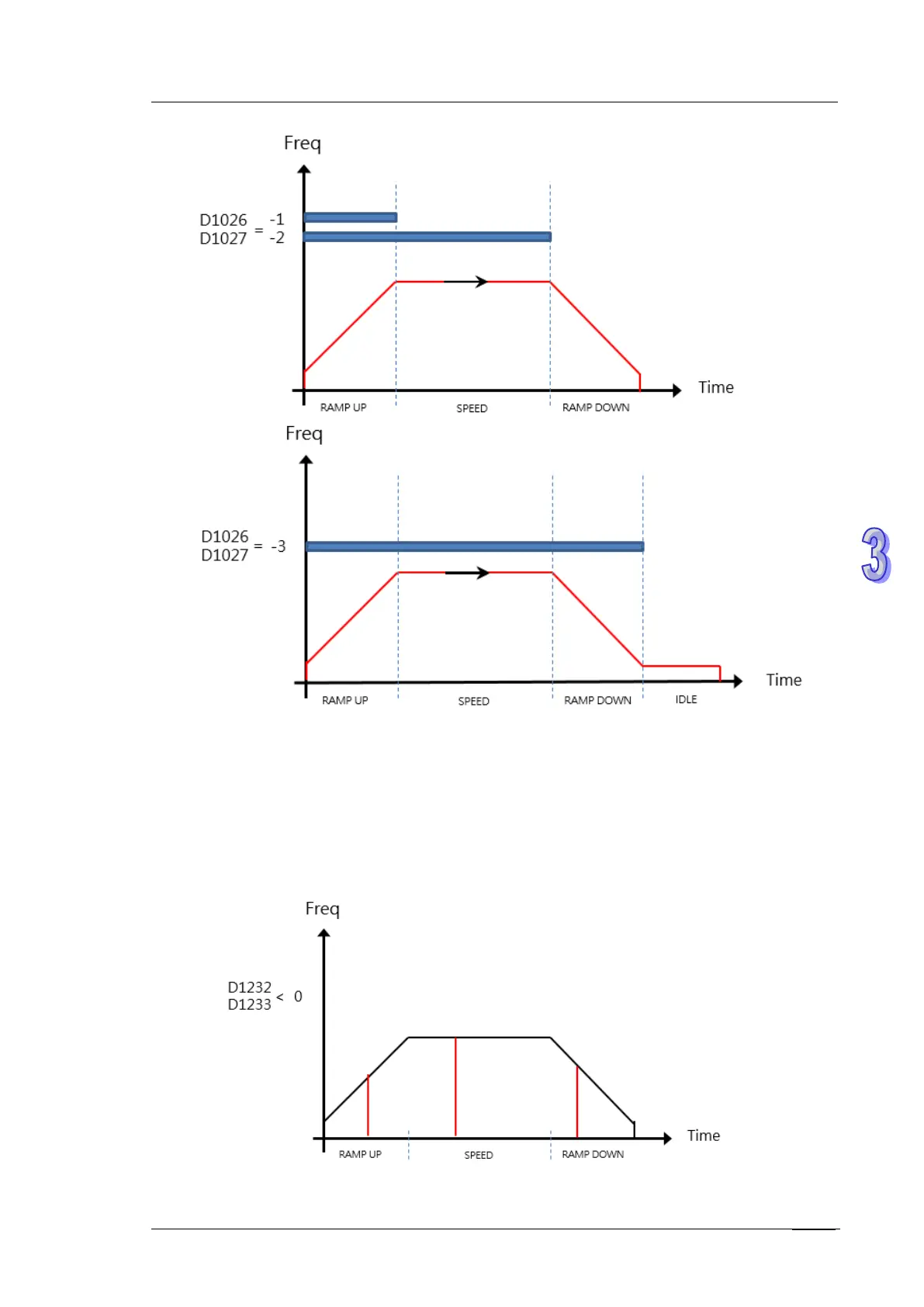

ou can set number of dec
eleration pulses after
marking to less than 0 (
<0) and when
marking is done, t
he output stopped imm
ediately
.
See the
Y0 example below
. If you set the number of decelerati
on pulses after marking t
o
less than 0 in D1232/
1233, the output stopped im
mediately after it recei
ved the signal,
whether it’
s in the area of acceler
ation, full
-
speed or decel
eration.
291
293
