DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
5-26
5. When S2 (auto mode) is initialized, i.e. selected, auto mode will NOT be executed if M1043 =
ON or any of the state between D
1
to D
2 I
is ON.
Program Example 2:
Robot arm control (by IST instruction):
1. Control purpose:
Select the big balls and small balls and move them to corresponding boxes. Configure the
control panel for each operation.
2. Motion of the Robot arm:
lower robot arm, clip balls, raise robot arm, shift to right, lower robot arm, release balls, raise
robot arm, shift to left to finish the operation cycle.

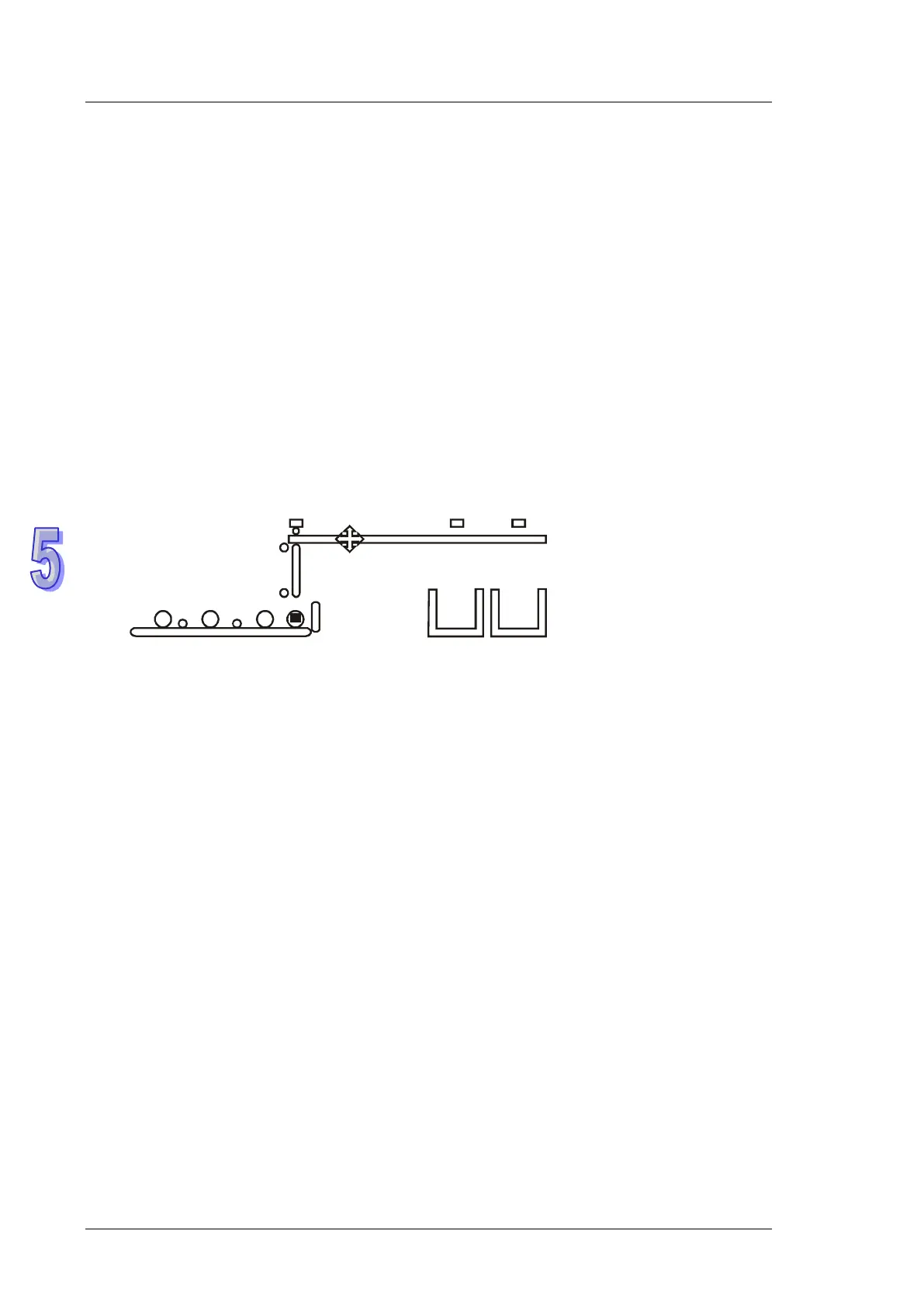

3. I/O Devices
Y0
Y1
Y2Y3
Left-limit X1
Upper-limit X4
Upper-limit X5
Right-limit X2
(big balls)
Right-limit X3
(small balls)
Big
Small
Ball size
sensor X0
4. Operation mode:
Single step: Press single button for single step to control the ON/OFF of external load.
Zero return: Press zero return button to perform homing on the machine.
Auto (Single step / One cycle operation / Continuous operation):
 Single step: the operation proceeds with one step every time when Auto ON is pressed.
 One cycle operation: press Auto ON at zero position, the operation performs one full cycle
operation and stops at zero point. If Auto OFF is pressed during the cycle, the operation will
pause. If Auto ON is pressed again, the operation will resume the cycle and stop at zero
point.
 Continuous operation: press Auto ON at zero position, the operation will perform continuous
operation cycles. If Auto OFF is pressed, the operation will stop at the end of the current
cycle.
