Dexter Laundry WCAD Series Parts & Service Manual

Model
Adjustable Final Spin Range
T300
60G to 100G
T350 60G to 200G
T400 60G to 100G
T450 or T450 SWD 60G to 200G
T600 60G to 100G
T750 60G to 200G
T900 60G to 100G
T950 60G to 200G
T1200 60G to 100G
T1450 60G to 200G
46 47
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
Bath Bath Cycle Time (min.) Water Temp Delay Fill Spin Time (min.)
Prewash 0 Cold Off 0
Wash 9 Warm Off 0
Extended Wash 0 n/a n/a n/a
Rinse 4 Cold Off 1
Final Rinse 5 Cold
Off
n/a
Extra Rinse Spin n/a n/a n/a 0
Extra Rinse Bath 0 Cold
Off
n/a
Final Extract Spin n/a n/a n/a 6
Cycles Option:
This option allows the user to set the bath time and spin time for the “Wash” bath. It also allows the user
to set bath time, water temperature and spin time for “Rinse” and “Final rinse” baths. (Water temperature
for the “Wash” bath is chosen by the customer using the “Hot”, “Warm” and “Cold” buttons on the front of
the machine). For the “Final Spin” it also allows the user to set the spin speed (see additional description
below).
It also allows the user to return the values to factory defaults. To reset all values in the Cycles option to
factory default, press “Enter” when the “DEFAULT” prompt is shown. Press “Enter” again when the “RESET”
prompt is shown to conrm the action.

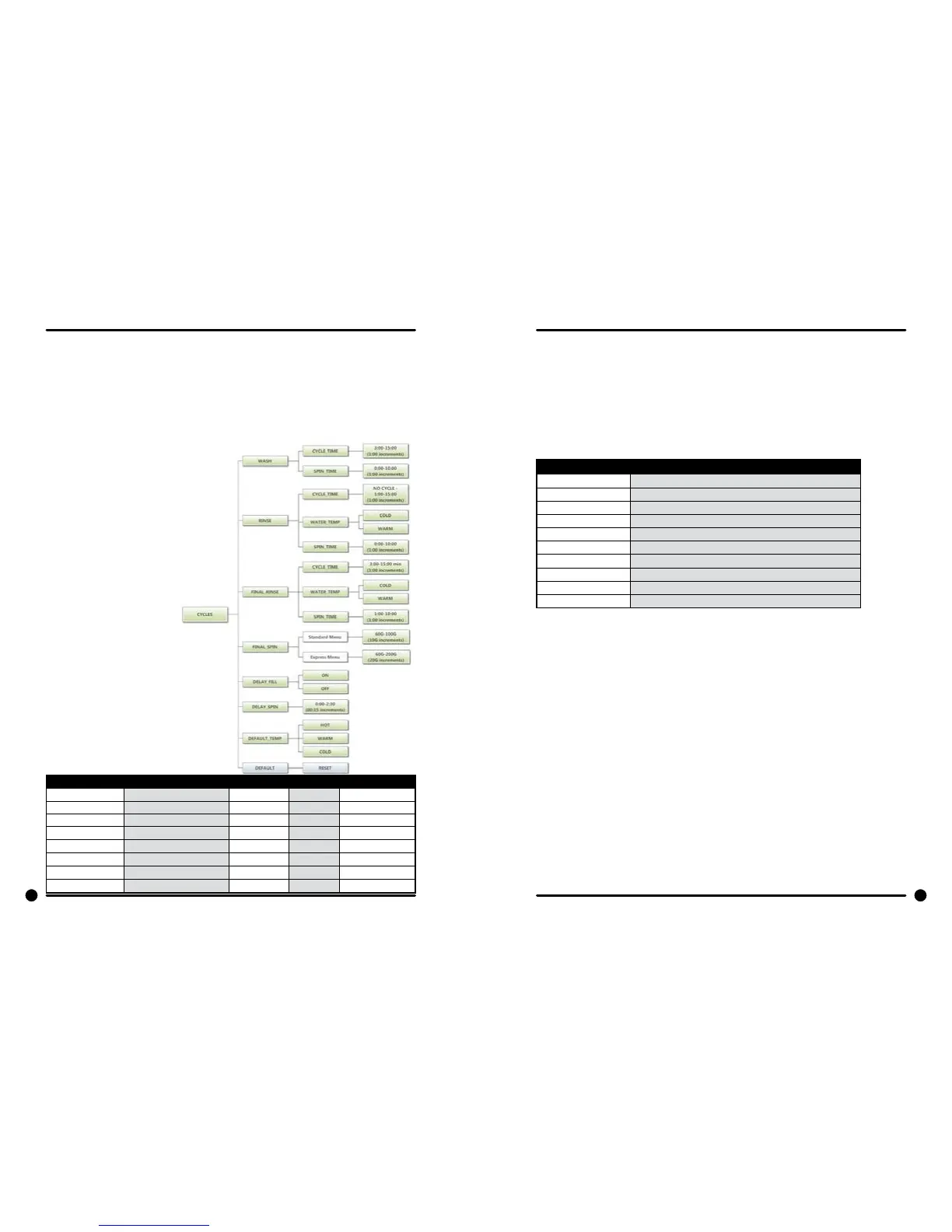

Figure 5, shown below, shows the sub
menu options for Cycles:
Final Spin:
The washer “Final Spin” is the spin that occurs after all selected baths & intermediate spins have been
completed. It is a higher spin speed then previously occurring intermediate spins. The benet of this higher
spin speed is that more water is extracted from the wash load, which minimizes the drying time needed.
However, in some cases, if the Dexter installation guidelines are not followed properly, it may be necessary
to reduce the spin speed of the “Final Spin”. The control allows for this to occur, based on the menu shown
above.
The Final Spin can be adjusted in increments of 10 G for washers with a 100G maximum spin speed and
increments of 20 G for washers with a 200G maximum spin speed. The factory default nal spin speeds are
the maximum values.
Delay Fill:
In some applications, the amount of available water pressure is limited. In these cases, the washer may not
be able to ll the tub in sufcient time to allow for effective washing performance. For this situation, the
control has a “Delay Fill” option that can be chosen based on the menus above.
When the Delay Fill option is “On”, the water valves shall be turned on, the washer shall agitate, but the
cycle time shall be paused. The washer shall continue in this state until the proper water level is reached.
Once the proper water level is reached, the cycle shall continue. A single selection of “On” or “Off” shall ap-
ply to all baths in the cycle. The factory default setting is “Off”.
Delay Spin:
In some applications, the amount of drain capacity is limited. In these cases the washer cannot empty the
tub in sufcient time to allow for a spin cycle to occur. For this situation, the control has a “Delay Spin” op-
tion that can be chosen based on the menus above.
When a time value (other than 0) is programmed for the Delay Spin option, the end of each bath will be
extended by the selected time. Therefore, extra time will be allowed for the drain valve to be open and
compensate for slow drain capacity. The factory default setting is 0 seconds.
Default Temp:
The “Default Temp” option allows the user to choose which water temperature (“Hot”, “Warm”, or “Cold”)
will be active during Idle mode. The customer can, of course, choose other temperatures for the wash bath
based on other options described in this manual.
