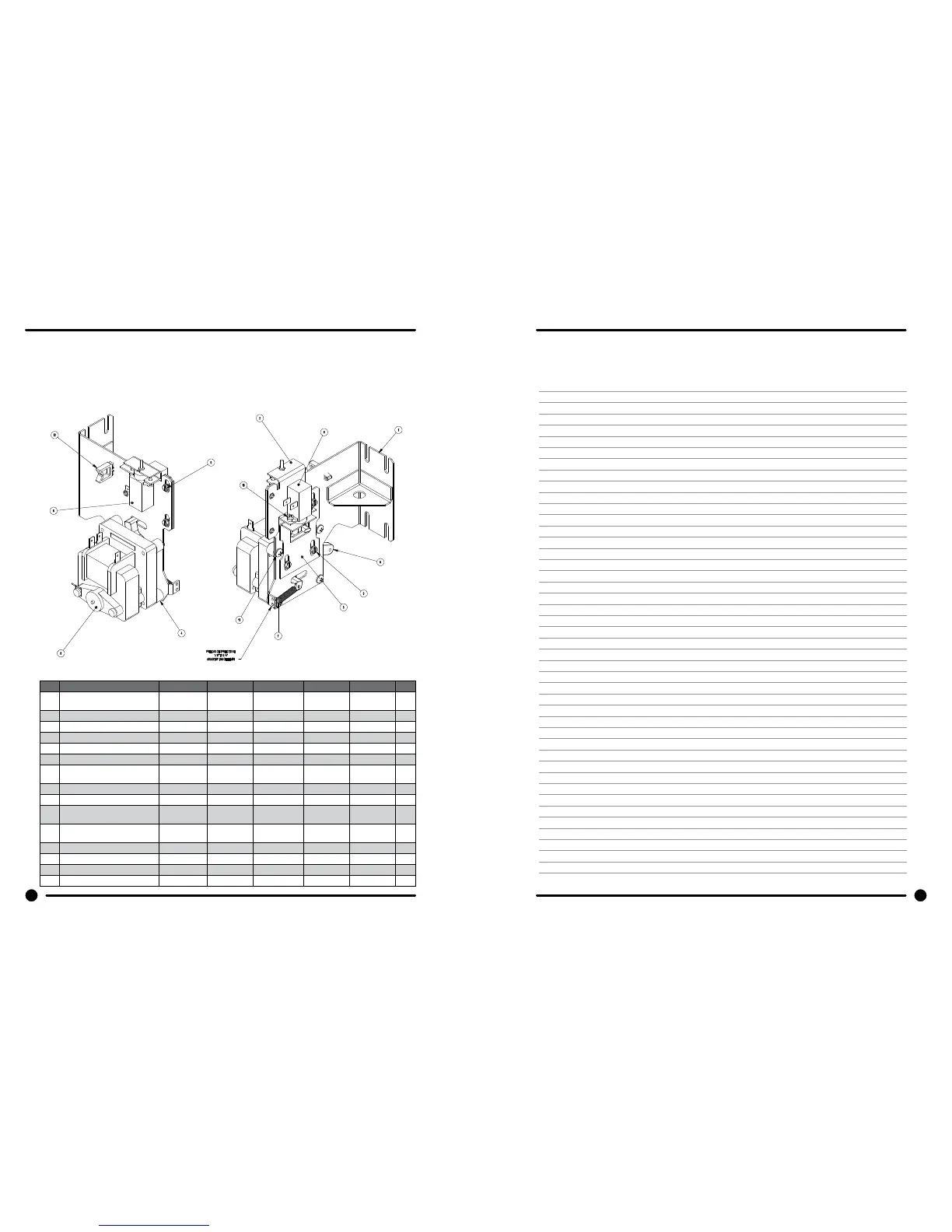

Key Description T300 T350 T400 T450 T600 QTY
* Actuator Assembly (Includes
1-10, Rod NOT included)
9892-015-001 9892-015-001 9892-015-001 9892-015-001 9892-015-001 1
1 Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 9985-190-001 9985-190-001 9985-190-001 1
2 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 9985-189-001 9985-189-001 9985-189-001 1
3 Bracket Slide Lock 9029-204-001 9029-20 4 - 001 9029-204-001 9 029 -204-001 9029-204-001 1
4 Spacer, Plastic 9538-157- 021 9538-157- 021 95 3 8-157-021 9538-157- 021 9538-157-021 4
5 Arm - Door Lock 9001-063-001 9001-063-001 9001-063-001 9001-063-001 9001-063-001 1
6 Thermoactuator - Door Lock
Relay 120v
9586-001-001 9586-001-001 9586-001-001 9586-001-001 9586-001-001 2
7 Spring - Extension 9534-350-001 9534-350-001 9534-350-001 9534-350-001 9534-350-001 1
8 Motor & Gear Assembly 120v 9914-137-015 9914-137-015 9914-137-015 9914-137-015 9914-137-015 1
9 Screw -Hxwshrhdslsems, 6-32
x 3/16
9545-044-003 9545-044-003 9545-044-003 9545-044-003 9545-044-003 6
10 Cross Recessed PAn Hd Tapping
screw
9545-031-011 9545-031-011 9545-031-011 9545-031-011 9545-031-011 4
11 Screw Pnhdcr, 10-32 UNFx0 .75 9545-012-029 9545-012-029 9545-012-029 9545-012-029 9545-012-029 4
12 Standoff-Wire 9527-007- 0 01 9527-007-001 9527-007- 001 9527-007-001 9527-0 07-001 1
* Rod, Door Lock 9497-225-011 9497-225-011 9497-225-012 9497-225-012 9497-225-010 1
* Harness, Door Lock/Drain, P17 9627-796-001 9627-796-001 9627-796-001 9627-796-001 9627-796-002 1
116 117
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
