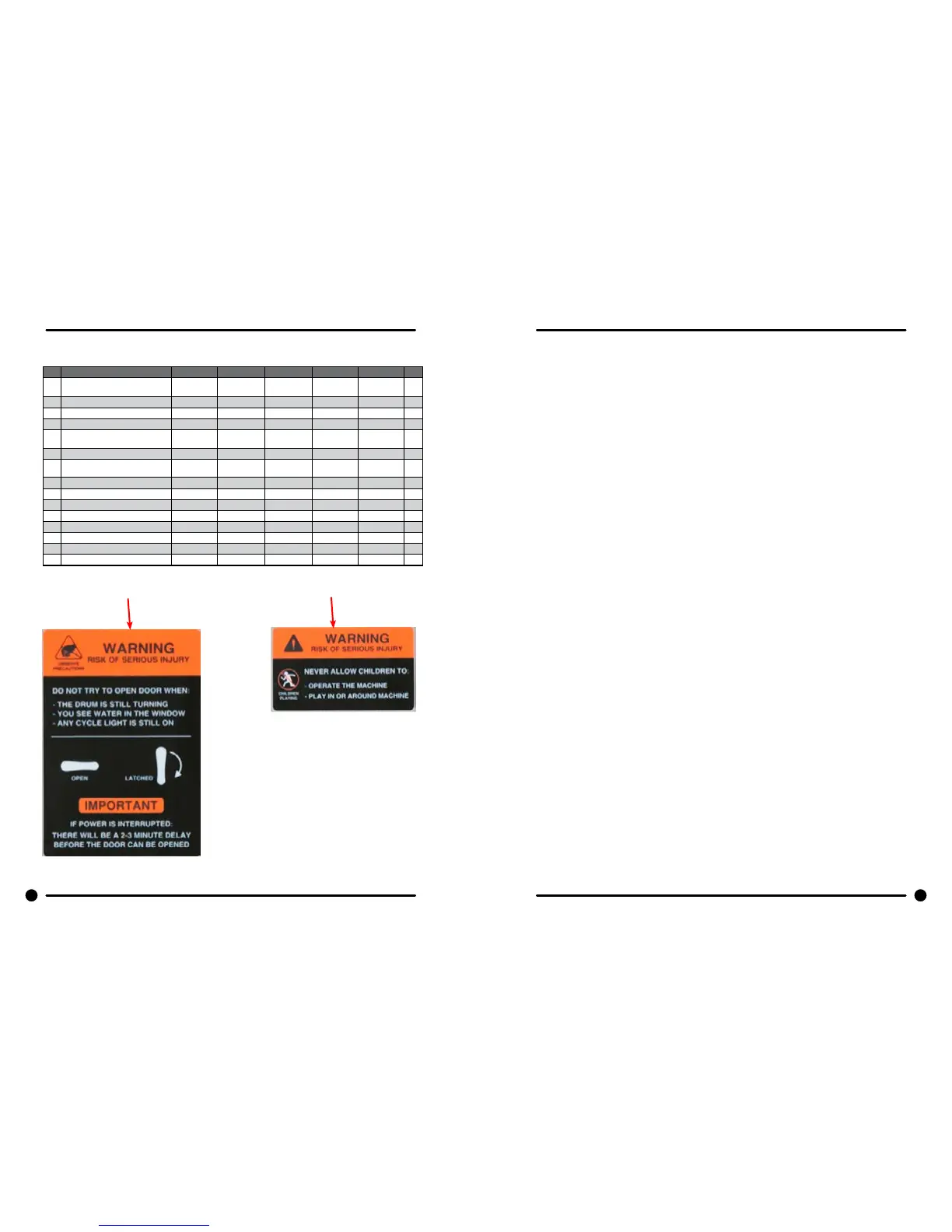

Labels and Diagrams All WCAD Models

Key Description T300 T350 T400 T45 0 T600 QTY

* Wiring Diagram and Schematic,

Coin(120 V)

9506-522-001 1

* Wiring Diagram and Schematic, Coin 9506-523-001 9506-525-001 9506-527-0 01 9506-529-001 9506-531-001 1

* Instructions Spin Direction 8507-273-001 8507-273-001 8507-274-001 8507-274-001 8507-274-001 1

* Transient Voltage Surge Suppressor

Infomational

8507-330-001 8507-330-001 8507-330-001 8507-330-001 8507-330-001 1

* Label High Voltage Warning 8502-614 - 004 8502-614- 0 0 4 8502-614 -004 8502-614- 0 0 4 8502- 614-004 1

Label Fusing & Installation

(-10 M ode l )

8502-619-003

* Label Fusing & Installation 8502-619-004 8502-619-004 8502-619-004 8502-619-004 8502-619-004 1

* Label Quality 8511-001- 002 8511-001- 0 02 8511- 0 01-002 8511-0 01-002 8511-001-002 1

1 Label, Door Opening-Blue 8502-757-002 8502-757-002 8502-757-002 8502-757-002 8502-757-002 1

1 Label, Door Opening-Black 8502-7 5 7-0 01 85 0 2-757- 001 8502-757- 001 8502-757- 0 01 85 02-757- 001 1

2 Label, Warning Risk of Injury-Blue 8502-759-002 8502-759-002 8502-759-002 8502-759-002 8502-759-002 1

2 Label, Warning Risk of Injury-Black 8502-759 - 001 8 5 0 2-759- 0 01 8502-759 - 001 8502-759-0 01 8 502-759- 0 01 1

1 Manual-Operators 8514 -223-001 8514-224-001 8514 -225-001 8514-226-001 8514 -227- 0 01 1

132 133

Part # 8533-080-001 12/15 Part # 8533-080-001 12/15

132 133

Section 9:

Coin Handling

Parts:

Wiring Diagrams

& Schematics &

maintenance Procedures
