Dexter Laundry WCAD Series Parts & Service Manual

1
3
4
5
6
7
8
12
10
11
9
13
11
14
12
17
18
12
21
19
17
16

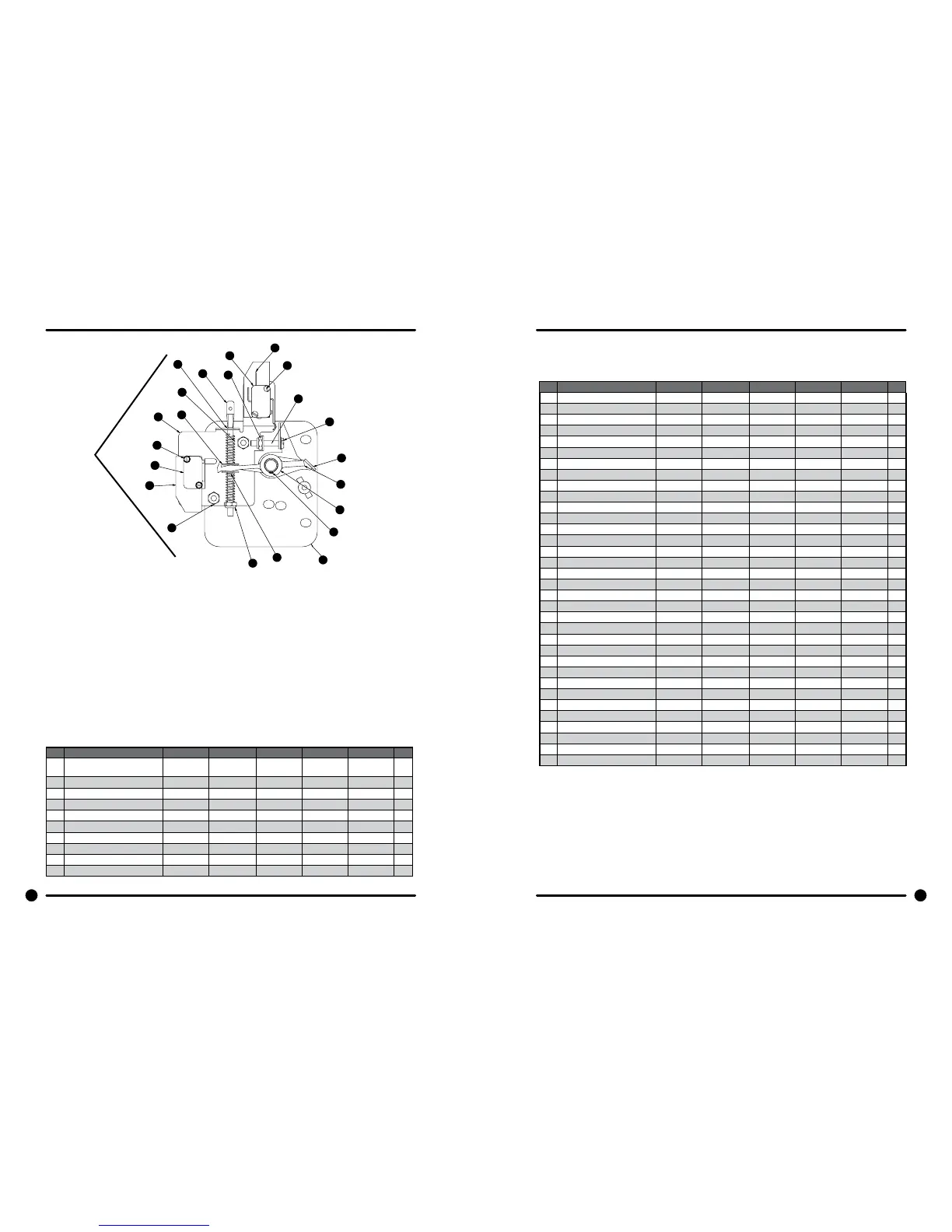

Door Lock Part # by Model
33
Key Description T300 T350 T400 T450 T600 QTY
33 Lock Assy, Complete (#1-22)
(includes #1 thru #22)
9885-024-001 9885-024-001 9885-024-001 9885-024-001 9885-024-001 1
1 Plate Assy, Door Lock 9982-346-001 9982-346-001 9982-346-001 9982-346-001 9982-346-001 1
2 Washe r, F l a t 8641-581- 030 8641-581- 030 8641-5 81-030 8641-5 81-030 86 41-581- 030 1
3 Actuator, Latching Switch 9008-005-001 9008-005-001 9008-005-001 9008-005-001 9008-005-001 1
4 Pawl, Locking 9450-002-004 9450-002-004 9450-002-004 9450-002-004 9450-002-004 1
5 Washer, Spring 8641-569-003 8641-569-003 8641-569-003 8641-569-003 8641-569-003 1
6 Ring, Retaining 9487-200-004 9487-200-004 9487-200-004 9487-200-004 9487-200-004 1
7 Bracket Switch 902 9 -163- 0 01 9 02 9 -163- 0 01 9029-163-001 9029-163-0 01 9029-16 3 -001 1
8 Nut, Hex 10-32 UNF 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 2
9 Spring, Actuating 9534-364-002 9534-364-002 9534-364-002 9534-364-002 9534-364-002 1
Key Description T300 T350 T400 T450 T600 QTY
10 Screw, Hx. 10-32 x 1” 9545-012-020 9545-012-020 9545-012-020 9545-012-020 9545-012-020 1
11 Nut, Elastic Stop 10-32 8640-413-004 8640-413-004 8640-413-004 8640-413-004 8640-413-004 2
12 Spring, Return 9534-364-001 9534-364-001 9534-364-001 9534-364-001 9534-364-001 2
13 Pin, Guide 9451-193-001 9451-193-001 9451-193-001 9451-193-001 9451-193-001 1
14 Ring, Retaining 9487-200-005 9487-200-005 9487-200-005 9487-200-005 9487-200-005 1
15 Washer 8641-581- 031 8641-581-031 8 6 41-581-031 8 6 41-581- 031 8641-581-031 1
16 Switch, Latching Sensing 9539-461-008 9539-461-008 9539-461-008 9539-461-008 9539-461-008 1
17 Shield, Switch 9550-169-003 9550-169-003 9550-169-003 9550-169-003 9550-169-003 3
18 Screw 4-40 x 5/8” 9545-020-001 9545-020-001 9545-020-001 9545-020-001 9545-020-001 2
18 Nut, Twin 8640-401-001 8640-401-001 8640-401-001 8640-401-001 8640-401-001 1
19 Switch, Locking Sensing 9539- 4 61-007 9539- 4 61-007 9539- 4 61-007 9539- 4 61-007 9539-461- 007 2
20 Actuator, Switch Locking 9008-006-003 9008-006-003 9008-006-003 9008-006-003 9008-006-003 1
21 Screw 4-40 x 1 1/8” 9545-020-003 9545-020-003 9545-020-003 9545-020-003 9545-020-003 2
21 Nut, Twin 4-40 8640-401-001 8640-401-001 8640-401-001 8640-401-001 8640-401-001 1
22 Pin, Dowel 9451-181-0 0 4 9451-181-004 9 451-181- 0 04 9 451-181- 0 0 4 9451-181-004 1
* Shim, Door Lock, Thin 9552-037-001 9552-037-001 9552-037-001 9552-037-001 9552-037-001 AR
* Screw, Lock mtg 1/4”-20 x 3/4” 9545-018-004 9545-018-004 9545-018-004 9545-018-004 9545-018-004 3
* Lockwasher 1/4” Ext tooth 86 41-582- 0 07 8 6 41-582- 0 07 8641-582-007 8641-582-007 8641-582- 007 3
* Harness Door-Switches, P4 9627-791-0 0 3 9627-7 91- 003 9 6 27-791- 003 9627-791- 0 03 9627-791- 0 03 1
Switch, Door Hinge 9539-492-001 9539-492-001 9539-492-001 9539-492-001 9539-492-001 1
Wire Assy, Red 8220-063-025 8220-063-025 8220-063-025 8220-063-025 8220-063-025 1
Wire Assy, Black 8220-063-026 8220-063-026 8220-063-026 8220-063-026 8220-063-026 1
Door Lock Part # by Model Contuied
114 115
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
114 115
