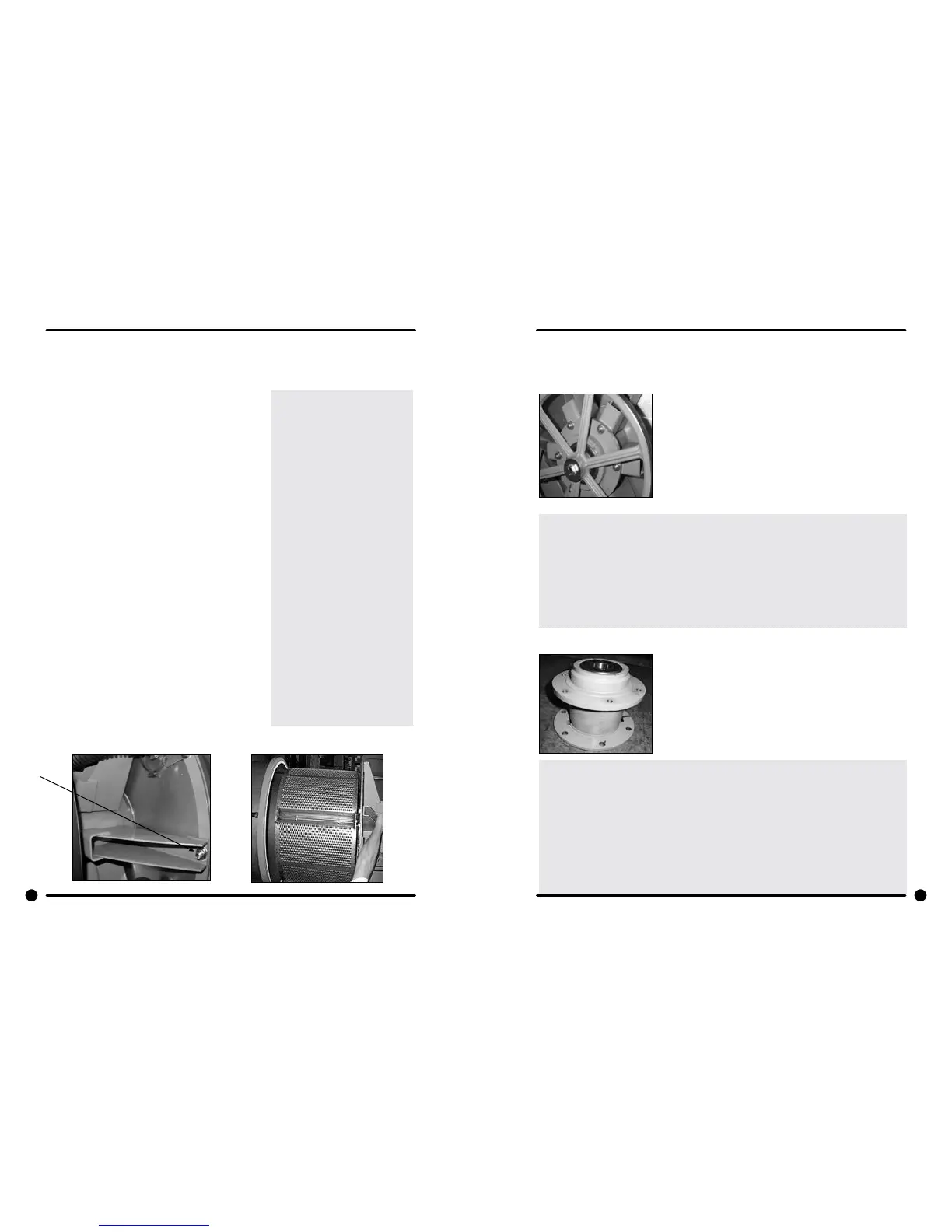

Tub Back, Bearing and Cylinder Assembly
Basket assembly T-300, T-350, T-400, T450, T-600
Reassembly
Reverse the procedures to the left
paying attention to the following
areas
Step 1: Lay the washer on its front.
Note: Put a thick pad across
the front of the washer,
above the door, to protect
the handle and coin acceptor.
Step 2: Make sure the bearing
housing weep holes are
located at 12 o’clock and 6
o’clock.
Step 3: Clean the silicone rubber
from the back of the outer
tub and the perimeter of
the tub back where the two
meet. There is no gasket in
this area.
Step 4: Apply a new bead of silicone
rubber around the back of
the outer tub. (see picture)
Step 5: Lower the tub back, bearing
and cylinder assembly into
the washer outer tub.
Step 6: Torque all bolts according to
the following charts.
Step 7: Use a puller to remove the
pulley from the shaft.
Removal
Step 1: Remove the top and back panel as described.
Step 2: Move the rear channel, that the water valves mount to,
forward by removing the ve mounting screws.
Step 3: Remove the drive belt.
Step 4: Remove the overow hose, tub ll hose and pressure
switch hose from the back of the tub.
Step 5: Mark the tub back and bearing assembly for ease in
assembly later. (see picture)
Step 6: Remove the 12 bolts and nuts from the perimeter of
the tub back clamp ring. (Two of the twelve bolts are
longer and go through the thicker part of the brace
where it connects to the frame.)
Step 7: Remove the 2 bolts that fasten the clamp ring to the
frame.
Step 8: The entire tub back and cylinder assembly may be
lifted out of the tub (it may be necessary to break the
adhesion of the silicone that seals the tub back to the
tub). Blocks should be placed under the edges of the
cylinder before setting it down to prevent damage to
the cylinder ange.
Basket Pulley, Bearing Housing, Water Seals
and Tub Back
The cast iron basket pulley is retained by a bolt, locking washer and a at washer.
Removal
Step 1: Insert a large screw driver or punch through a spoke in the pulley
into the bearing housing support. This keeps the pulley from
turning.
Step 2: Remove the retaining bolt, lockwasher and at washer and
reinstall just the bolt
Step 3: Use a puller to remove the pulley from the shaft. Watch for
tolerance ring.
Removal of Bearing Housing From Basket Shaft, Bearings and Water Seals
Step 1: To remove the tub back assembly, the 6 bolts attaching it to the
bearing housing must be removed.
Step 2: Remove water seals from the seal mounting plate on the cylinder
shaft. These are removed with your ngers.
Step 3: The retaining ring next to the front bearing must also be
removed.
Step 4: The bearings are pressed into the housing and must be pressed
back out.
Reassembly
Step 1: Make sure that the tolerance ring is in place inside the pulley.
Step 2: The shoulder inside the pulley that holds the tolerance ring should face the back of the washer
when installed correctly.
Step 3: Use a stack of at washers and a longer bolt to press the pulley onto the basket shaft.
Step 4: Reinstall the retaining bolt, lock washer and at washer. The shaft end bolt with washer should be
installed with a torque value listed in charts in this manual.
Reinstallation onto Basket Shaft
Step 1: Carefully set the assembly over the shaft engaging the bearings and bearing spacer.
Step 2: The tolerance ring that ts inside the pulley should be placed in position (see Basket Pulley
Reassembly for correct positioning).
Step 3: The pulley should then be started onto the shaft. A stack of at washers and a longer pulley bolt
will be required to pull the basket shaft through the bearings and pulley.
Step 4: Install the shaft end bolt with washers and torque to specications in Bolt Torque Chart.
Step 5: See Tub Back, Bearing and Cylinder Assembly for installation of complete assembly back into
washer.
80 81
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
