Dexter Laundry WCAD Series Parts & Service Manual

1
2
6
5 4
3
13
12
11
7
9
10
14
8
9

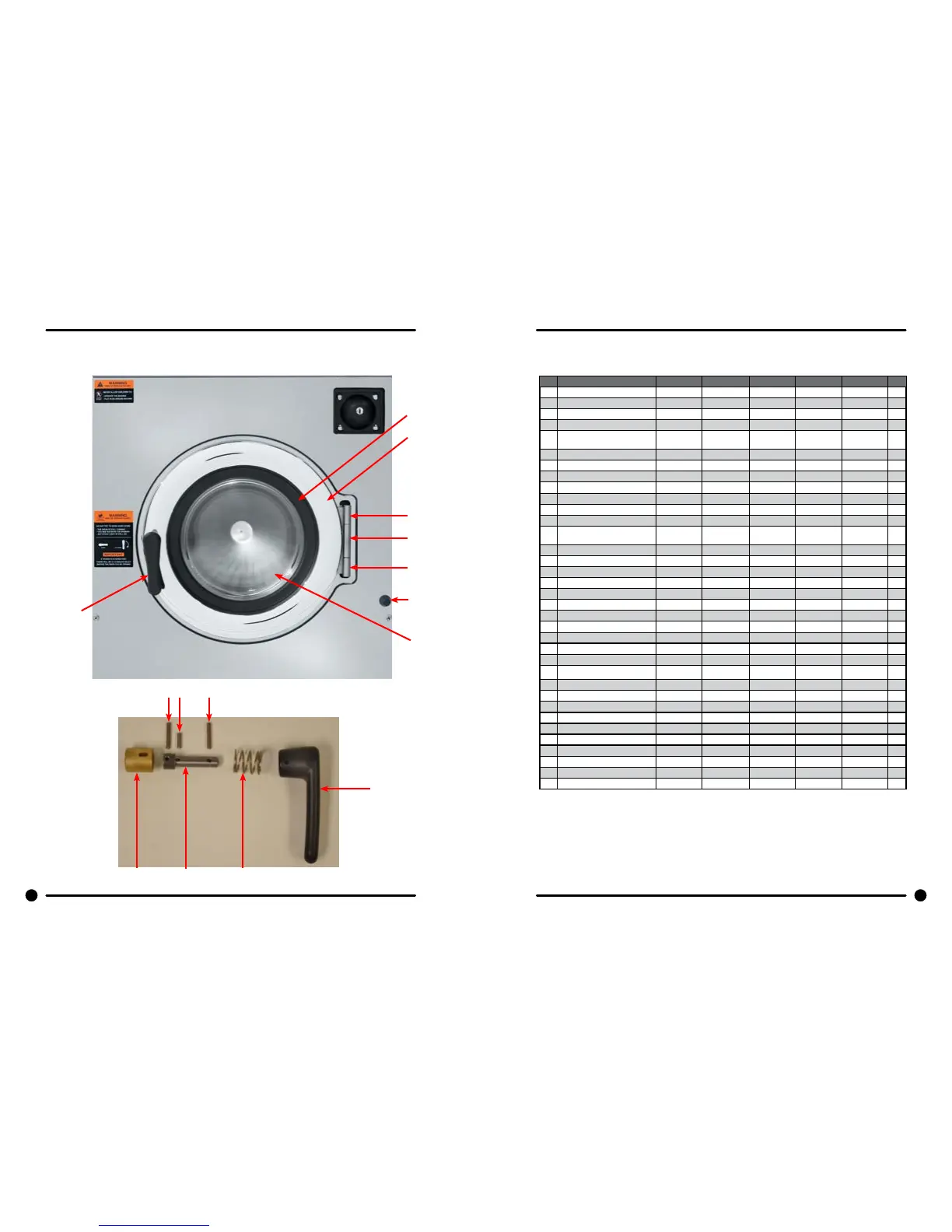

Loading Door Part # by Model
Key Description T300 T350 T40 0 T450 T600 QTY
* Loading Door, Complete #1-10 9960-308-001 9960-308-001 9960-309-001 9960-309-001 9960-309-001 1
1 Loading Door, Ring 9487-264-002 9487-264-002 9487-265-002 9487-265-002 94 87-265-002 1
2 Gasket, Loading Door 9206- 411-002 9206-411-001 9206-419-001 9206-419-001 9206-419-001 1
3 Window, Loading Door 9635-018-001 9635-018-001 9635-016-001 9635-016-001 9635-016-001 1
* Shaft Assy, Locking (includes 4
thru 7)
9913-134-003 9913-134-003 9913-134-003 9913-134-003 9913-134-003 1
4 Shaft, Door Locking 9537-195-002 9537-195-002 9537-195-002 9537-195-002 9537-195-002 1
5 Cam, Locking 9095-040-002 9095-040-002 9095-040-002 9095-040-002 9095-040-002 1
6 Pin, Groove (1 1/4) 9451-181-005 9 451-181- 0 05 9451-181-005 9451-181-005 9451-181-0 05 1
7 Pin, Groove (3/4) 9451-181- 004 9451-181-004 9 451-181- 0 04 9 451-181- 0 0 4 9451-181-004 1
8 Spring, Lock Cam 9534-360-002 9534-360-002 9534-360-002 9534-360-002 9534-360-002 1
9 Handle, Door 9244-091-001 9244-091-001 9244-091-001 9244-091-001 9244-091-001 1
10 Pin, Door Handle (groove) 9451-181-005 9451-181-0 05 9451-181-005 9451-181- 005 9451-181-005 1
11 Door Hinge Assembly Mounts to
Tub Front
9955-030-001 9955-030-001 9955-030-001 9955-030-001 9955-030-001
* Shim, Loading Door Hinge (Thin) 9552-036-001 9552-036-001 9552-036-001 9552-036-001 9552-036-001 2
* Screw, 5/16-18x3/4 9545-014-009 9545-014-009 9545-014-009 9545-014-009 9545-014-009 3
* Lock Washer, 5/16 8641-5 82-009 8 6 41-582- 0 09 8641-582-009 8641-582-009 86 41-582- 009 3
12 Leaf Assembly-Hinge, Top 9845-008-001 9845-008-001 9845-008-001 9845-008-001 9845-008-001 1
13 Leaf Assembly-Hinge, Bottom 9845-005-002 9845-005-002 9845-005-002 9845-005-002 9845-005-002 1
* Screw, 5/16x5/8 9545-056-002 9545-056-002 9545-056-002 9545-056-002 9545-056-002 3
14 Bumper-Loading Door 9051-055-001 9051-055-001 9051-055-001 9051-055-001 9051-055-001 1
* Nut, 1/4, 20UNC, 2B 8640-414-006 8640-414-006 8640-414-006 8640-414-006 8640-414-006 1
118 119
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
118 119
