Dexter Laundry WCAD Series Parts & Service Manual

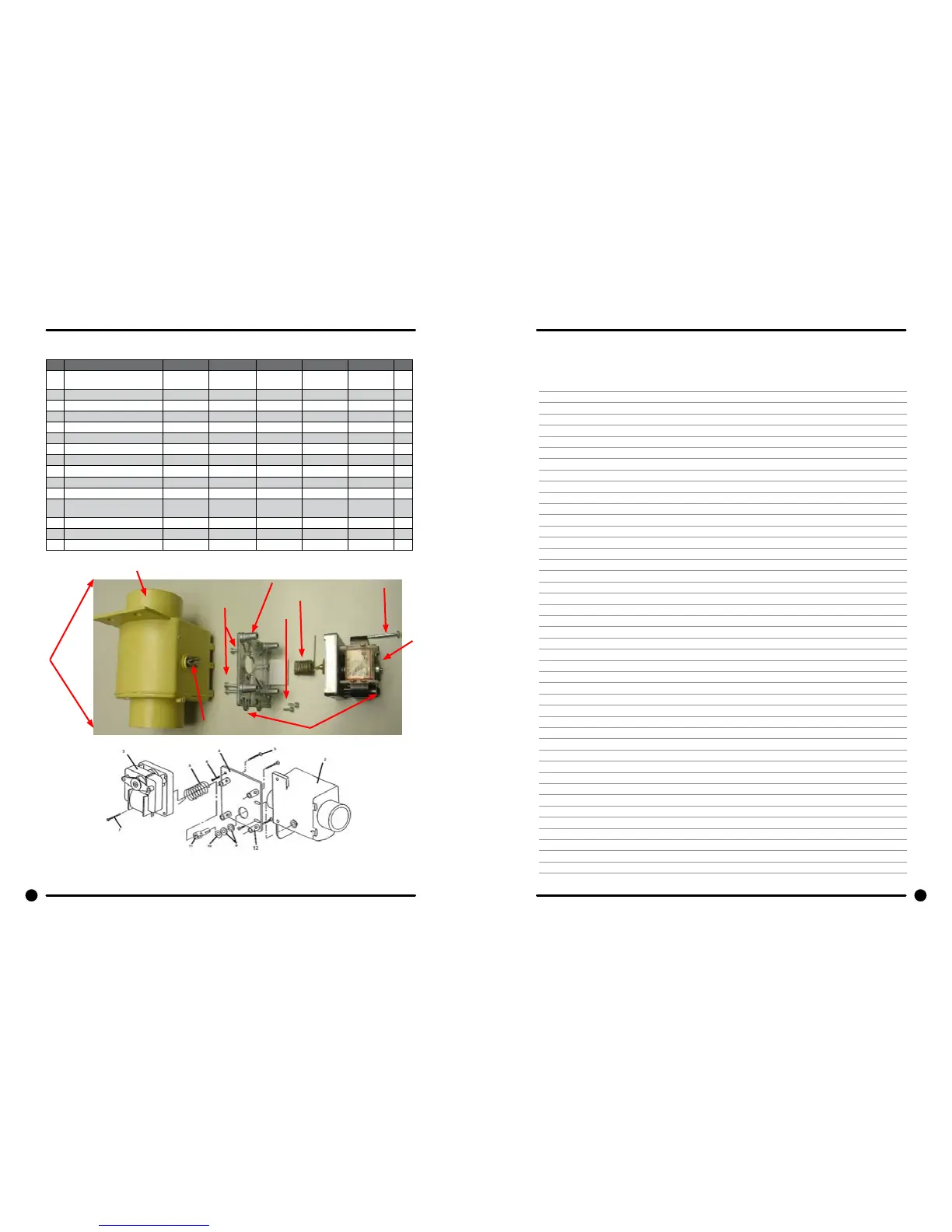

Drain Valve Group Part # by Model
Key Description T300 T350 T400 T450 T600 QTY
1 Valve, Drain (includes #2 thru
#11)
9379-199-001 9379-199-001 9379-200-001 9379-200-001 9379-200-001 1
2 Body, Valve (w/ball) 9064-068-002 9064-068-002 9064-070-001 9064-070-001 9064-070-001 1
3 Motor & Gear Train (complete) 9914-137-020 9914-137-020 9914-137-017 9914-137-017 9914-137-017 1
4 Plate, Motor Mtg 9452-538-001 9452-538-001 9452-538-001 9452-538-001 9452-538-001 1
5 Screw 8639-994-001 8639-994-001 8639-994-001 8639-994-001 8639-994-001 3
6 Spring, Drive 9534-340-001 9534-340-001 9534-339-001 9534-339-001 9534-339-001 1
7 Screw 9545-054-001 9545-054-001 9545-054-001 9545-054-001 9545-054-001 2
8 Screw 9545-054-002 9545-054-002 9545-054-002 9545-054-002 9545-054-002 1
9 Seal, V Packer 9532-134-001 9532-134-001 9532-134-001 9532-134-001 9532-134-001 2
10 Washer 8641-584-001 8641-584-001 8641-584-001 8641-584-001 8641-584-001 1
11 Pin, Main Drive 9451-196-001 9451-196-001 9451-196-001 9451-196-001 9451-196-001 1
12 Plate (spacers needed for re-
placement motor mtg. plate)
9538-149- 0 01 9538-149- 0 01 9538 -14 9 -001 9538 -149-0 01 9538-149 - 001 4
13 Stator and Coil Assembly 9089-036-004 9089-036-004 9089-036-004 9089-036-004 9089-036-004 1
9, 10, 11
8
13
1
2
3
4
5
6
7
122 123
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
122 123
Notes
