Dexter Laundry WCAD Series Parts & Service Manual

Key Description T300 T350 T4 0 0 T450 T600 QTY
1 Trough Assy,Controls 120 Volt
(all parts below 7-28 & trough)
9857-200-001 1
1 Trough Assy,Control 208-240 volt
(all parts below 7-28 & trough)
9857-200-002 9857-201-001 9857-202-001 9857-203- 0 01 9857-204-001 1
* Trough only 9839-018-001 9839-018-001 9839-018-001 9839-018-001 9839-018-001 1
* Screw, Trough Sides 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Lockwasher Exttooth #10 8641-582-006 8641-582-006 8641-582- 006 8 6 41-582- 0 06 8641-582-0 0 6 4
2 Angle Support Trough 9003-337-001 9003-337-001 9003-337-001 9003-337-001 9003-337-001 1
* Screw, Trough Bracket 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 3
3 Screw GRN. #10-32x 1/2” 8639 - 621-007 8639- 621-007 8639 - 621-007 8639- 621-007 8639-621- 0 07 1
* Lockwasher #10 8641-582-00 6 8641-582-0 0 6 8641-582-006 8641-58 2-006 86 41-582- 0 06 1
4 Transformer, Control 208/240
(Secondary Voltage to 115 volts)
8711-004-001 8711-004-001 8711-004-001 8711-004-001 8711-004-001 1
5 Screw, Mtg #8Bx1/4” 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Lockwasher 8 6 41-582- 0 06 86 41-582- 0 0 6 8641-582-006 8641-582-006 86 41-582- 006 4
6 Wire Assy-BLK/RED, 8 1/2” 8220-001-230 8220-001-230 8220-001-230 8220-001-230 8220-001-230 1
7 Wire Assy-BLK/BLUE, 8 1/2” 8220-001-231 8220-001-231 8220-001-231 8220-001-231 8220-001-231 1
8 Terminal Block Assy, POWER 9897-026-004 9897-026-004 9897-026-004 9897-026-004 9897-026-004 1
* Screw, Mtg 8Bx3/8” 9545-045-012 9545-045-012 9545-045-012 9545-045-012 9545-045-012 2
9 Wire Assy, RED, #36, 7” 9631-381-018 9631-3 81-018 9631-381- 018 9631-381-018 9631-381-018 3
10 Fuse Holder 9200-001-002 9200-001-002 9200-001-002 9200-001-002 9200-001-002 1
* Fuse 1.5 amp 8636-018-001 8636-018-001 8636-018-001 8636-018-001 8636-018-001 1
* Label Fuse 1.5 amp 8502-716- 0 01 8 5 02-716 -001 8502-716-0 01 85 02-716 - 001 85 0 2-716 -001 1
11 PCB assembly Relay Main 9473-006-001 9473-006-001 9473-006-001 9473-006-001 9473-006-001 1
* Support-PCB, 3/8 Edge Holding 9548-285-001 9548-285-001 954 8-285-001 9548-285- 0 01 9548 -285- 0 01 4
12 Harness Drain/Therm/Sol, P17 9627-796-001 9627-796-001 9627-796-001 9627-796-001 9627-796-002 1
13 Screw GRN. #10-32x 1/2” 9545-008-027 9545-008-027 9545-008-027 9545-008-027 9545-008-027 1
* Lockwasher #10 8641-582-00 6 8641-582-0 0 6 8641-582-006 8641-58 2-006 86 41-582- 0 06 1
* Lug, Grounding 8652-130-037 8652-130-037 8652-130-037 8652-130-037 8652-130-037 1
14 Harness P19/Water Valve 9627-795-003 9627-795-003 9627-795-003 9627-795-003 9627-795-004 1
15 Harness P8/P16 9 627-794 -001 9627-794- 001 9 6 2 7-794 - 001 9627-7 94- 0 01 9 6 27-794 - 001 1
16 Harness P20/P21 9627-7 93 - 001 9627-793- 0 01 9627-793- 001 9 627-793-0 01 9627-793-0 01 1
17 Bushing , Wire 7/8 9053-067-002 9053-067-002 9053-067-002 9053-067-002 9053-067-002 2
18 Standoff Twistlock 9527-002-002 9527-002-002 9527-002-002 9527-002-002 9527-002-002 4
19 Switch, Pressure 9539-457-002 9539-457-004 9539-457-003 9539-457-004 9539-457-003 1
* Screw, Mtg #8Bx1/4” 9545-045-001 9545-045-001 9545-045-001 9545-045-001 9545-045-001 2
20 Harness P5/Pressure -10 9627-908-001
21 Harness P5/Pressure 9627-908-002 9627-908- 003 9627-908-004 9627-908-005 9627-908-007 1
* Harness Doorlock, Switch P4/P15 9 627-791-0 0 3 9627-7 91- 003 9 6 27-791- 003 9627-791- 0 03 9627-791- 0 04 1
22 Transformer, (Step Down)120VAC
/ 24 VAC 50/60hz
8711-009-004 8711-009-004 8711-009-004 8711-009-004 8711-009-004 1
23 Screw, Transformer #10Bx1/2” 9545-045-001 9545-045-001 9545-045-001 9545-045-001 9545-045-001 2
* Lockwasher #10 exttooth 8641-582-005 8641-582-005 86 41-582- 0 05 8 6 41-582- 0 05 8641-582-005 2
24 PCB assembly Control /Display 9473-010-001 9473-010-001 9473-010-001 9473-010-001 9473-010-001 1
* Kit-Pressure Sensor, Electronic 9732-314-001 9732-314 - 001 9732-314-001 9732-314 -001 9732-314-001 1
25 Kit-Repaacement, Pressure Sen-
sor (only)
9732-315-001 9732-315-001 9732-315-001 9732-315-001 9732-315-001 1
* Support-PCB, 3/8”, Edge Holding 9458-285-001 9458-285- 0 01 9458-285-001 9458-285-001 9458-285-001 1
26 Transformer-120/18VAC, 5 VA 8711-015-001 8711-015-001 8711-015-001 8711-015-001 8711-015-001 1
27 Screw, 8B x 1/4 9545-045-001 9545-045-001 9545-045-001 9545-045-001 9545-045-001 1
* Wire Assy BLK/BLU 8220-001-233 8220-001-233 8220-001-233 8220-001-233 8220-001-233 1
* Wire Assy RED/BLU 8220-001-232 8220-001-232 8220-001-232 8220-001-232 8220-001-232 1

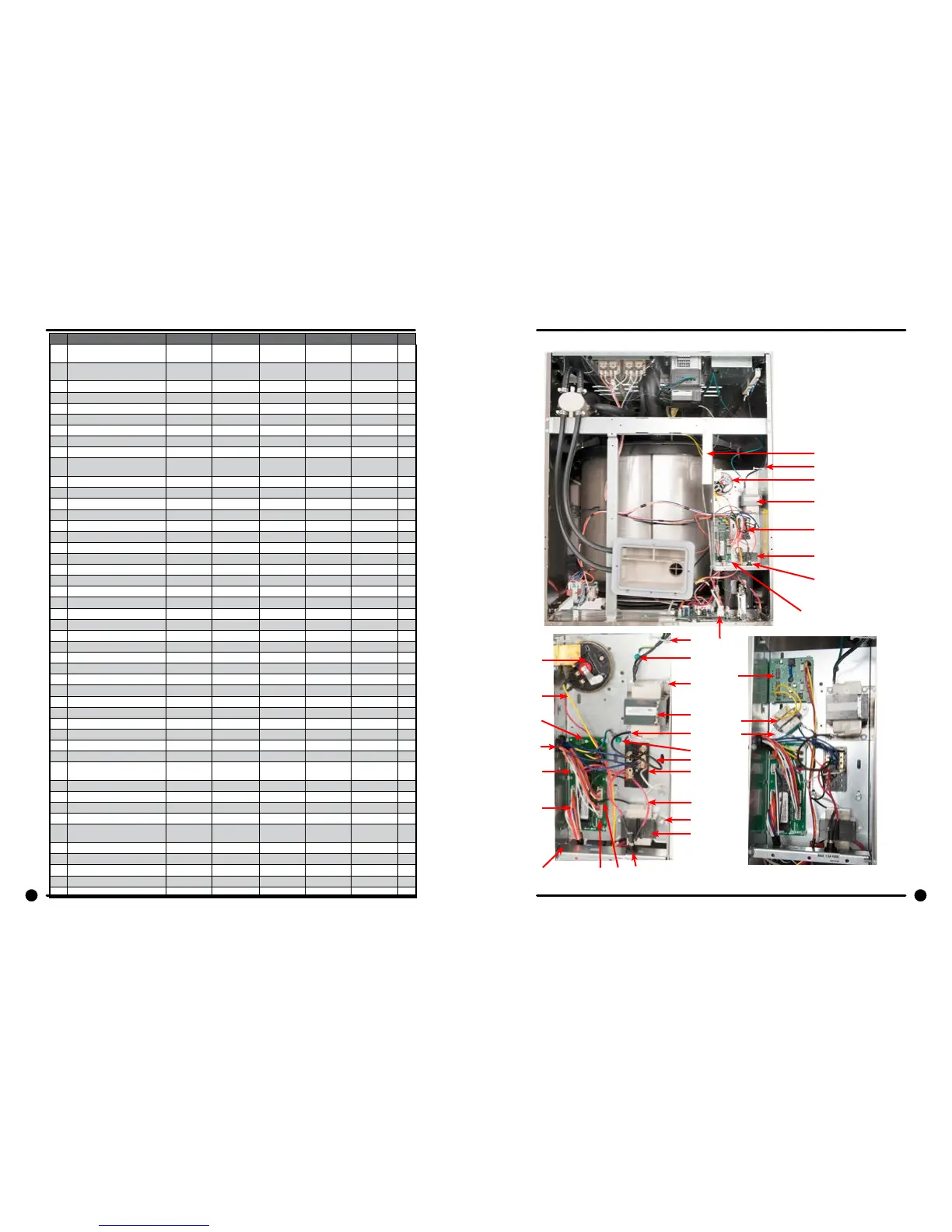

Electrical Components - Top Compartment
1
2
6
5
4
3
12
11
7
21
29
23
26
25
24
22
28
27
10
10
19
18
15
14
8
9
13
16
17
25
27
4
8
11
18
19
22
Mechinical Pressure Switch
Electronic Pressure Sensor
128 129
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
