Dexter Laundry WCAD Series Parts & Service Manual

Key Description T300 T350 T4 0 0 T450 T600 QTY
1 Panel Control Assembly(panel
only)
9989-557-001 9989 -557-001 9989-558-001 9989-558-001 9989-559-001 1
* Screw, to Side Panels 5/16, Hxw-
shrhdundct #10Bx 1/2”
9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
2 Plate-Latch, Top 9452-625-001 9452-625-001 9452-625-001 9452-625-001 9452-625-001 1
3 Nut, #8-32 8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 2
4 Post Locator Top 9467-024-001 9467-024-001 9467-024-001 9467-024-001 9467-024-001 2
5 Nut Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
6 Locator Panel 9355-001-001 9355-001-001 9355-001-001 9355-001-001 9355-001-001 2
7 Screw FillHDCR 10Bx1/2” Guide 9545-008-023 9545-008-023 9545-008-023 9545-008-023 9545-008-023 2
8 Spacer Pushbutton (Micro) 9538-178-001 9538-178-001 9538-178-001 9538-178-001 9538-178-001 1
9 Pushbutton Control (coin)[Blue] 9035-060-003 9035-060-003 9035-060-003 9035-060-003 9035-060-003 1
9 Pushbutton Control (coin)[Black] 9035-060-005 9035-060-005 9035-060-005 9035-060-005 9035-060-005 1
10 Retainer Pushbutton (Micro) 9486-150-001 9486-150-001 9486-150-001 9486-150-001 9486-150-001 1
11 Nut Hexelasticstop #4-40 8640-424-002 8640-424-002 8640-424-002 8640-424-002 8640-424-002 2
12 Spacer Plastic #6x9/16 9538-157- 018 9538-157- 018 953 8-15 7-018 953 8 -157-018 9538-157- 018 5
13 PCB assembly Control /Display
STOP
9473-010-001 9473-010-001 9473-010-001 9473-010-001 9473-010-001 1
14 Nut Elasticstop #6-32 8640-411-002 8640-411-002 8640-411-002 8640-411-002 8640-411-002 5
15 Nut-Hexkeps, #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 1
16 Harness LEDPCB 9627-797-001 9627-797-001 9627-797-001 9627-797-001 9627-797-001 1
* Harness Doorlock, Switches P4/
P15
9627-791- 0 03 9 6 27-791-0 0 3 9627-791- 0 03 9 6 27-791-0 0 3 9 627-791-0 0 4 1
17 Spacer Plastic #6x9/16 9538 -157- 018 9538 -157- 018 9538-157-018 9538-157- 018 953 8 -157-018 2
18 PCB assembly Mode lights 9473-005-001 9473-005-001 9473-005-001 9473-005-001 9473-005-001 1
19 Nut Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
20 Accecptor-Coin, Optical 9021-041-001 9021-041-001 9021-0 41- 001 9021-041- 001 9 021-041-001 1
21 Retainer, Coin Accecptor 9486-149-001 9486-149-001 9486-149-001 9486-149-001 9486-149-001 2
22 Screws, Torx, T-10, 4Bx5/8ss 9545-053-002 9545-053-002 9545-053-002 9545-053-002 9545-053-002 2
23 Switch Assembly Emergency
Stop (includes wire harness)
9732-223-001 9732-223-001 9732-223-001 9732-223-001 9732-223-001 1
24 Spacer Plastic #8x5/16 E-Stop 95 3 8-157-020 95 3 8 -157-020 9538-157- 020 9538-157- 020 95 3 8 -157-020 2
25 Plate to mount e-stop button 9452-725-001 9452-725-001 9452-725-001 9452-725-001 9452-725-001 1
26 Nuts-Hexkeps, #8-32 8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 3
27 Plastic Shield over main PCB 9550-184-001 9550-184-001 9550-184-001 9550-184-001 9550-184-001 1
28 Nuts-Hexkeps, #8-32 8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 3
29 Nameplate,Control Panel (Blue) 9412-208-002 9 412-209 - 0 02 9412-210-002 9412-211- 0 02 9412-212-002 1
29 Nameplate,Control Panel (Black) 9412-208- 0 01 9412-209-001 9412-210-001 9 412-211- 001 9412-212-001 1
* Label Name Plate RH (Blue) 8502-744 -001 8 5 0 2-744- 001 N.A. N.A. N.A. 1
* Label Name Plate RH (Black) 8 5 02-744- 001 8502-74 4- 0 01 N.A. N.A. N.A. 1
30 Motor Ass’y, Door Locking (see
Door Lock Group for parts break-
down)
9922-015-001 9922-015-001 9922-015-001 9892-015-001 9922-015-001 1
31 Nuts-Hexkeps, #8-32 8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 3
* Battery 8612-001-001 8612-001-001 8612-001-001 8612-001-001 8612-001-001 1
32 Cable, USB 9806-022-001 9806-022-001 9806-022-001 9806-022-001 9806-022-001 1
33 Screw-Torx T10, #4-40x3/8ss 9545-020-004 9545-020-004 9545-020-004 9545-020-004 9545-020-004 2
34 Nut, Spring 8640-399-008 8640-399-008 8640-399-008 8640-399-008 8640-399-008 2

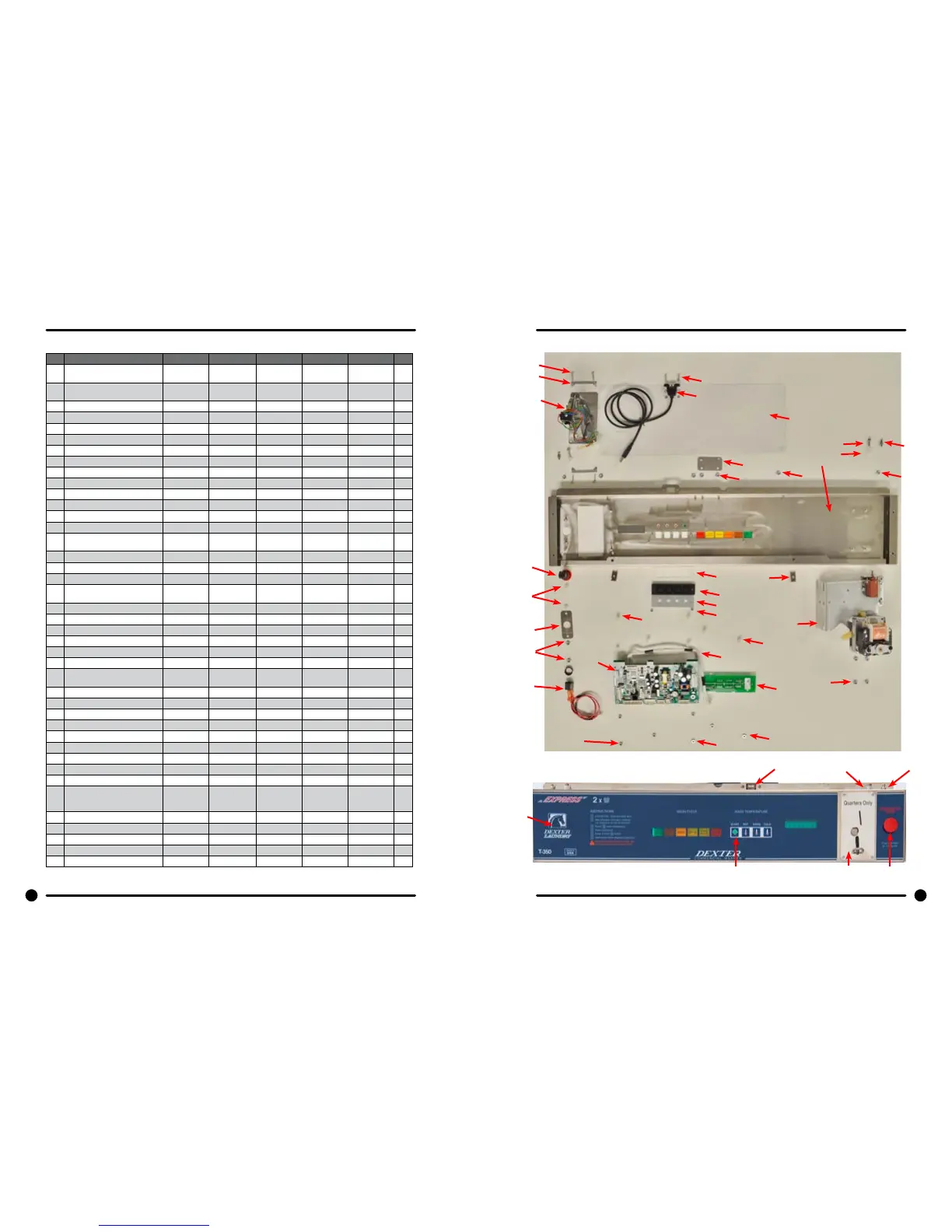

Control Panel Part # by Model
130 131
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
1
9
2
6
5
4
3
10
20
19
18
17
16
15
14
13
8
12
11
7
21
22
26
25
24
23
30
34
33
28
32
31
27
23
9 20 23
29
32 6, 7
4
