Mechinical Pressure switch VS Pressure Sensor

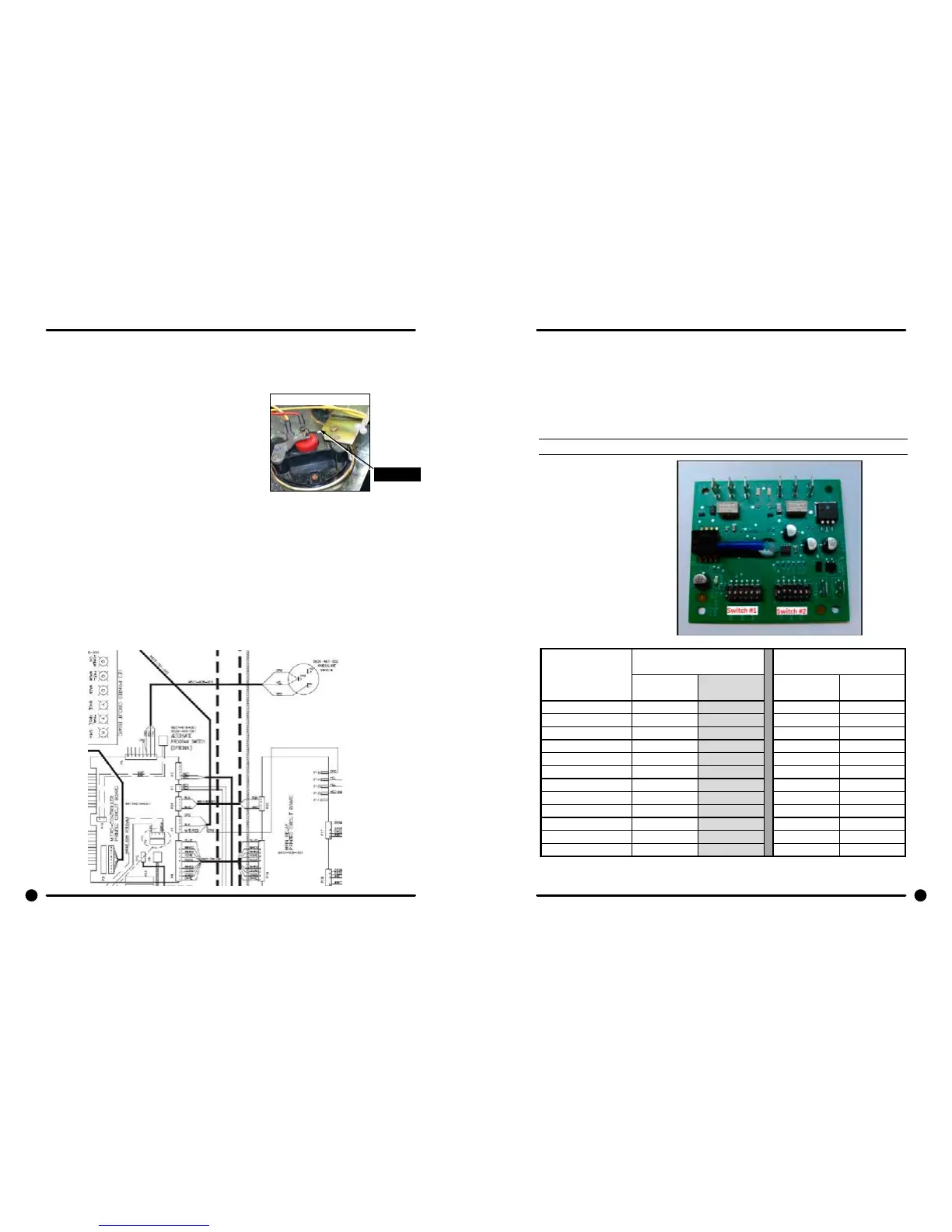

The Drawing below represents the Mechinical Pressure switch and wiring connections. After serial number
W1.15244.001 all washers were converted to the electronic pressure sensor 9732-315-001. If desired previ-
ous C-series machines can be upgraded to the electronic pressure sensor with Kit 9732-314-001, Kit includes
pressure sensor, hold downs, transformer, and wires. The Electronic pressure sensor wiring conguration is
represented in the Diagrams and Schematics in this manual.
Pressure Switch Caution (Not recommended by Factory!) Changing Factory preset
adjustment voids all factory water usage specications.
The pressure switch sets the water level in the washer. As the
water level rises, it compresses the air in the pressure switch
hose. When the washer reaches the desired water level, the
compressed air in the pressure switch hose opens the contacts
in the switch, shutting off the water. When at the empty level,
the pressure switch contacts are closed allowing the machine to
either spin or ll with water. The 1/4” screw in the middle of the
switch adjusts the water level. Counter clockwise will lower the
water level, and clockwise will increase the water level. Before
making any adjustments of the pressure switch, drain the tub
and blow the hose clear of possible water bubbles which can
cause erratic pressure switch operation.
Pressure Switch
SINGLE LEVEL
Adjustment
Electronic Pressure Sensor
The Electronic Pressure Sensor comes standard on all models Starting Septembet, 1st 2015. Machines
manufactured before this date can be upgraded with Kit 9732-213-001. The Pressure sensor is adjustable.
The Factory settings chart will let you know the starting values for each machine and by following the
Switch position chart you can adjust the water levels in 1/4 inch increments from that starting value.
88 89
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
