Domino F Series User Manual

OPERATION
EPT031055 Issue 2 September 2017 3-27
Aiming Beam and Shutter
The standard aiming beam is transferred via the fibre to the laser head and
scanner. When a shutter is installed, no aiming beam can reach the scanner
and therefore no aiming beam is available for product positioning.
Due to this, Domino offers an extra aiming beam which is installed after the
shutter to position products when a shutter is installed in the laser head.

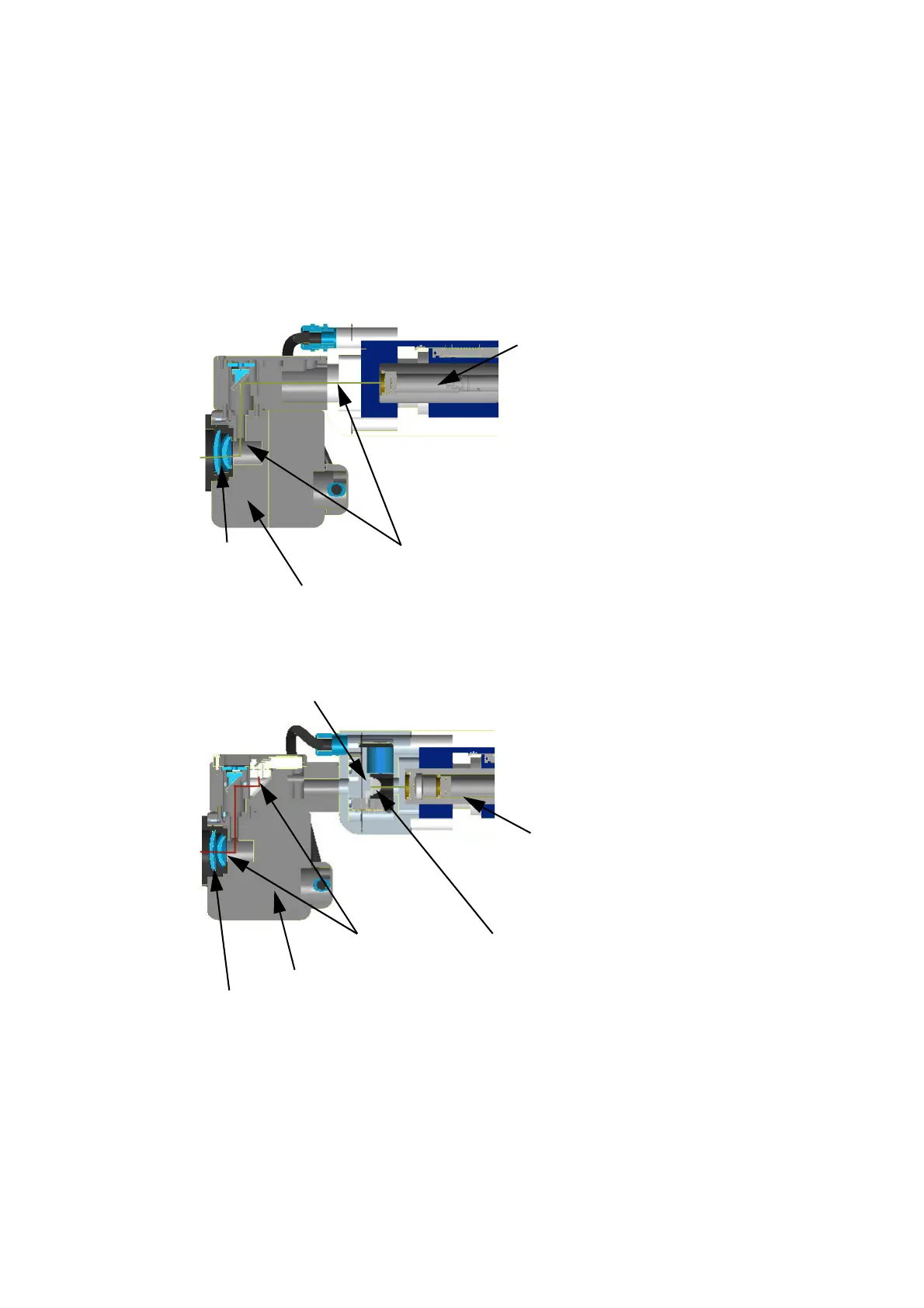

Without Shutter
with shutter
laser module
laser module
laser beam (and internal aiming beam)
blocked by shutter
laser beam (and internal aiming beam)
extra aiming beam
scanner head
lens
lens
scanner head
With Shutter
