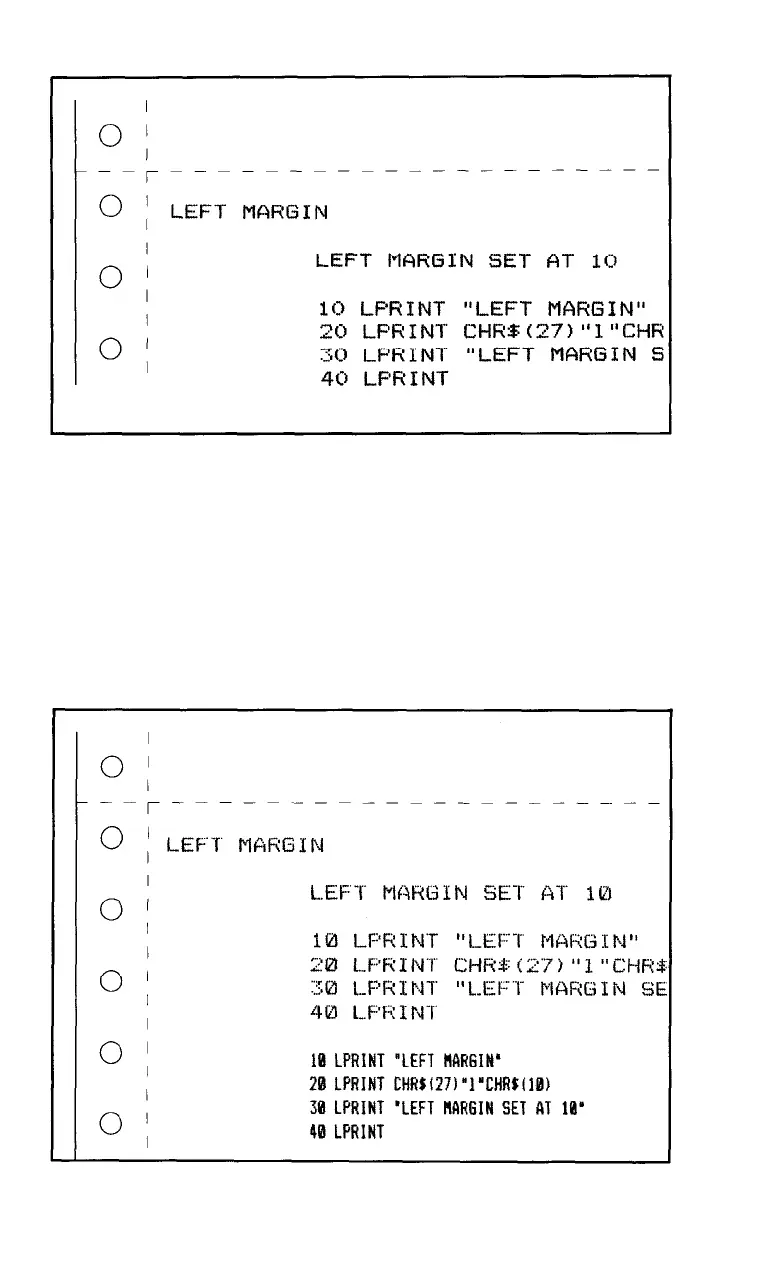

Figure 9-2. Listing at new margin
and then switch to Compressed, the left margin stays the same dis-
tance from the edge of the paper. To see an example, type:
LPRINT CHR$ (
15)
and then your computer’s print listing command. Figure
9-3
shows the
page with this addition.
Figure 9-3. Absolute left
margin
115
131
133
