Print head

park position

Troubleshooting and Diagnostics

6-18

6.8.7

GAP ERROR

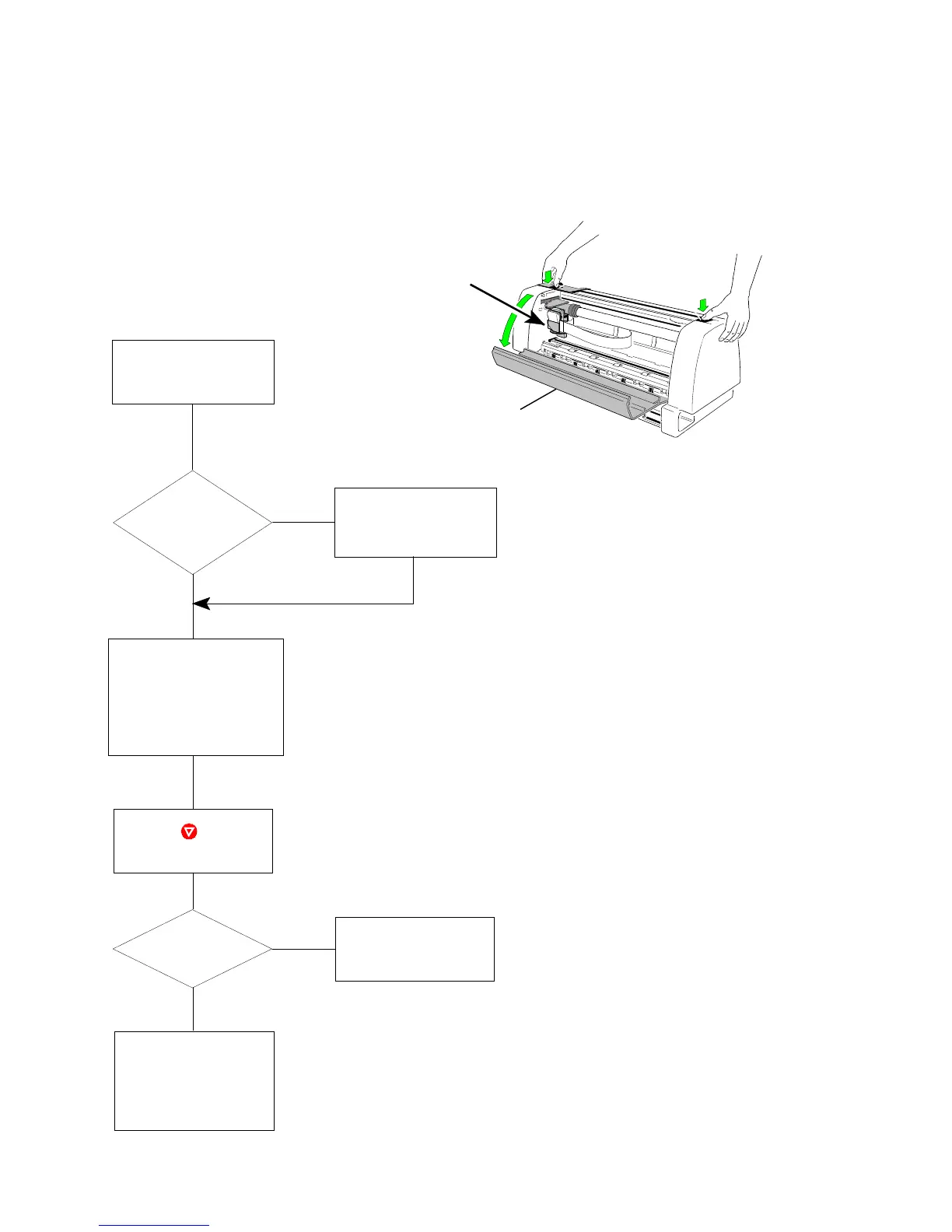

That means, that there are obstructions in the paper path.

Note:

Remove the ribbon cassette only when the print head is in park position.

Open rear cover

Possible to

No See 6.8.2 Ribbon

remove ribbon?

Unfasten

Procedure

Yes

Remove paper and

any obstructions

entirely.

Insert ribbon cassette.

Close cover

Press

to continue

Error

message again?

Continue printing

Yes

Call service
