7-1

Options

7.1

Printer Stand

7.1.1

Printer Stand PP 803 / PP 806 / PP 809

Put the printer onto the stand:

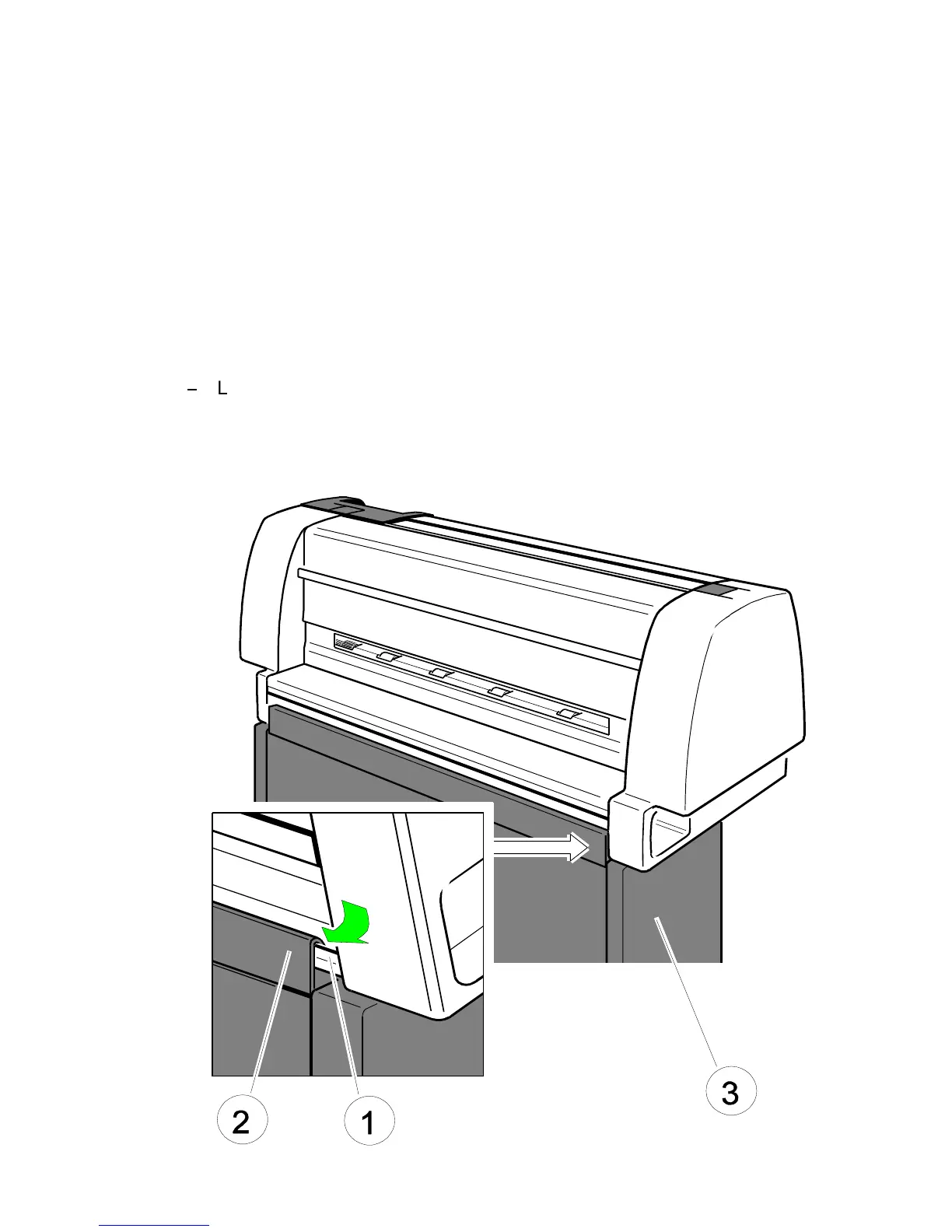

Look at the rear of the printer and put the metal bar (1) underneath the

flange-rail (2) of the stand (3).
