SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 104
Confidential
3.4.5.2 DAMPER KIT
x
1. Perform the Tube inner pressure reduction.
2. Unlock the CR UNIT. (p69)
3. Remove the CR COVER. (p103)
4. Disengage the hook, and remove the Tube Guide Holder.

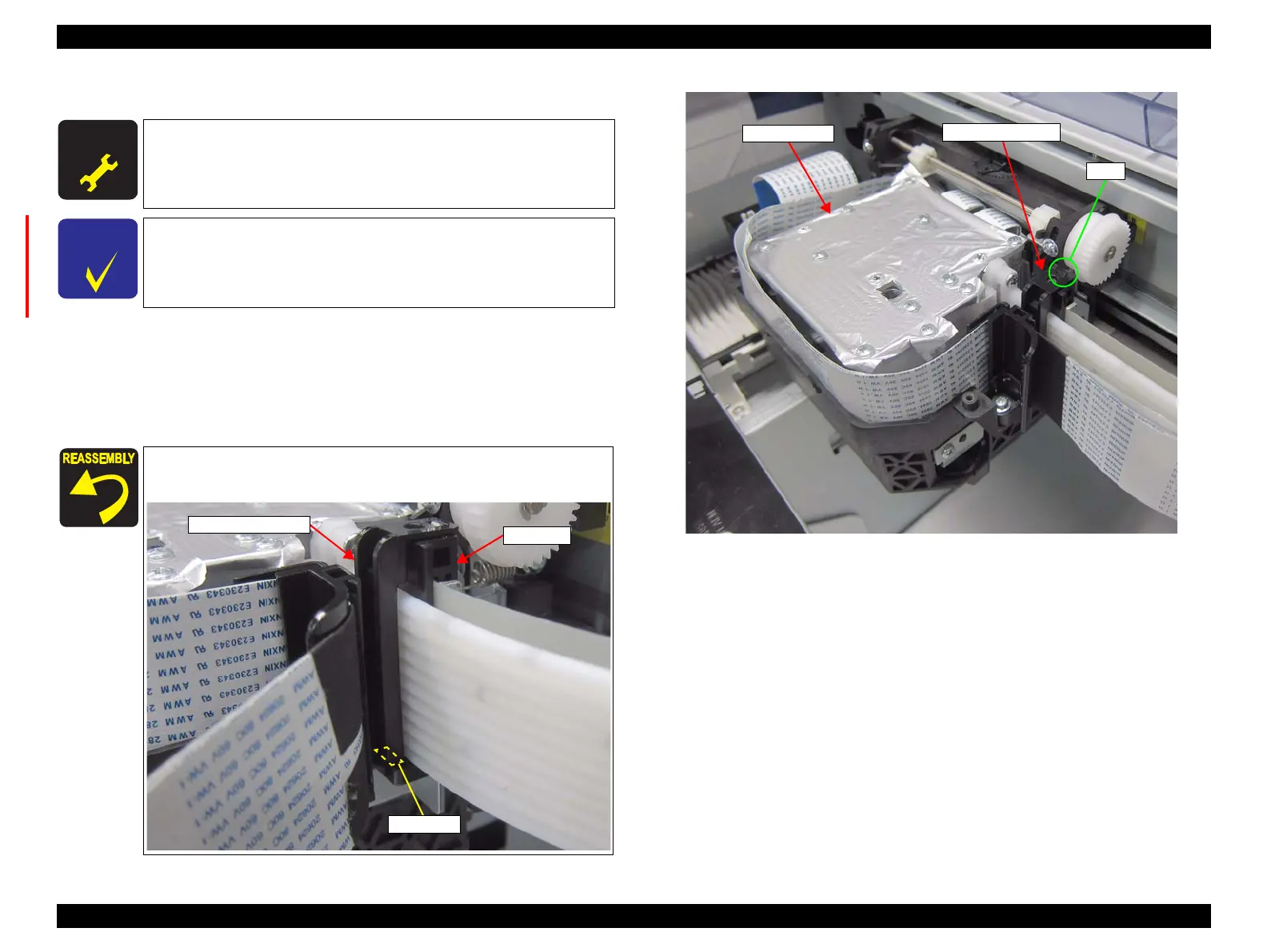

Figure 3-51. Removing the Tube Guide Holder
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p194) and make sure to
perform the specified operations including required adjustment.
C H E C K
P O I N T
Remove films and/or sponges of the INK MISTCAOVER ASSY if
attached. (p114)
Insert the protrusion of the Tube Guide Holder in the hole on the
CR UNIT.
Tube Guide Holder
Protrusion
CR UNIT
DAMPER KIT
Tube Guide Holder
Hook
