4.13.8 TF Encoder Position Adjustment
PROCEDURE
1. Disassemble the printer until you can adjust the TF Encoder (TF ENCODER
BOARD ASSY). (
p. 183)
2. Visually check whether the TF SCALE is in the center of the detecting section of
the TF Encoder.

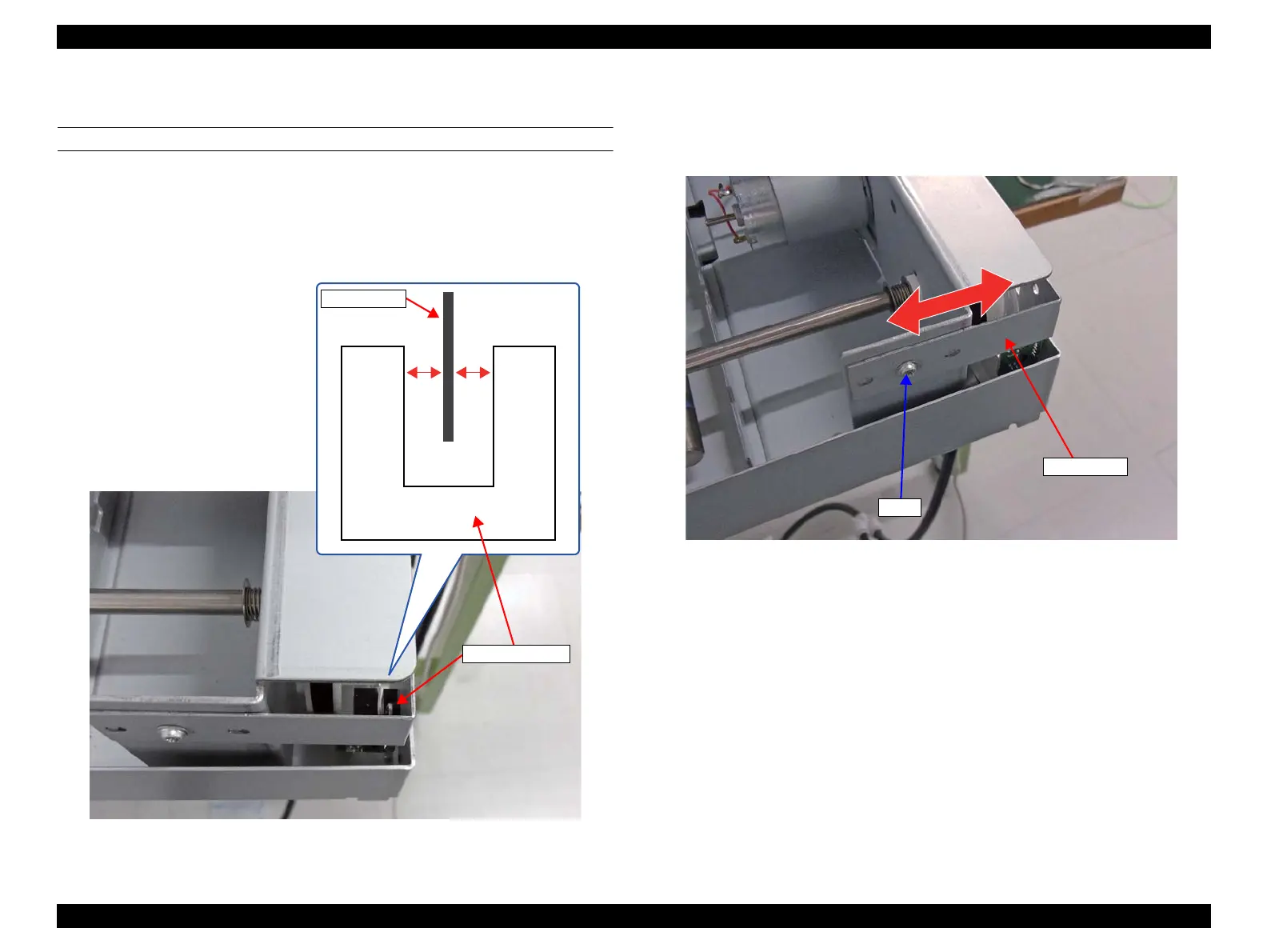

Figure 4-69. TF Encoder Position Adjustment
3. If it is misaligned, loosen the screw and adjust the fixing plate to align the TF
Encoder position.
4. After adjusting the position, tighten the screw loosened in Step 3.
Figure 4-70. TF Encoder Position Adjustment
TF Encoder
TF Scale
Screw
Fixing plate
