DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 84
Confidential
3.4.3.12 LEFT IH COVER
1. Remove the PRINTER COVER. (p72)
2. Remove the LEFT HOUSING PLATE. (p73)
3. Remove the LEFT COVER ASSY. (p86)
4. Remove the LEFT IC COVER SENSOR. (p90)
5. Remove the LEFT IC COVER. (p82)
6. Remove the six screws, and remove the LEFT IH COVER.
A) Silver M3x8 Cup S-tite screw: 6 pcs

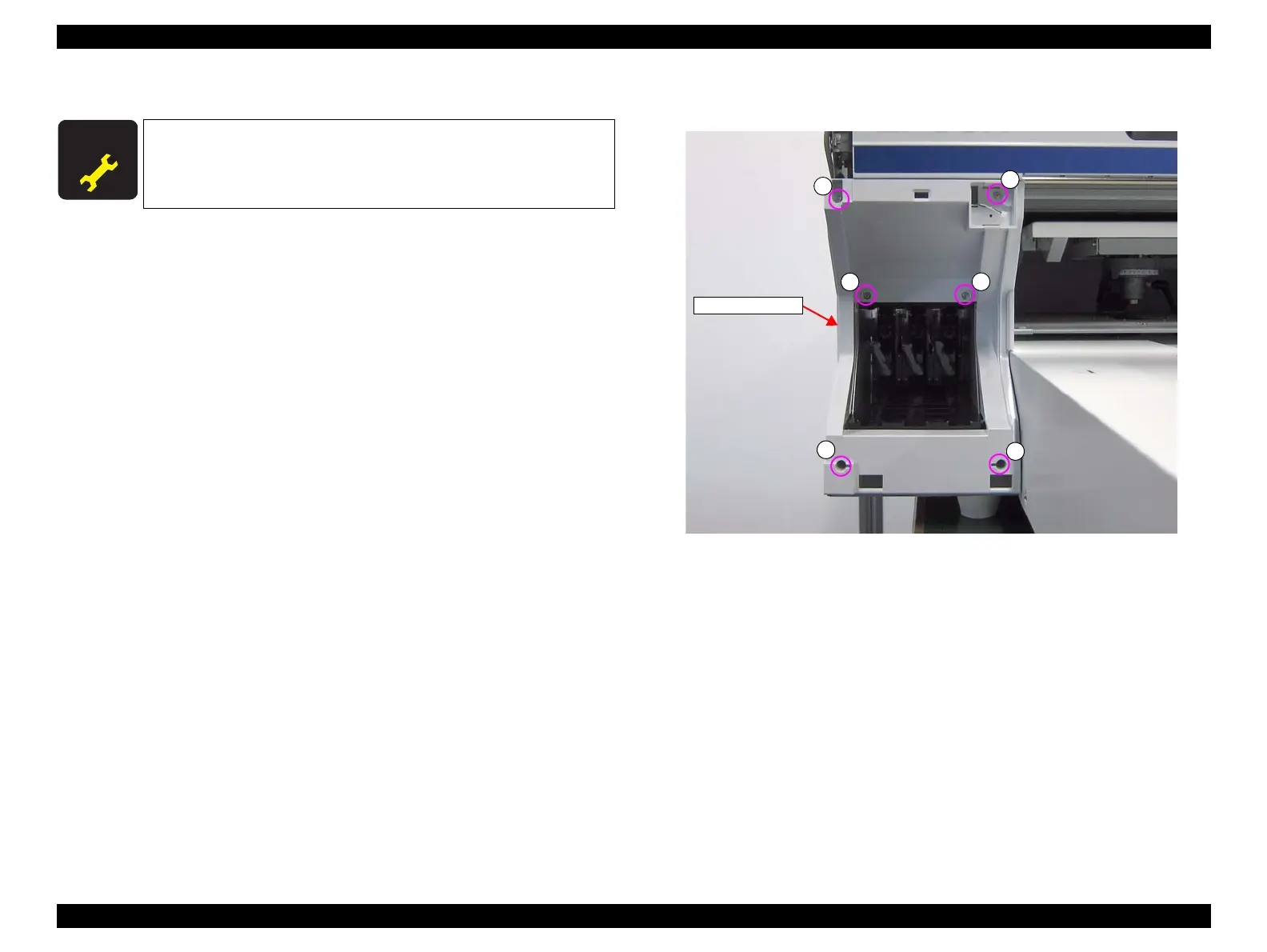

Figure 3-27. Removing the LEFT IH COVER
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p194) and make sure to
perform the specified operations including required adjustment.
A
LEFT IH COVER
A
A
A
A
A
