Epson TM-m30III User Manual

47
Chapter 2 Setup

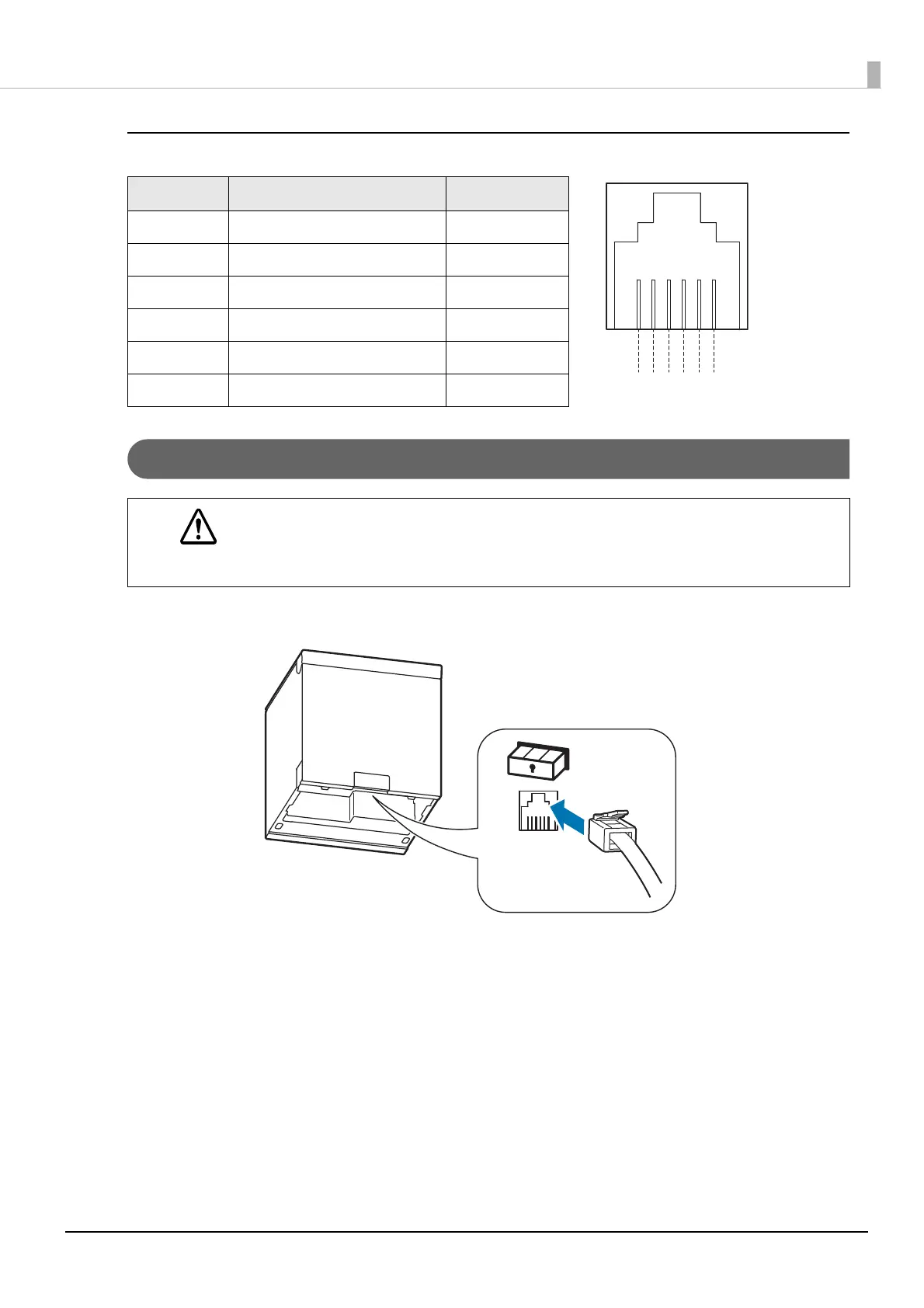

Pin assignments
Connecting the drawer kick cable
Connect the drawer kick cable to the drawer kick connector by pressing firmly until the connector clicks into
place.
Pin number Signal name Direction
1Frame GND -
2 Drawer kick drive signal 1 Output
3 Drawer kick open/close signal Input
4 +24 V -
5 Drawer kick drive signal 2 Output
6Signal GND -
WARNING
• Use a shield cable for the drawer kick cable.
• When using cash drawer, make sure to use the power supply for printer (connector pins 4).
• Do not insert a telephone line into the drawer kick connector.
Doing so may damage the telephone line or printer.
6 5 4 3 2 1

Epson TM-m30III Specifications

General

Type	POS printer
Print technology	Thermal
Maximum resolution	203 x 203 DPI
USB port	Yes
Serial interface	-
Connectivity technology	Wired & Wireless
Ethernet LAN	No
Internal memory	- MB
Product color	White
Mobile operating systems supported	Android, iOS
