Fujitsu Ceiling Type Design & Technical Manual

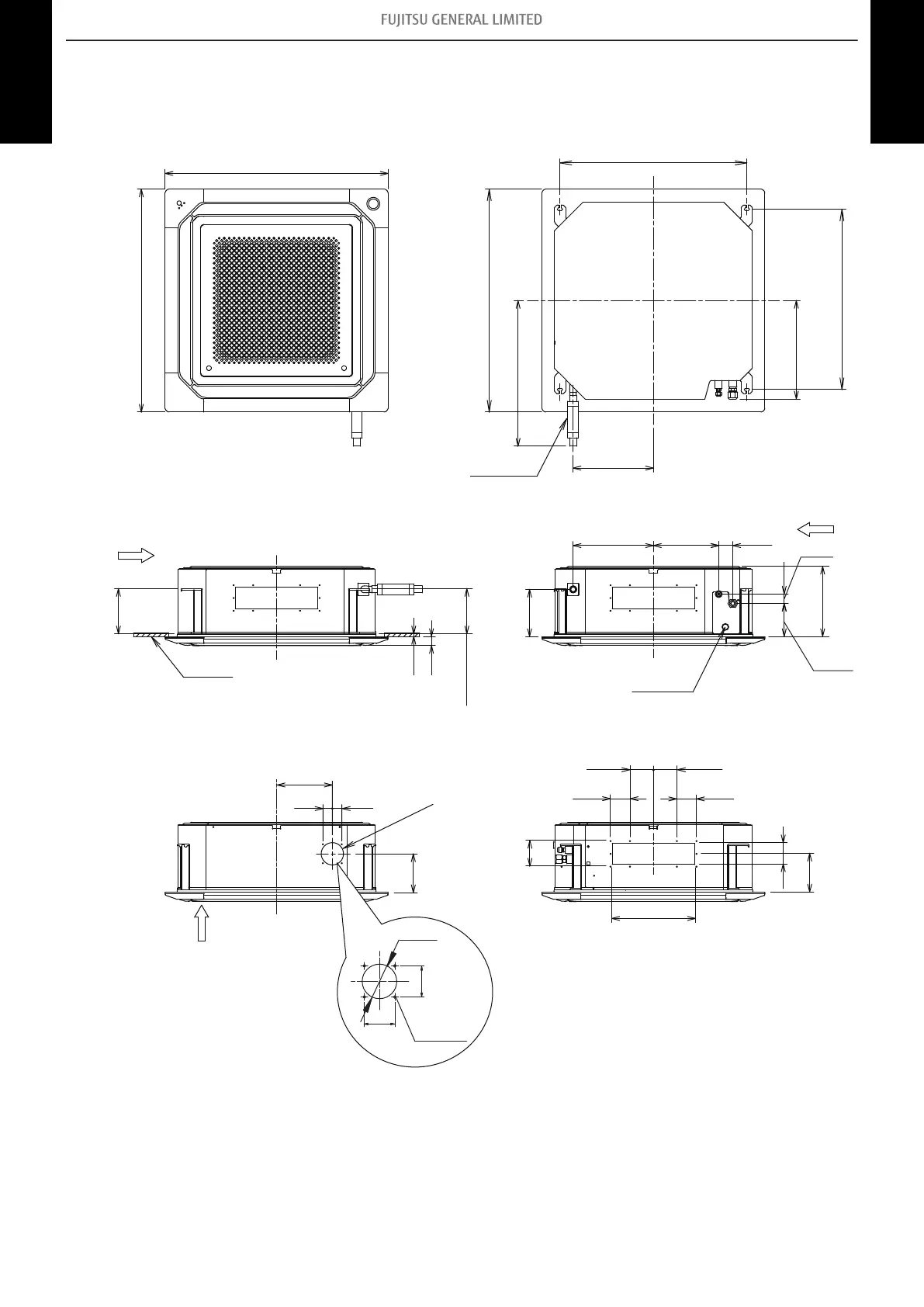

3-2. Cassette type
¢
Models: AUYG30LRLE, AUYG36LRLE, and AUYG45LRLA
796
342
950
View A
Hanging bolt position
Hanging bolt position
Indoor unit
Drain hose
View B View C
A
B
C
Ceiling
Wire hole
950
620
768
420
293
342
45
40
140
298
200 to 205
10
39
200 to 205
200
237
40
40
164
Fresh air inlet (cut out)
100
83
100
83
352
109
164
90
950
4 × Ø3.2
hole
Ø95
80
80
- 12 -
3-2. Cassette type 3. Dimensions
