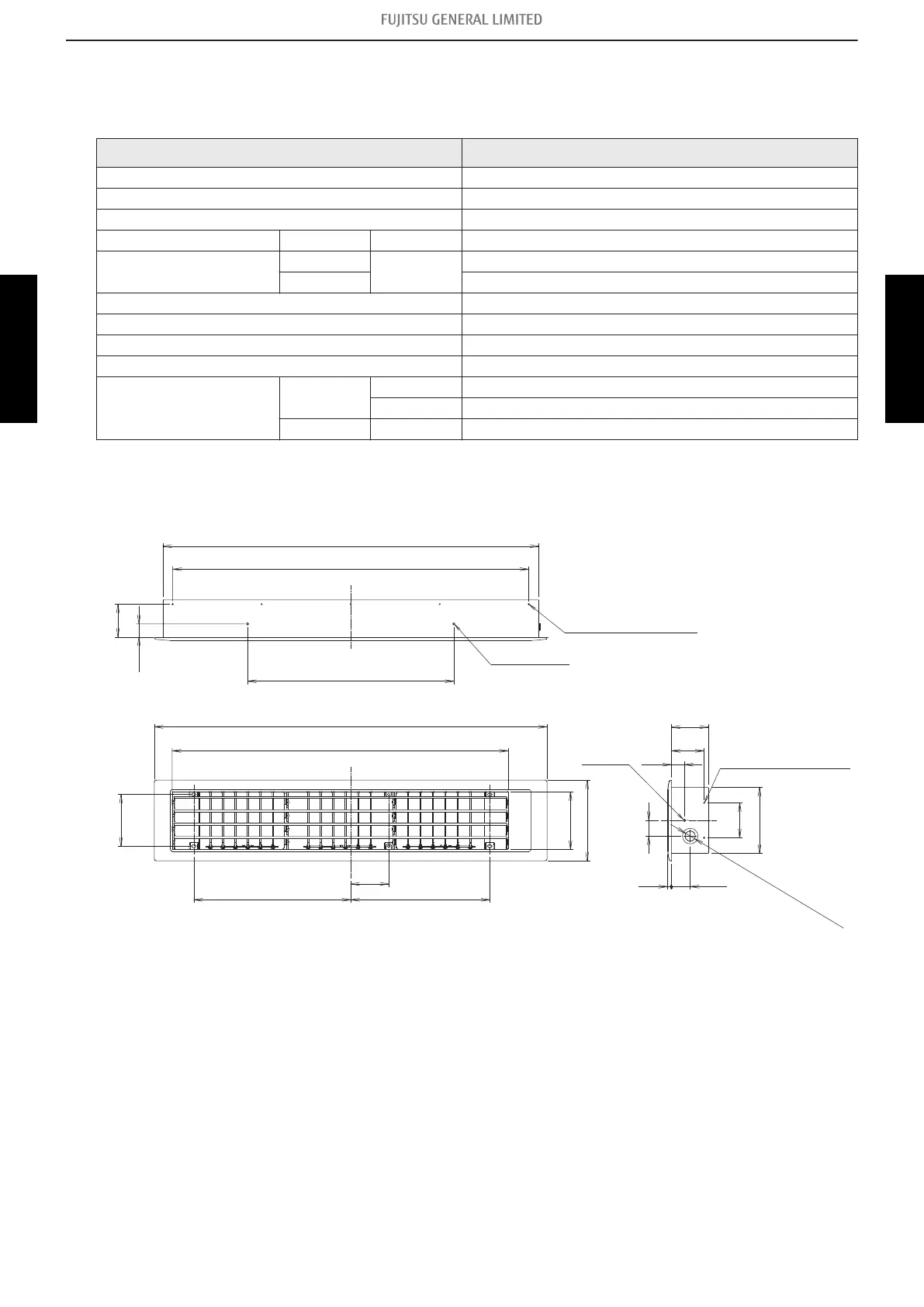

10-5. Auto louver grille kit (UTD-GXTB-W)
¢
Specifications
Model name UTD-GXTB-W
Power supply Connecting with Control box of indoor unit
Fixing of Auto louver grille Screw fixing to flange or rectangular duct
Extension square duct limit 1.0 m (Max. duct length between indoor unit and grille)
Dimensions (H × W × D) Net kg 180 × 883 × (84+9)
Weight
Net
kg
2.5
Gross 3.5
Color White
Louver motor Stepping motor
Material Flame retardant ABS
Accessories Fitting flame, etc.
Operation range
Cooling
°C 18 to 32
%RH 80 % or less
Heating °C 16 to 30
¢
Dimensions
Unit: mm
Burring hole
Burring hole
Hole
Hole
The inside diameter
of the bush
845
P200 × 4 = 800
5 × Ø3.2
463
74
29
883
755
116
353
86
312
180
130
Ø5
29
84
74
35
78
148
9 42
Ø23
2 × Ø3.2
2 × Ø5
- 322 -
10-5. Auto louver grille kit (UTD-GXTB-W) 10. Optional parts installation
