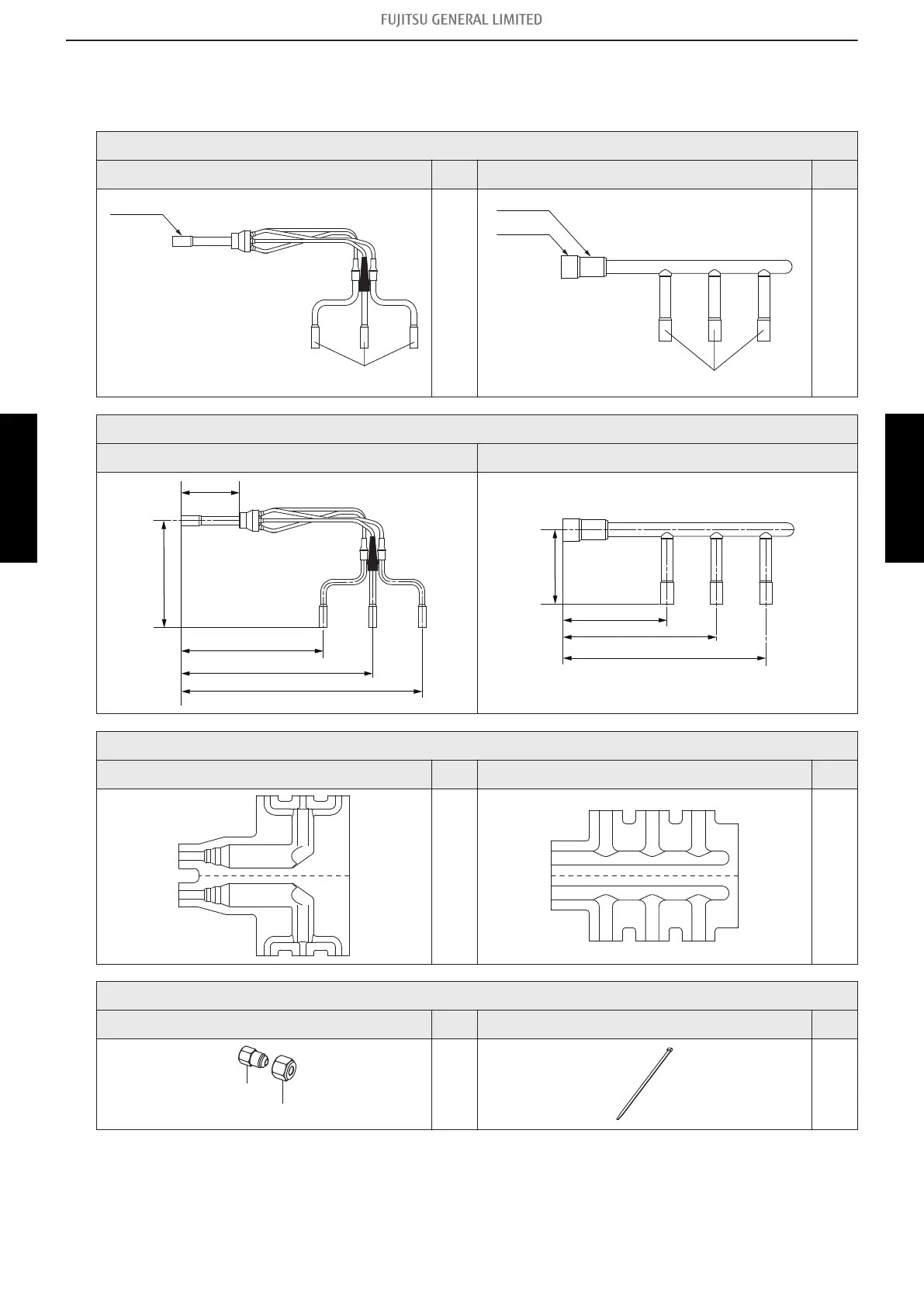

Fujitsu Ceiling Type Design & Technical Manual

1-2. Model: UTP-SX372A
Unit: mm
Port diameters
Liquid pipe Q’ty Gas pipe Q’ty
Ø12.70
Ø9.52
1
Ø15.88
Ø25.40
Ø22.22
1
Dimensions
Liquid pipe Gas pipe
357
77
252
142
196
144
214
284
97
Heat insulation cover
Liquid pipe Q’ty Gas pipe Q’ty
1 1
Others
Adapter Q’ty Cable tie Q’ty
Ø6.35
Ø9.52
3 1
- 327 -
1-2. Model: UTP-SX372A 1. Branch pipes
OPTIONAL
PARTS
OPTIONAL PARTS
