Fujitsu Ceiling Type Design & Technical Manual

¢ Model: ARYG36LMLE (Static pressure mode 3)
Static pressure (Pa)
55 63 77 89 102 117 130 150
Fan
speed
HIGH
m3/h — — — — — — 1,730 1,500
l/s — — — — — — 481 417
CFM — — — — — — 1,018 883
MED
m3/h — — — — 1,530 1,310 — —
l/s — — — — 425 364 — —
CFM — — — — 901 771 — —
LOW
m3/h — — 1,330 1,140 — — — —
l/s — — 369 317 — — — —
CFM — — 783 671 — — — —
QUIET
m3/h 1,110 960 — — — — — —
l/s 308 267 — — — — — —
CFM 653 565 — — — — — —
Airflow (m
3
/h)
60
150
130
Static pressure (Pa)
900 1,100 1,500 1,700 1,900 2,100 2,300
Q-h Characteristic curve
1,300
50
140
100
90
70
80
120
110
Low
Quiet
Med
Hi
- 85 -

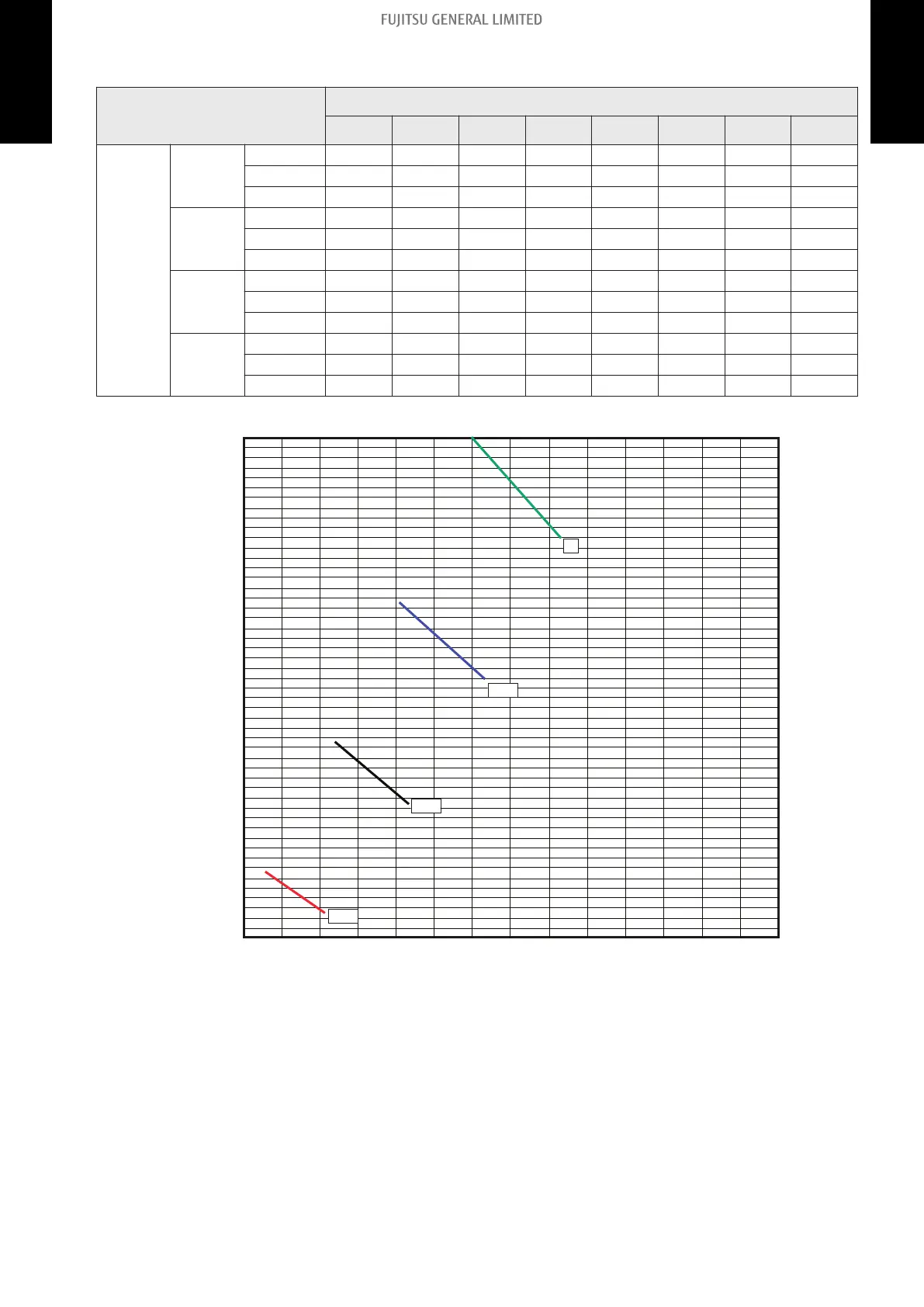

6-2. Duct type 6. Fan performance
