10-3. Fresh air intake kit for cassette type (UTZ-VXRA)
¢
Specifications
Model name UTZ-VXRA
Fresh air
intake
Max. fresh air
intake volume
2-way intake
%
(For High)
10
1-way intake 5
Connection duct type
mm Φ 100
Pcs 2
Dimensions (H × W × D)
Net
kg
120 × 840 × 840
Gross 165 × 860 × 860
Weight
Net
kg
6.0
Gross 9.5
¢

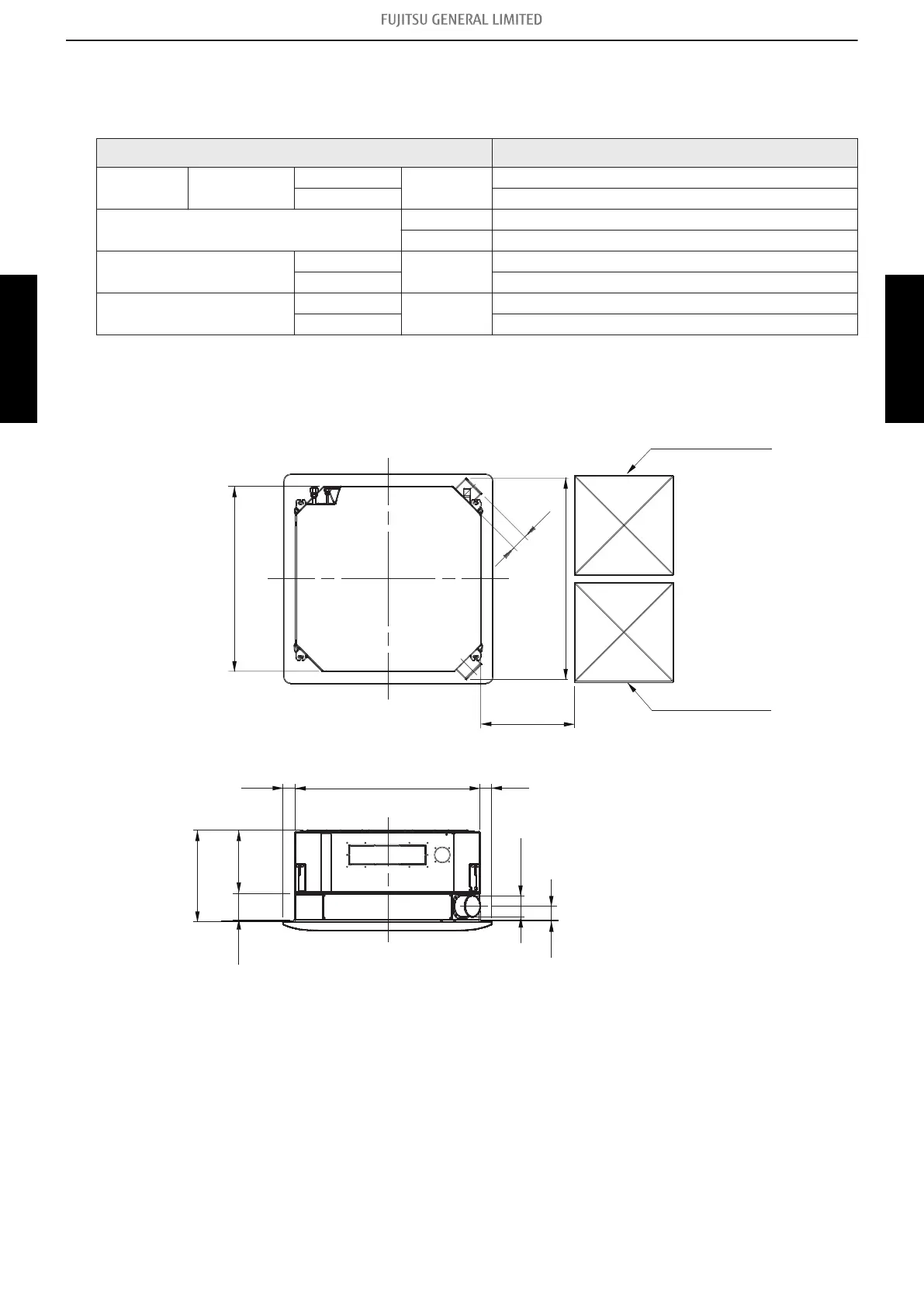

Dimensions
Unit: mm
840
Inspection hatch
400 to 450
5555
70
840
120
288
418
71
914
Ø100
□ Min. 450
Inspection hatch
Top view
Side view
□ Min. 450
NOTE:
When installing this kit, inspection hatch is necessary. (It is necessary when servicing.) Ei-
ther one of inspection hatches must be installed.
- 303 -
10-3. Fresh air intake kit for cassette type (UTZ-VXRA) 10. Optional parts installation
