Fujitsu Ceiling Type Design & Technical Manual

¢
Model: AUYG36LRLE (4-way air outlet)

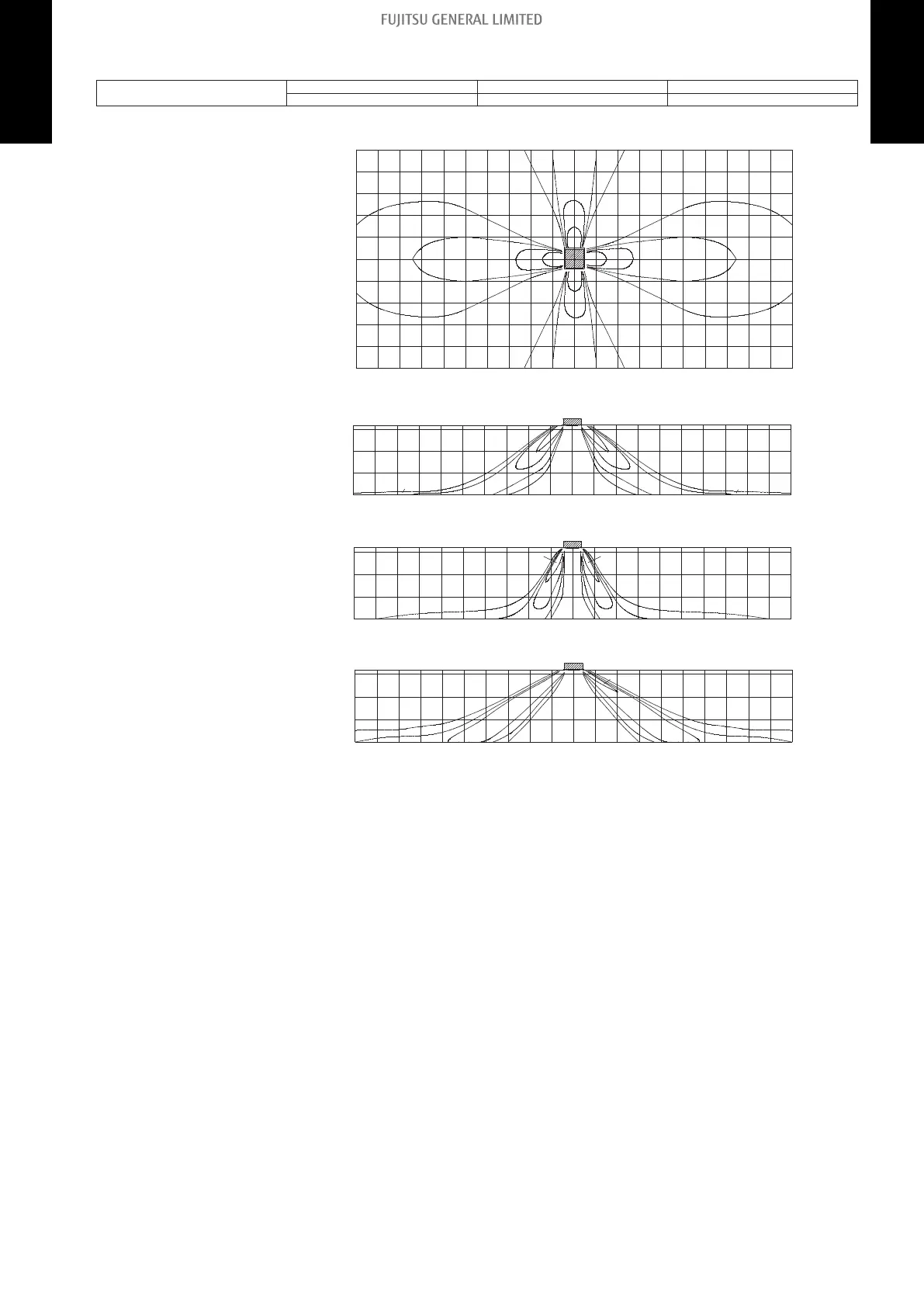

Measuring conditions
Fan speed Operation mode Ceiling mode
HIGH FAN STANDARD
Top view
Vertical airflow direction louver: Upward
5
4
3
2
1
0
1
2
3
4
5
Unit : m/s
(m)
(m)
10 9 8 7 6 5 4 3 2 1 0 1 2 3 4 5 6 7 8 9 10
Side view
Vertical airflow direction louver: Upward
3.2
2
1
0
Unit : m/s
(m)
(m)
10 9 8 7 6 5 4 3 2 1 0 1 2 3 4 5 6 7 8 9 10
0.25
0.5
1
2
0.25
0.5
1
2
Side view
Vertical airflow direction louver: Downward
3.2
2
1
0
Unit : m/s
(m)
(m)
10 9 8 7 6 5 4 3 2 1 0 1 2 3 4 5 6 7 8 9 10
0.25
0.5
1
2
0.25
0.5
1
2
Side view
Vertical airflow direction louver: Special up-
ward
3.2
2
1
0
Unit : m/s
(m)
(m)
10 9 8 7 6 5 4 3 2 1 0 1 2 3 4 5 6 7 8 9 10
0.25
0.5
1
2
- 38 -
5-2. Cassette type 5. Air velocity and temperature distributions
