Fujitsu FUTRO S720 User Manual

System expansions
Installing and removing a board
You can install various boards (e.g. a graphics card) in your device.
Before using a graphics card for the first time, please pay attention to the
notes in chapter "
Important notes on preparing your FUTRO S920/S930 for
use with an external graphics card", Page 12 .
The installation and removal procedure is the same for all types of
board. A PCIe board is shown below.
Installing the board
Board,
You can only install boards with a maximum length of 170 mm.
► Enter the required settings for the board.
► Open the casing (see "
O
pening the casing", Page 34).
2
1

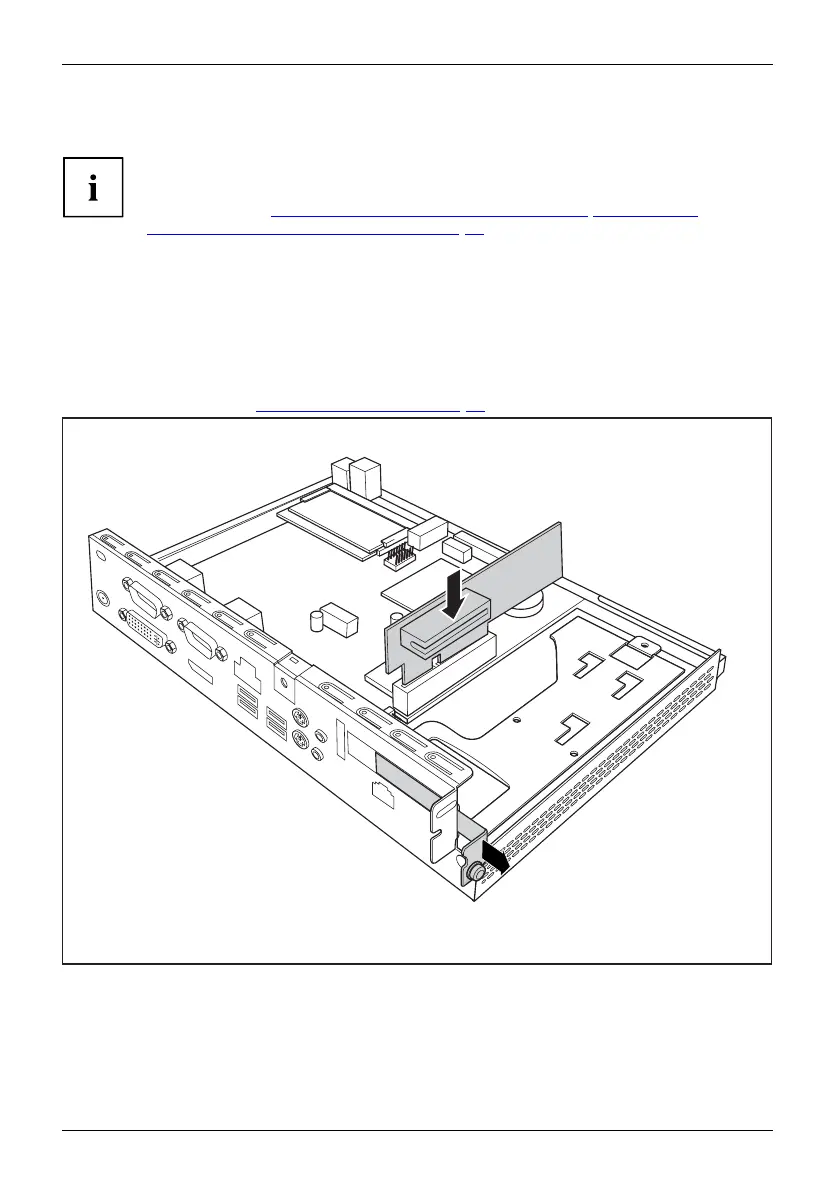

► Inser
t the riser card in its slot (1).
► Undo the screw (1) and remove the rear s lot cover plate of the slot (2).
