Fujitsu FUTRO S720 User Manual

System expansions

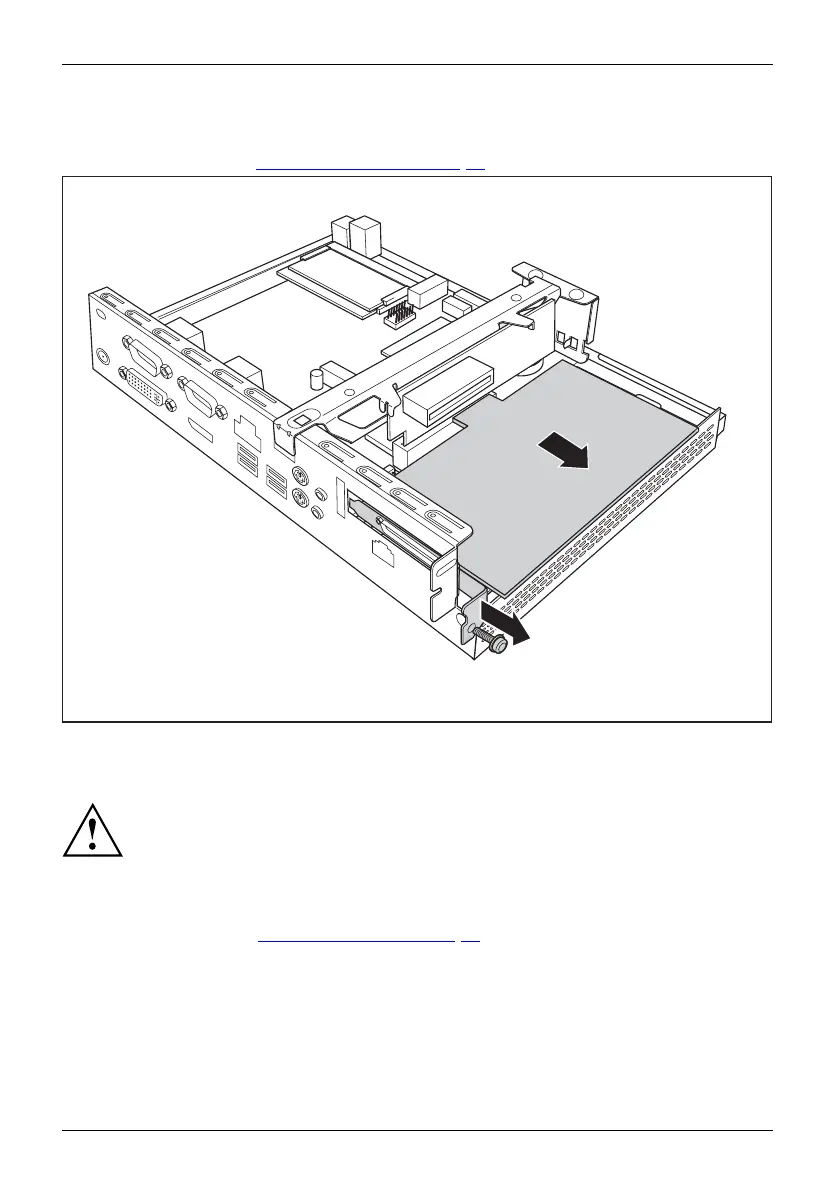

Removing the board
Board,
► Open the casing (see "Opening the ca sing", Page 34).
1
2
► Loosen the screw (1).
► Remove the board from the riser card (2).
You must reinstall the rear slot cover plate due to cooling, fire protection and the EMC
regulations (regulations on electromagnetic compatibility) to be complied with.
► Reinstall the rear slot cover plate by inserting it in the installation slot from
the inside and securing it with the screw.
► Close the casing (see "
Closing the ca sing", Page 62).
60 Fujitsu

Fujitsu FUTRO S720 Specifications

General

Processor cores	2
Processor model	GX-217GA
Processor family	AMD G
Processor frequency	1.65 GHz
Internal memory	2 GB
Internal memory type	-
Storage media	Flash
Card reader integrated	No
Total storage capacity	16 GB
Storage drive interface	mSATA
On-board graphics card model	AMD Radeon HD 8280E
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
Product color	Black
Cable lock slot type	Kensington
Operating system installed	Windows Embedded 8 Standard
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth	195 mm
Width	52 mm
Height	251 mm
Weight	1300 g
