Accessories for your Tablet PC (opti
onal)
Connecting the Tablet PC to the keyboard dock
Keyboarddo ck
The recommended maximum opening an gle of the Tablet PC and keyboard dock is 120
degrees. If the opening angle is greater than 120 degrees, we recommend holding the
keyboard dock with your free hand while operating the Tablet PC with the pen or by
touch. This will prevent the Tablet PC from a ccidentally tipping backwards.

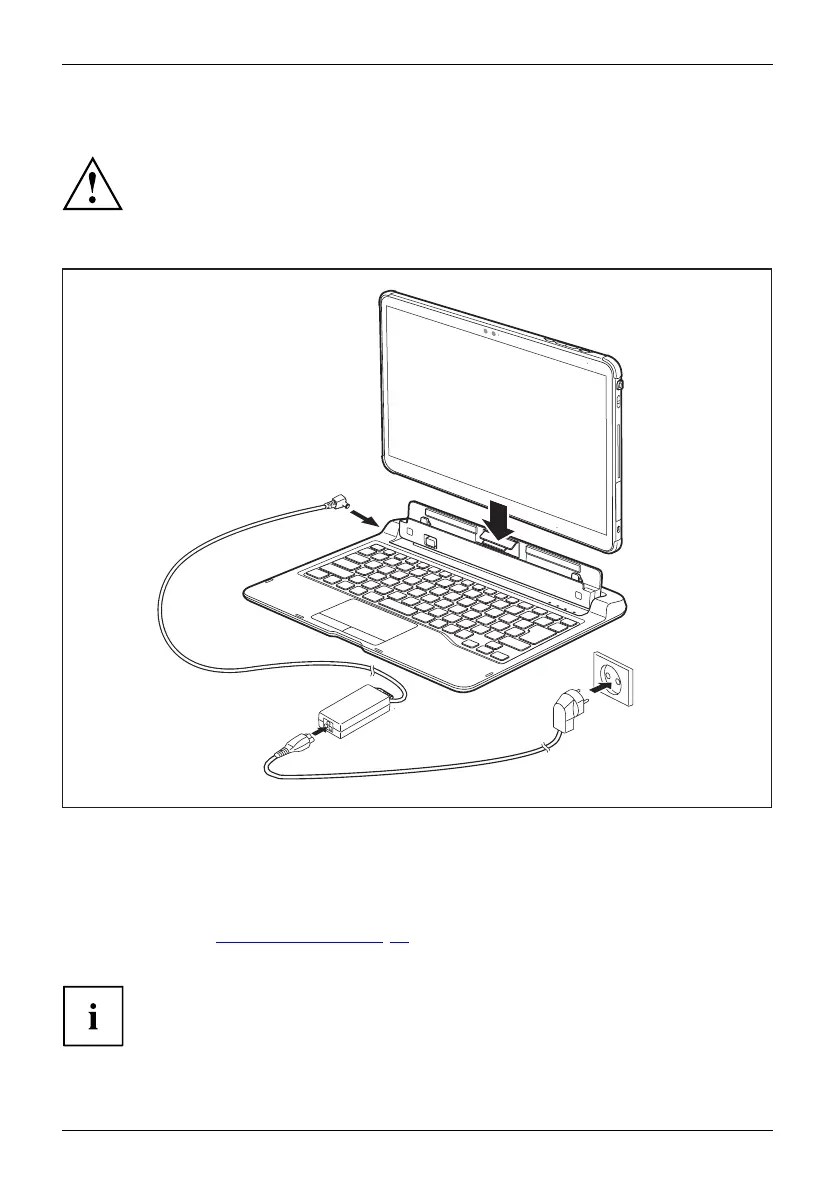

► Position the keyboard dock as shown.
1
2
4
3
► Press the tablet PC onto the keyboard dock in the direction of the arrow (1),
until you feel it engage on the connector.
► Plug the
mains adapter cable into the DC input c onnector (DC IN) on
the bac
k of the keyboard dock (2).
► Connect the power cable to the power adapter provided for the keyboard dock
(3), see chapter "
Technical data", Page 90.
► Plug t
he p ower cable into the mains socket (4).
If th
e Tablet PC is connected to the keyboard dock, you can also connect the
main
s adapter to the Tablet PC instead of to the keyboard dock.
52 Fujitsu
