Video Adjustment
The video adjustment is carried out through the Tune/video adjustment menu in the installation
setup menu.

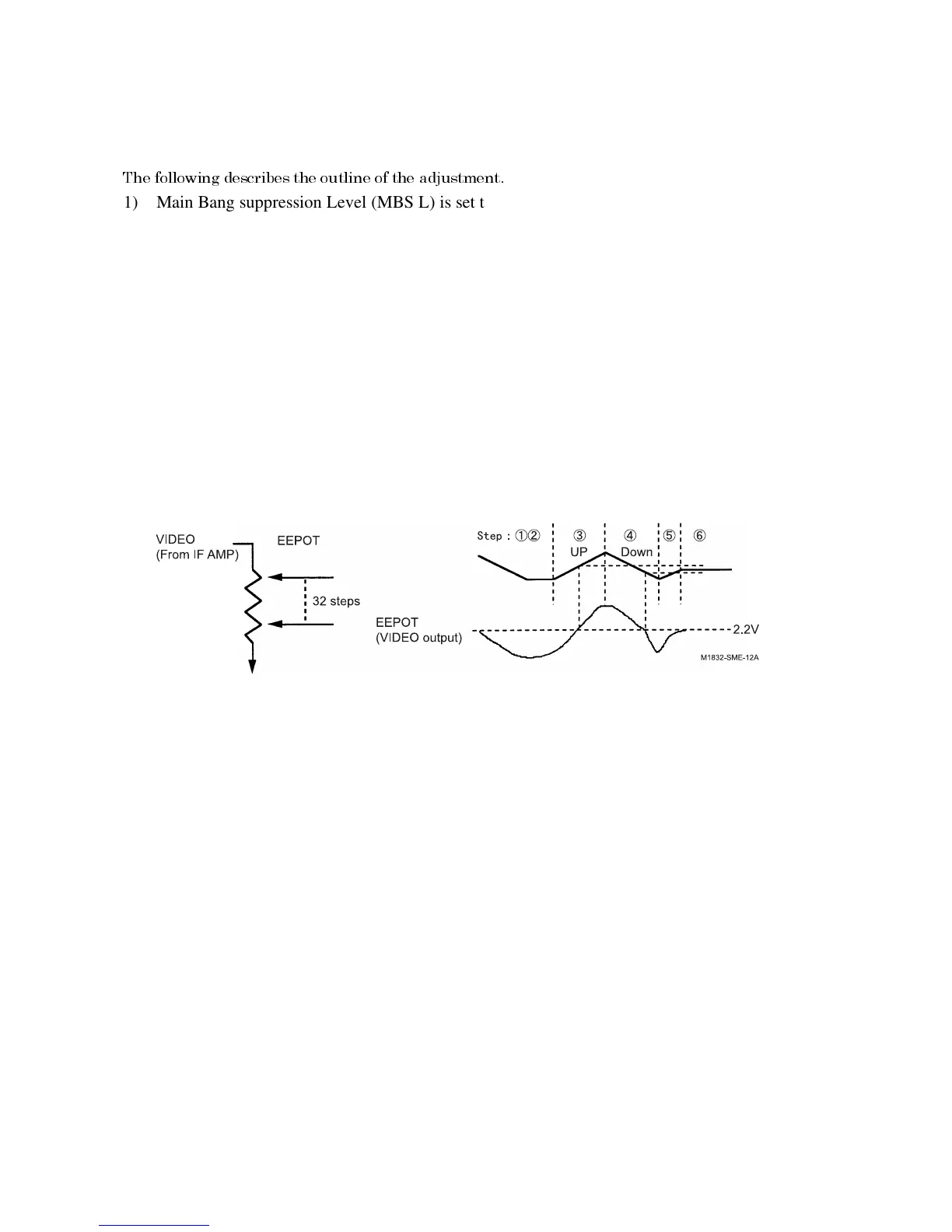

7KH IROORZLQJ GHVFULEHV WKH RXWOLQH RI WKH DGMXVWPHQW
1) Main Bang suppression Level (MBS L) is set to 0.
2) EEPOT, U14 is set to minimum. (EEPOT initialization with “L” level of U14 #7)
3) EEPOT gets into step-up mode (U14 #2 is H.) to measure output video level at each step.
The step is changed by pulses applied to U14 #1. The step where the output level is 2.2 V is
memorized.
4) EEPOT gets into step-down mode (U14 #2 is L) to find and stores the step number where
the output level is 2.2 V.
5) Averaging the step numbers found in steps 3 and 4 above, and saving onto eepot. The stored
value is not erased when power is turned off.
6) MBS L is reset to the value previously used.
7) The value obtained in step 5 is stored onto the EEPROM. Thus, the EEPOT can be set for
both video signals from the scanner unit and the external radar.
