2-18

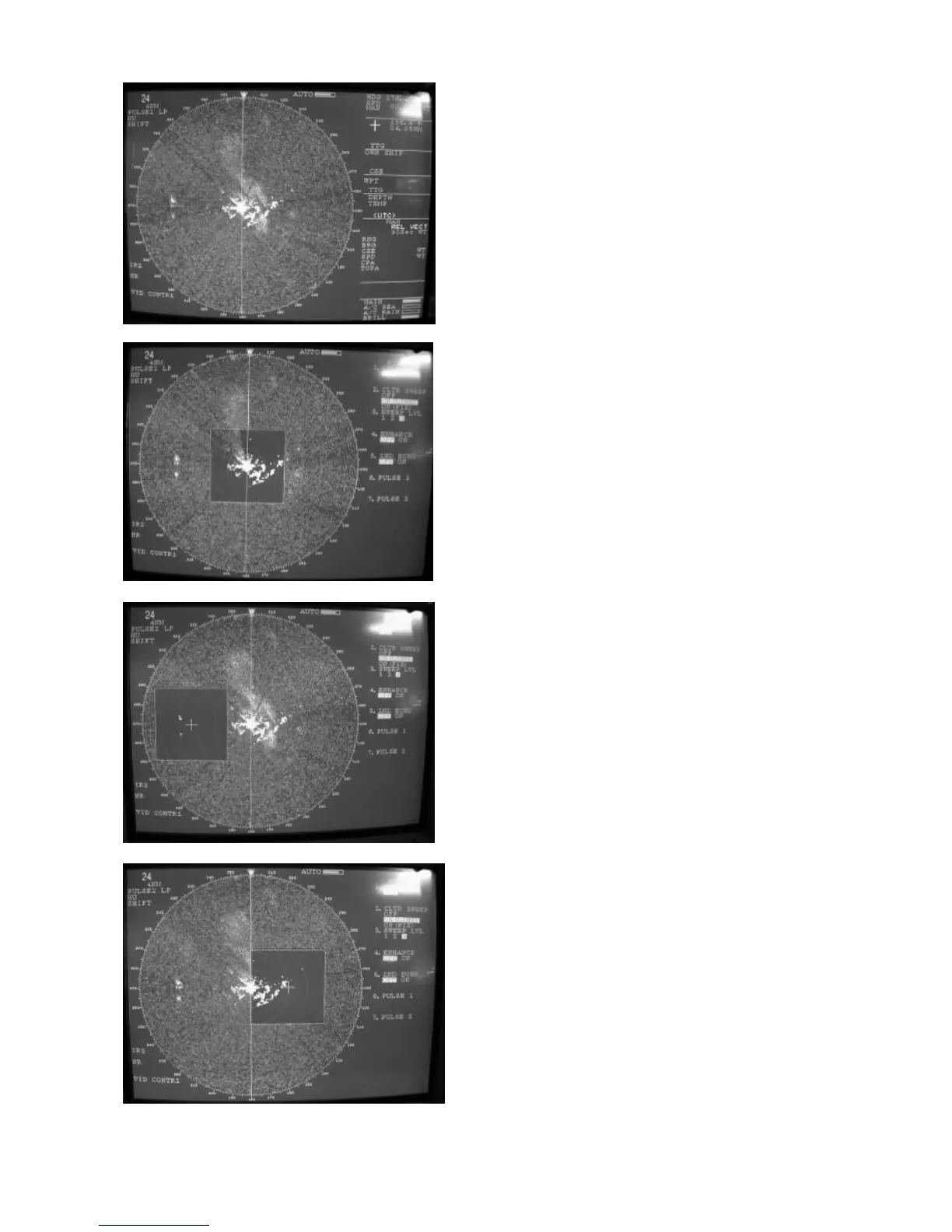

Normal radar picture
Example 1) Clutter sweep picture
PPI-like (short afterglow) picture is obtained
when clutter sweep function is on. Weak
echoes disappear in a moment.
Example 2) Clutter sweep picture
Example 3) Clutter sweep picture
