2-13
Echo averaging (EAV 1/2/3)
1) Remarks on the echo-averaging feature
Echo averaging is a useful feature when used properly. If used improperly, however, the
result could be disastrous.
2) Objective and principle of echo averaging
The main objective of echo averaging is to discriminate targets (flocks of birds, other ships,
fishing floats, etc.) hidden in sea clutter, and stably display long range targets (ship, buoy,
island, etc.) which alternately appear and disappear on the screen.
Normally, unstable echoes such as those from sea clutter and noise appear at random
positions with every rotation of the antenna. To distinguish real target echoes from clutter,
the picture is stored and averaged over successive picture frames. If an echo is solid and
stable it is shown in its actual intensity. Unstable echoes are reduced in intensity.

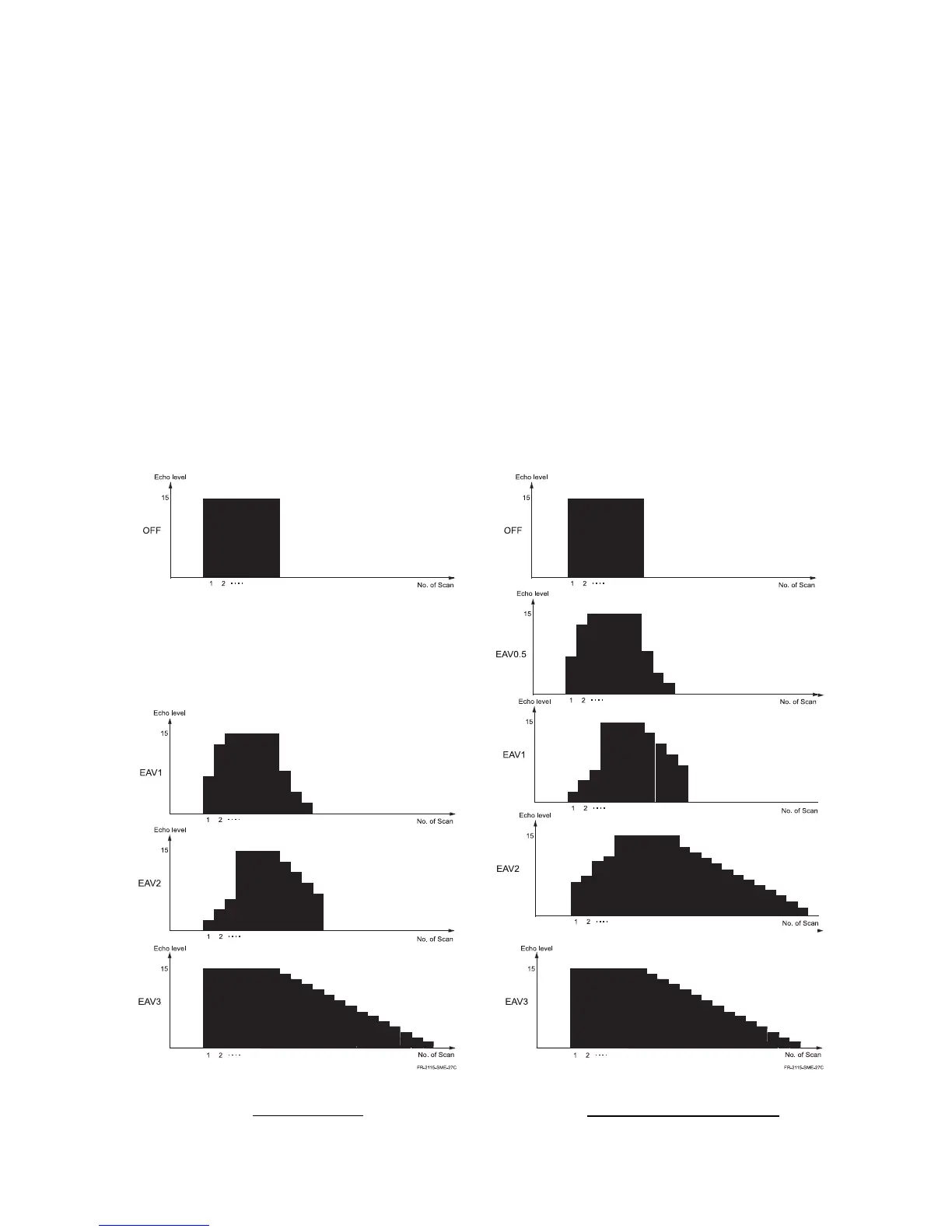

The following illustrates how echo averaging EAV 1/2/3 work.
FR-2115/2125
FR-1505/1510/1525MK3
