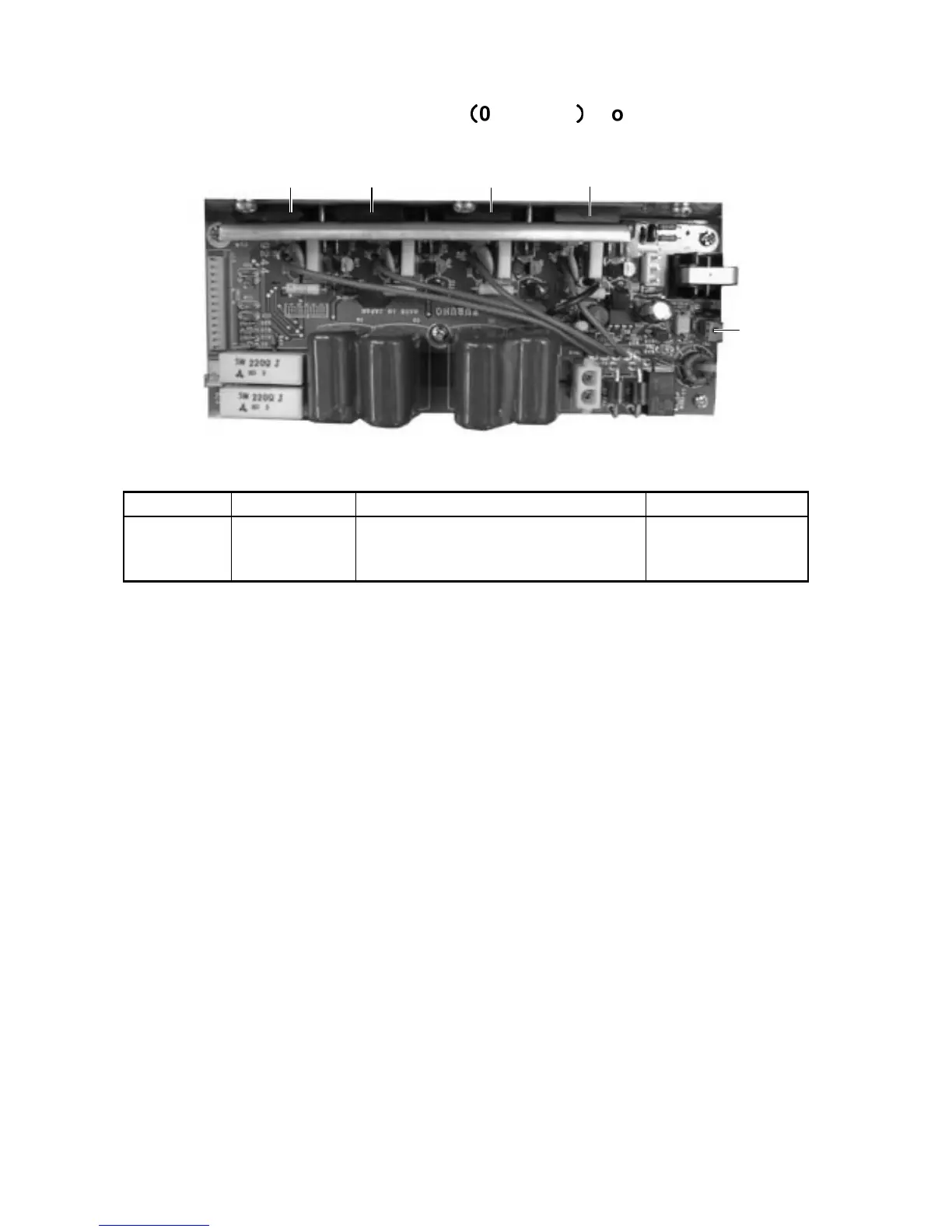

Location of Parts on MODULATOR Ñ 03P9244B Ò Board
Test points and Ratings
TP No. Signal Rating Condition
03P9243,
J801 # 13(+)
& Chassis
MAG CUR. Less than 0.15 V(ST-BY)
7.4 to 8.1 VDC(Long range, TX),
adjusted by VR1
CAUTION:
If the magnetron current is not set to within the rating, the magnetron will be damaged.
Q4
Q3 Q2
Q1
VR1
