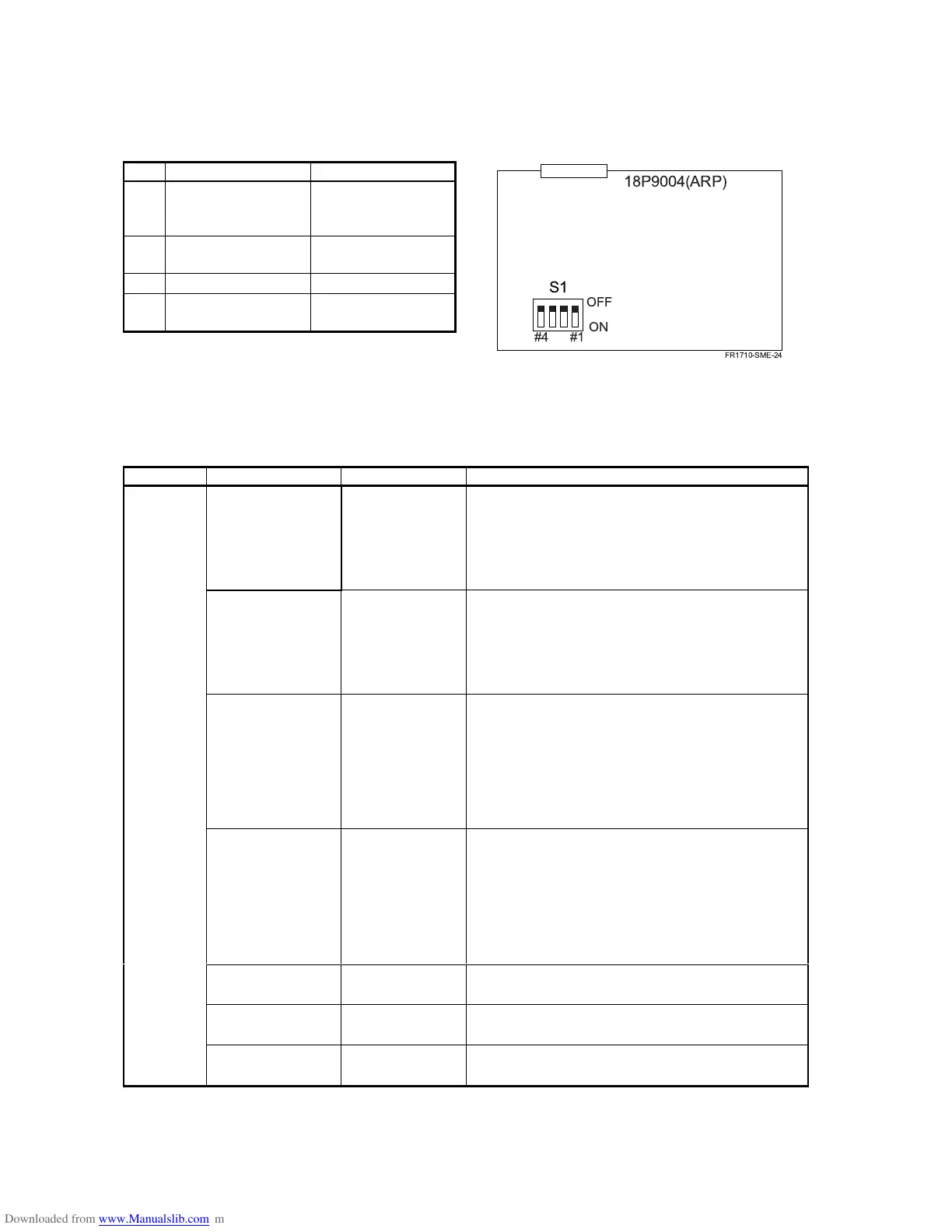

4.1 DIP Switches
DIP switch S1 on the ARP Board (18P9004) changes the specifications of radars.
S1 OFF ON
#1
Baud rate of
ARPA output data:
4800 bps
Baud rate of
ARPA output data:
9600 bps
#2
Tracking model:
A TRK 88 *1
Tracking model
A TRK 94 *1
#3 Not used Used
#4
EEPROM memory
clear at power-off
EEPROM memory
clear at power-on
*1A TRK94 has faster tracking speed than A TRK88, but result in unsteady vector and track.
4.2 Jumper settings
Unit No. Board Name Settings Description
PTU Board, AC
03P9228C
JP1: Yes
JP2: Yes
JP3: Yes
JP4: No
JP10: Yes
C37 : 220uF
For 110 VAC specification
PTU Board, AC
03P9228D
JP1: No
JP2: No
JP3: No
JP4: Yes
JP10: Yes
C37 : 220uF
For 220 VAC specification
PTU Board, DC
03P9223C
JP7: No
JP8: No
JP9: No
JP10: Yes
JP19: X-C
JP20: X-C
K1: VSB
C37: 220uF
For 12 VDC specification
In addition to these settings, the connection on the
transformer T1 must be changed. See next page.
PTU Board, DC
03P9223D
JP7: Yes
JP8: Yes
JP9: Yes
JP10: Yes
JP19: X-C
JP20: X-C
K1: VSB
C37: 220uF
For 24/32 VDC specification
In addition to these settings, the connection on the
transformer T1 must be changed. See next page.
TX-HV Board
HV-9017A
JP1: 300 V
JP2: 330 V
For 10 kW (FR-1510M3)
TX-HV Board
HV-9017B
JP1: 500 V
JP2: 330 V
For 25 kW (FR-1525M3)
Display
Unit
RP Board
03P9259
JP1: Yes For the connection of the battery to back-up circuit
S1
ON
OFF
#4 #1
18P9004(ARP)
FR1710-SME-24
To Next Page
