4-6
4.4 Self-test
Test Menu
Press [MENU], [0], [0], [0], [0], [2], [2], and [ENTER] successively, and the self-test result
display will appear after several seconds. The figure below shows the self-test result display. If
any error has been detected, NG appears instead of OK.
ICs checked in the diagnostic test are shown in the table below. Note that parts level replacement
is not possible, replace an board level.
Check Item ROM RAM P. C. Board
FR1500M3 Test U5 U4 03P9230, SPU
U64 U21, U23 18P9004
ARP Test
U11 U9, U10 18P9007
FR-1500M-3 Test
1.
Item 5, TX Trigger Frequency: Reading in TX condition and with the antenna stopped.
2.
Item 6, Video Level: Monitoring output signal level of EEPOT in the video amplifier. About
158 (3.1V) normal when using long pulse length. If 100, readjust video level. If less than 20,
the video line may open-circuit.
3.
Item 7, Video Signal: NG when the video line is disconnected and the gain control knob is set
to fully ccw. But OK when the magnetron is defective and no transmission takes place , even
if the gain control knob is set to fully ccw.
000 000
X:000
Y:000
RED
GREEN
YELLOW
BLUE
PURPLE
LIGHT
BLUE
WHITE
Press MENU key to escape.
Press ENTER to check CRT.

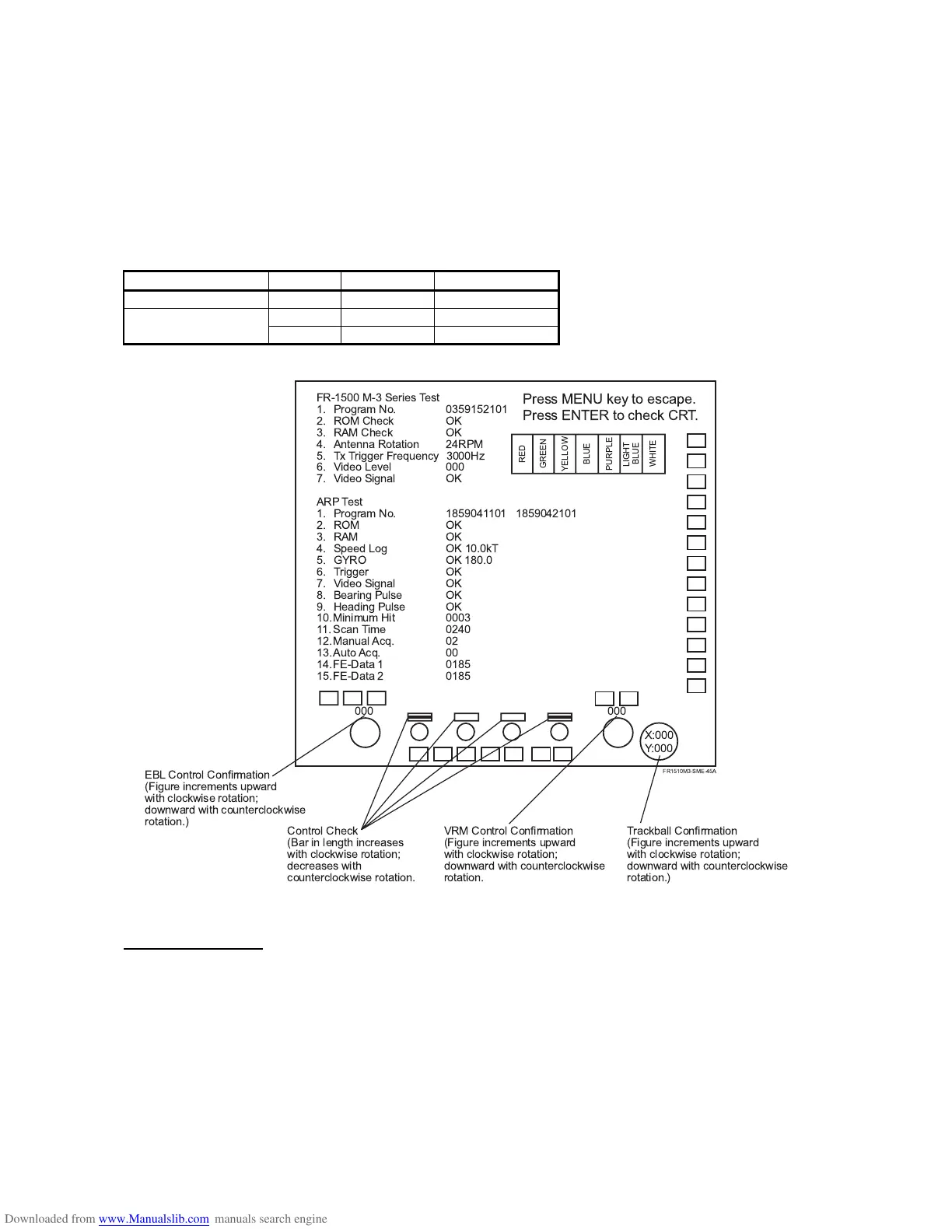

FR-1500 M-3 Series Test
1.Program No. 0359152101
2.ROM Check OK
3.RAM Check OK
4.Antenna Rotation 24RPM
5.Tx Trigger Frequency3000Hz
6.Video Level 000
7.Video Signal OK
ARP Test
1.Program No. 1859041101 1859042101
2.ROM OK
3.RAM OK
4.Speed Log OK 10.0kT
5.GYRO OK 180.0
6.Trigger OK
7.Video Signal OK
8.Bearing Pulse OK
9.Heading Pulse OK
10.Minimum Hit 0003
11.Scan Time 0240
12.Manual Acq. 02
13.Auto Acq. 00
14.FE-Data 1 0185
15.FE-Data 2 0185
EBL Control Confirmation
(Figure increments upward
with clockwise rotation;
downward with counterclockwise
rotation.)
Control Check
(Bar in length increases
with clockwise rotation;
decreases with
counterclockwise rotation.
VRM Control Confirmation
(Figure increments upward
with clockwise rotation;
downward with counterclockwise
rotation.
Trackball Confirmation
(Figure increments upward
with clockwise rotation;
downward with counterclockwise
rotation.)
FR1510M3-SME-45A
To Next Page
