7. CUSTOMIZING YOUR UNIT
7-22
5. Rotate the ENTER knob to select a main
screen, then press the ENTER knob. For
example, select the radar display. Your
choice is then shaded to show that is
has been selected.
6. Rotate the ENTER knob to select the
screen to show at the top right 1/4
screen, then press the ENTER knob or
the ENTER soft key.
7. Rotate the ENTER knob to select the
screen to show at the bottom right 1/4
screen, then press ENTER knob or the
ENTER soft key.
Note: The SELECT WINDOW soft key
functions to select the window to
process.
8. Press the MENU key to close the menu.

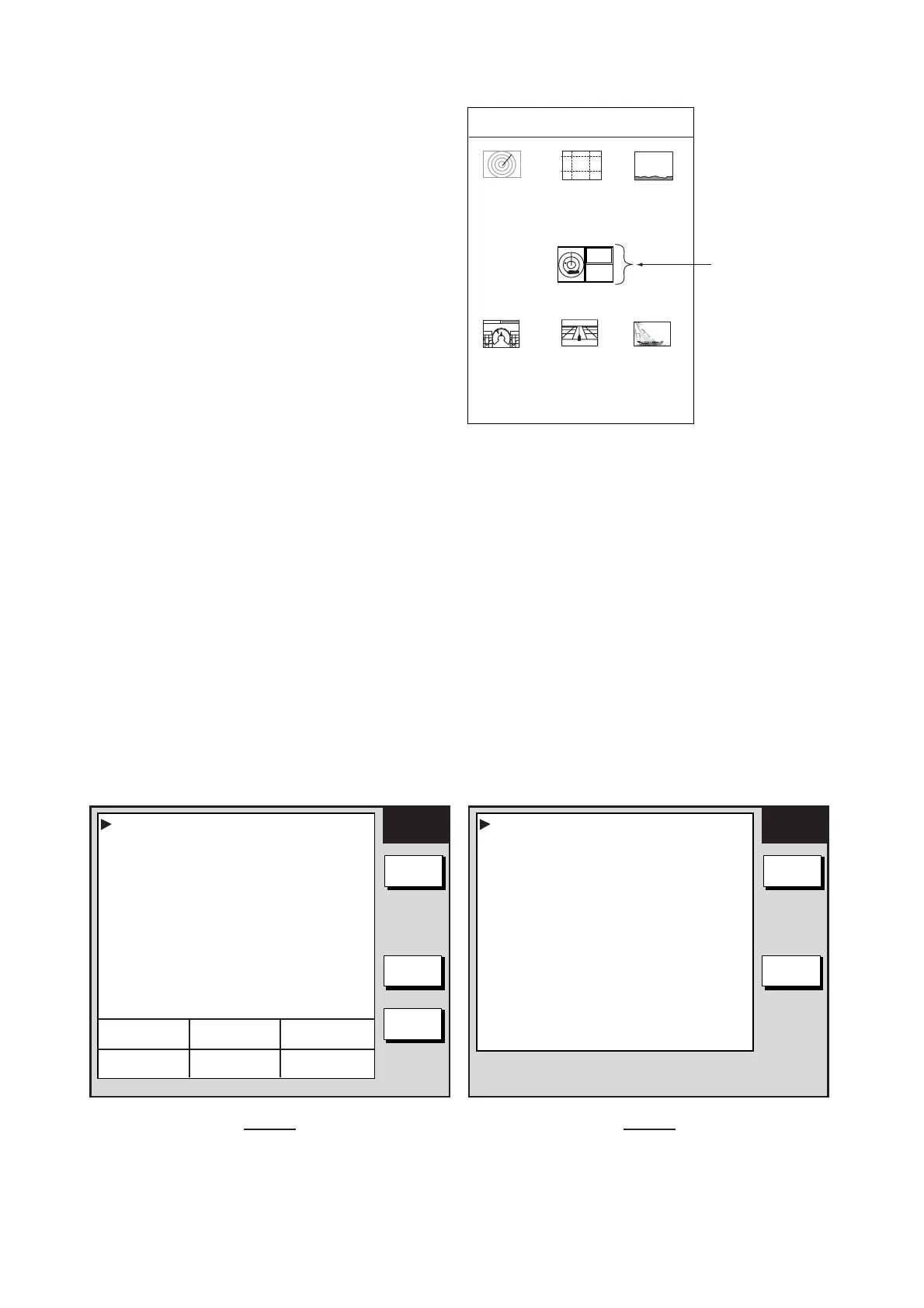

7.7 Navigator Setup
This section provides the information necessary for selecting the type of navigator
connected to your plotter.
7.7.1 Navigation data source
The NAV SETUP menu mainly selects the source of nav data. For GPS receiver other than
a FURUNO BB GPS, speed averaging and local time offset (to use local time) are also
available. Press the MENU key followed by the SYSTEM CONFIGURATION, NAV OPTION
and NAV SOURCE SETTINGS soft keys to display this menu.
NAV
SETUP1
EDIT
RETURN
POSITION SOURCE ALL
SPEED(STW) SOURCE ETR
TEMPERATURE SOURCE ETR
DE`PTH SOURCE ETR
STW CALIBRATION 0%
TEMP CALIBRATION +0.0
°
F
DEPTH CALIBRATION +0.0ft
WIND AVERAGING 5 minutes
WIND DIRECTION OFFSET P0.0
°
WIND SPEED CALIBRATION 00
°
F
WIND(MWV) SOURCE
FURUNO BB GPS
NEXT
PAGE
NAV
SETUP2
EDIT
AIR TEMPERATURE SOURCE FURUNO BB GPS
AIR PRESSURE SOURCE FURUNO BB GPS
PREV>
PAGE
Page 1 Page 2
STW TEMP DEPTH
12.3 kt 56.3
°
F 99.5ft
WIND SPEED
1.2 kt
WIND DIR
131
°
Sub screen
HOT PAGE 1
RADAR
PLOTTER
SOUNDER
COMPASS HIGHWAY EXT VIDEO
To Next Page
