1. OPERATIONAL OVERVIEW
1-8
1.5.2 Selecting a display
1. Press the DISP key to show the display screen selection window. The icons of modes
not available are shaded. HOTPAGE 1-HOTPAGE 6 are user-arrangeable displays
called “hot pages,” which you can configure as you like. For further details, see the
paragraph “7.6 Hot Page Setup.”
RADAR PLOTTER SOUNDER NAV DATA OVERLAY EXT VIDEO WX FAX
· TURN KNOB TO SELECT MODE
AND PUSH KNOB TO ENTER.
· PUSH ANY SOFT KEY TO
SELECT IMAGE SOURCE.
Basic display
screens
Hot pages
Selected
item
HOTPAGE 1 HOTPAGE 2 HOTPAGE 3 HOTPAGE 4 HOTPAGE 5 HOTPAGE 6

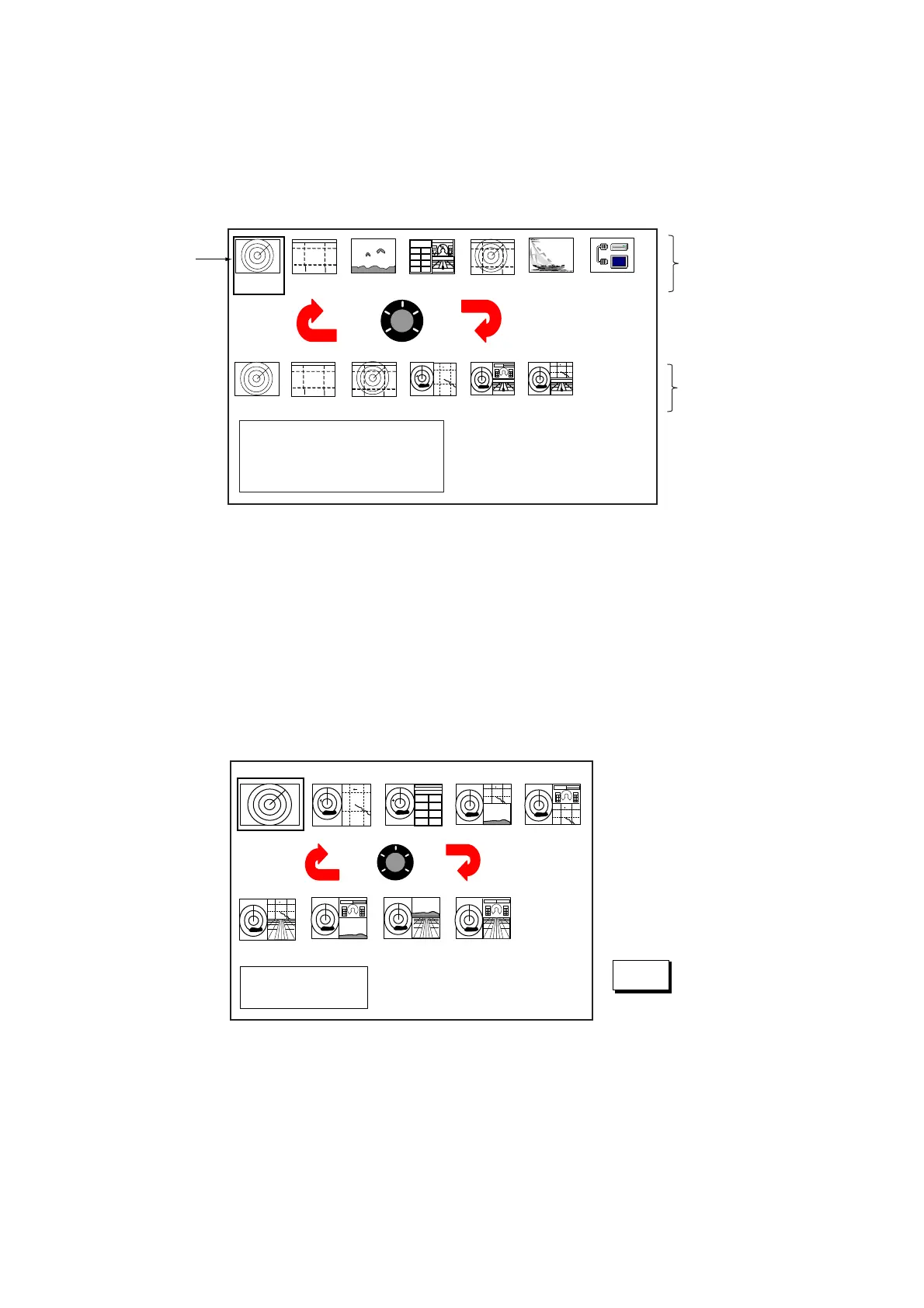

Display screen selection window
Note: “WX FAX” is available only when the facsimile receiver FAX-30 is connected. If
the message “AUX SOURCE IS DISCONNECTED. PUSH ENT KNOB TO EXIT.”
appears, press the ENTER knob and select other item.
2. Rotate the ENTER knob to select a basic display screen or a hot page screen.
3. Push the ENTER knob.
4. If you select a basic display screen, a group of appropriate combination displays appear.
In the example below, the radar combination screens are shown. When WX FAX is
selected at step 2, a combination display does not appear.
PUSH ENTER KNOB.
RETURN
Radar combination screen selection window
5. Rotate the ENTER knob to select display desired.
6. Push the ENTER knob to finish.
To Next Page
