2. RADAR OPERATION
2-16
2.17.2 Measuring range & bearing between two targets
The procedure which follows shows how to measure the range and bearing between two
targets, using the targets “A” and “B” in the figure below as an example.
1. Operate the Trackball to place the cursor on the target “A.”
2. Press the EBL/VRM key to show the EBL/VRM soft keys.
3. Press the EBL1 ON soft key to turn on the EBL1.
4. Press the OFFSET soft key. The origin of EBL1 moves to the cursor position, which is
marked with an “X.”
5. Rotate the ENTER knob so the EBL bisects the target “B.”
6. Push the ENTER knob, then press the VRM1 ON soft key.
7. Rotate the ENTER knob to place the VRM1 on the inner edge of the target “B.”
8. Look at the indications for VRM1 and EBL1 to find the range and bearing between the
two targets.
To cancel the offset EBL, press the OFFSET soft key.
EBL
VRM
EBL1
ON
VRM2
ON
359.9 °R
11.70
nm
+
Target A
Target B
Bearing and range
between target A
and target B
VRM1
ON
OFFSET
EBL2
ON
EBL1
45.0°R
VRM1
7.121nm
12/
H-UP
3nm
LP
319. 9
°M

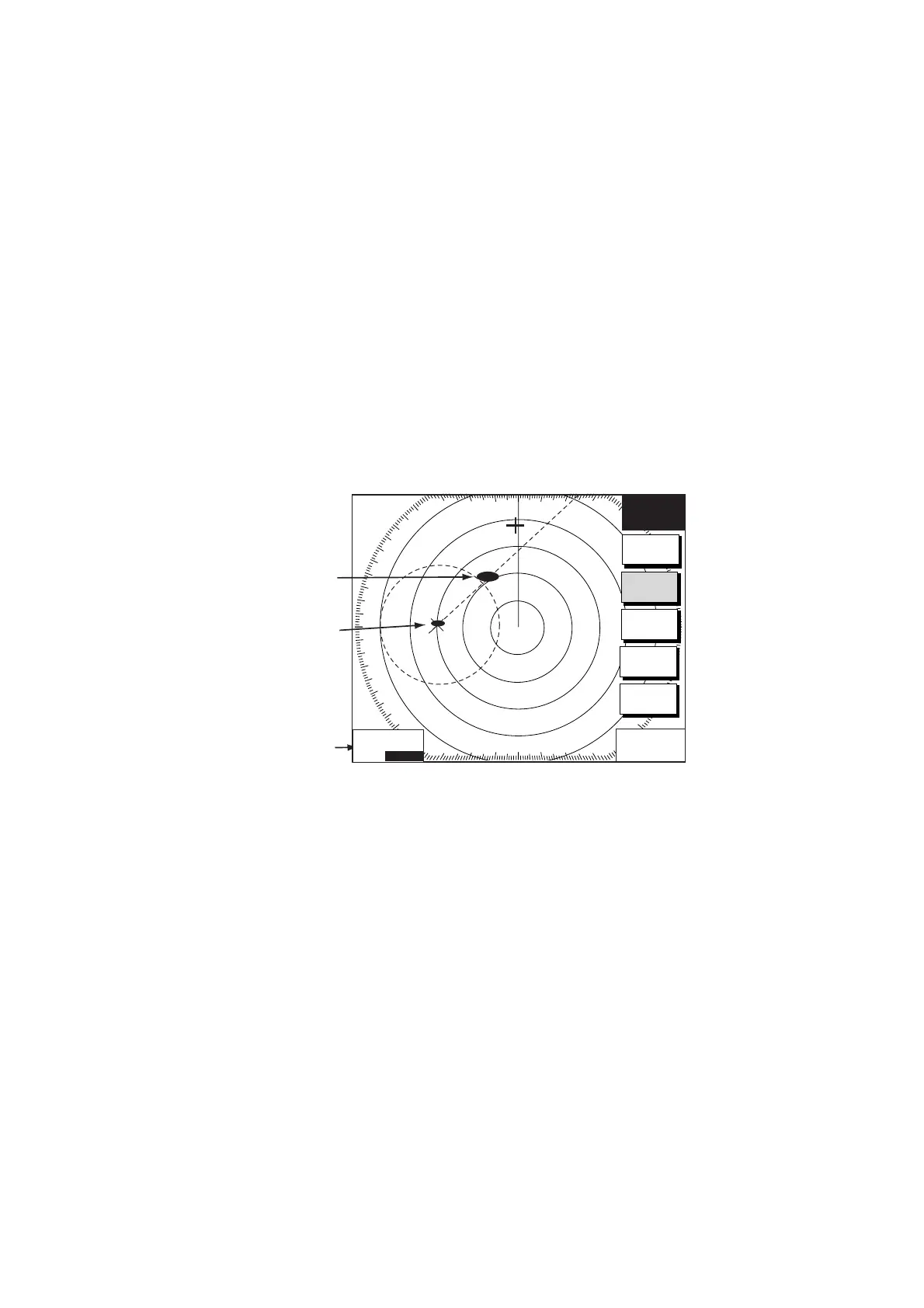

Measuring range and bearing between two targets
