DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
Section 6-4 - Monitor and LCD Adjustments 6-19
6-4-4 LCD Touch Panel Adjustment (cont’d)
4.) Move the cursor to execute Auto Adjust.
5.) Make sure that the Geometry is selected, then the Menu Selection Button.
6.) LCD display Auto Adjustment procedures will be started automatically.The following screen
appears.

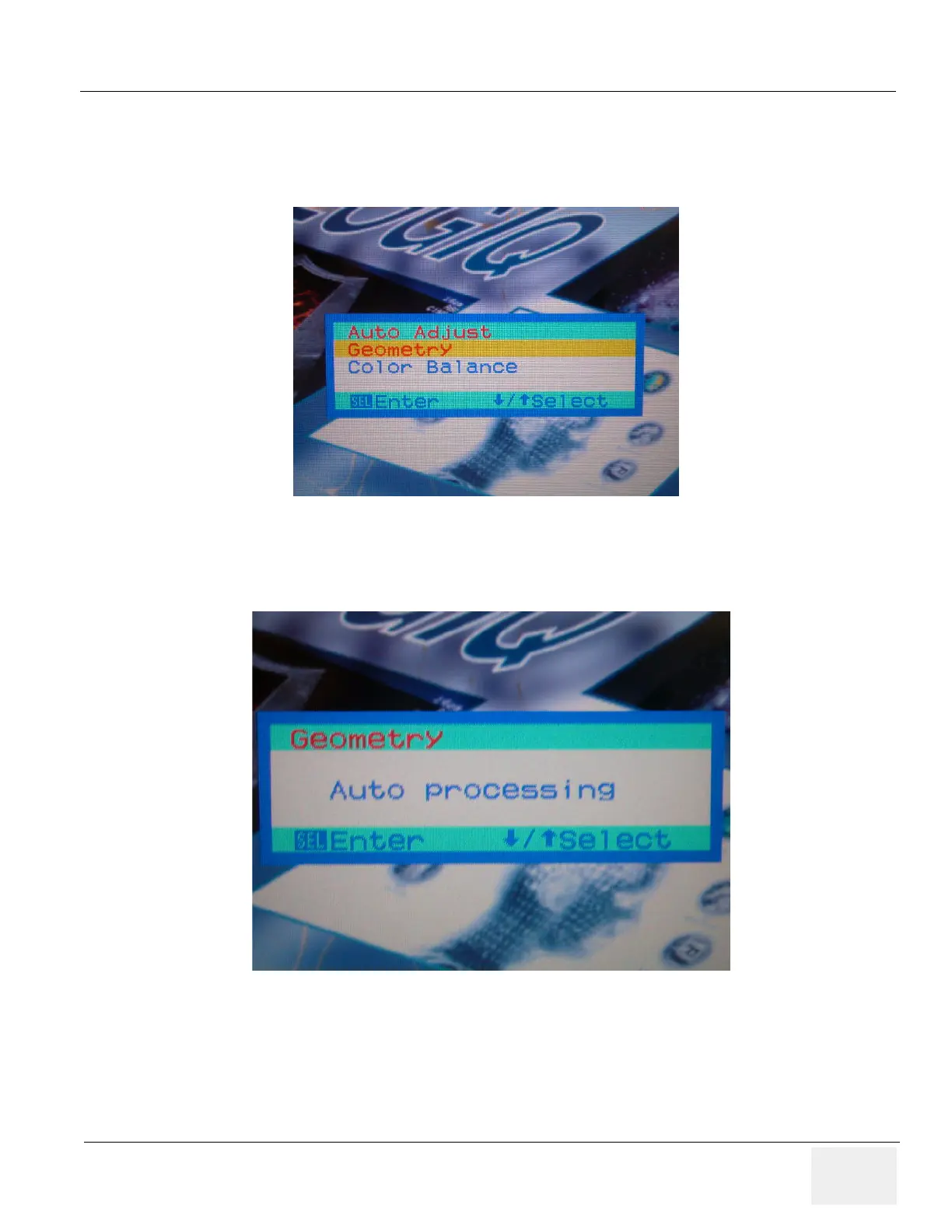

Figure 6-94 Menu Seliction Button
Figure 6-95 Auto Processing Screen
