DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
6-20 Section 6-4 - Monitor and LCD Adjustments
6-4-4 LCD Touch Panel Adjustment (cont’d)

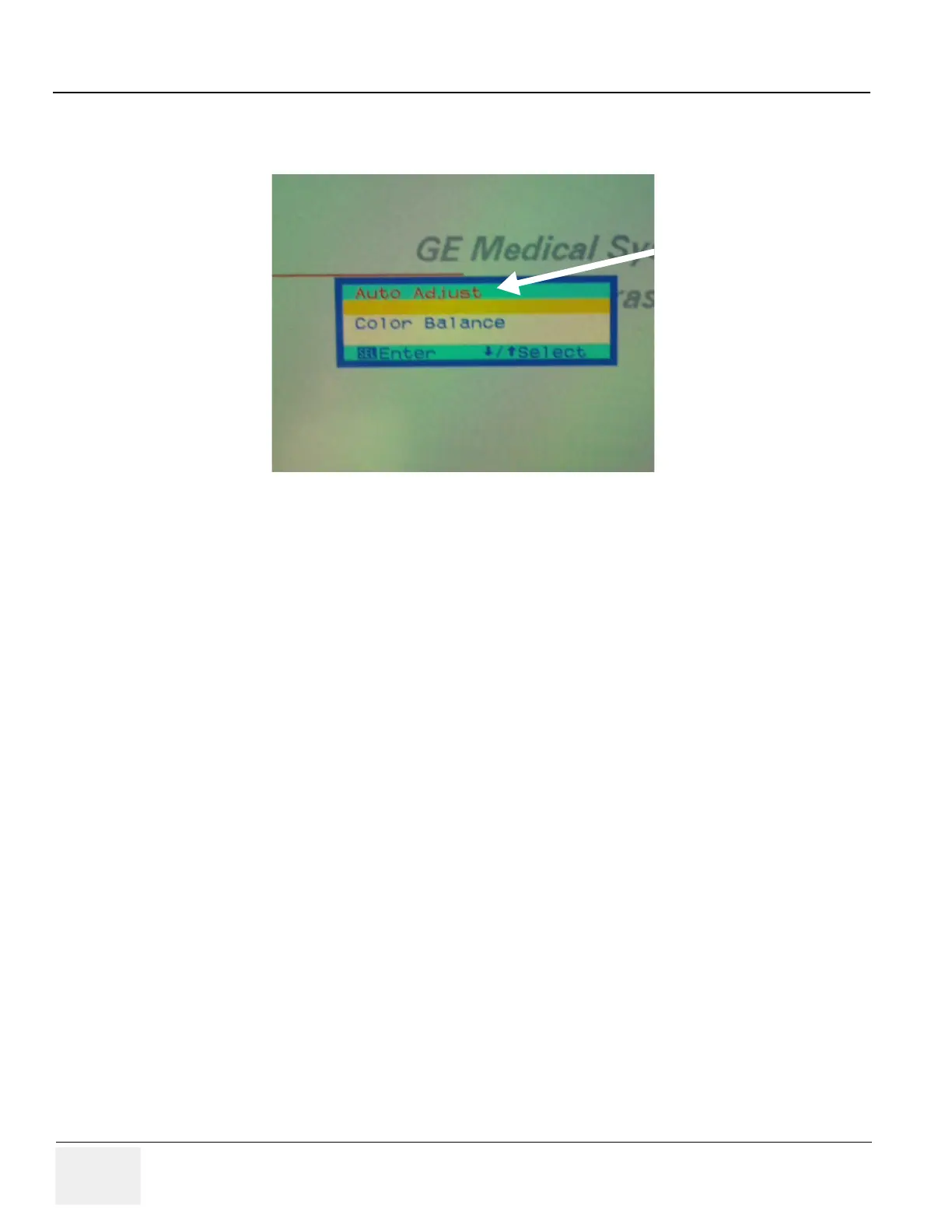

7.) After finishing the Auto Adjustment procedures, the following menu is displayed on the LCD.
8.) Make sure that the LCD displacement is fixed and shown at the center location.
9.) If it is fixed appropriately, go on to the next step.
If the display is not adjusted yet, go back and repeat the adjustment procedures form step 4.
10.)Press the OSD menu display button to seve the setting.
Figure 6-96
