Maintenance: COMM Board Replacement

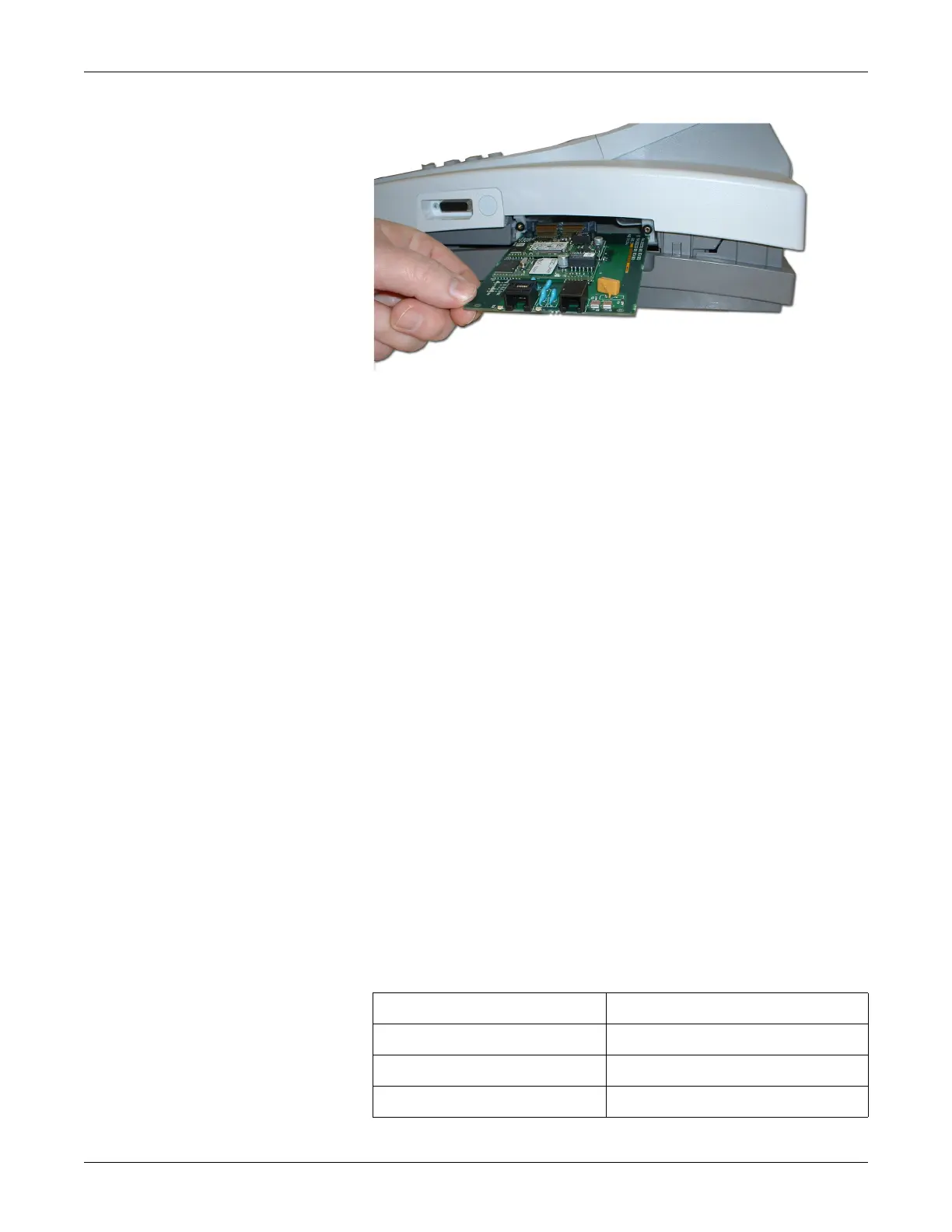

5. Replace the panel surrounding the LAN and modem ports.
Setting up LAN Communications
Use the following procedure to set up the system's LAN communications after
switching the COMM board. For more information, refer to the LAN Option for
MAC™ Resting ECG Systems Installation and Troubleshooting Guide.
NOTE:
Before beginning this process, acquire th
e IP address, gateway, and subnet
mask from the network administrator.
1. Power on the MAC system.
2. From the Main Menu, s
elect System Setup.
3. If prompted, enter the system
password.
4. From the System Set
up menu, select Basic System > Network Setup.
The Network Setu
p window opens.
5. Enter the IP Ad
dress, Subnet Mask, and Gateway provided by the network
ad
ministrator
6. Enter the Po
rt Number used by the MUSE system.
7. Select Ret
urn and press Enter.
The Network Sett
ings window closes.
8. On the Basic
System menu, select Transmission and press Enter.
The Transmission window opens.
9. Enter the following information.
Field Value
Use IR for serial line No
Serial line baud rate 115.2K
Default location Ethernet (MUSE)
