GE MAC 3500 Service Manual

Revision L MAC™ 3500 Resting ECG Analysis System 5-9
2021337-036
Maintenance: FRU Replacement Procedures
Modular MAC Trolley

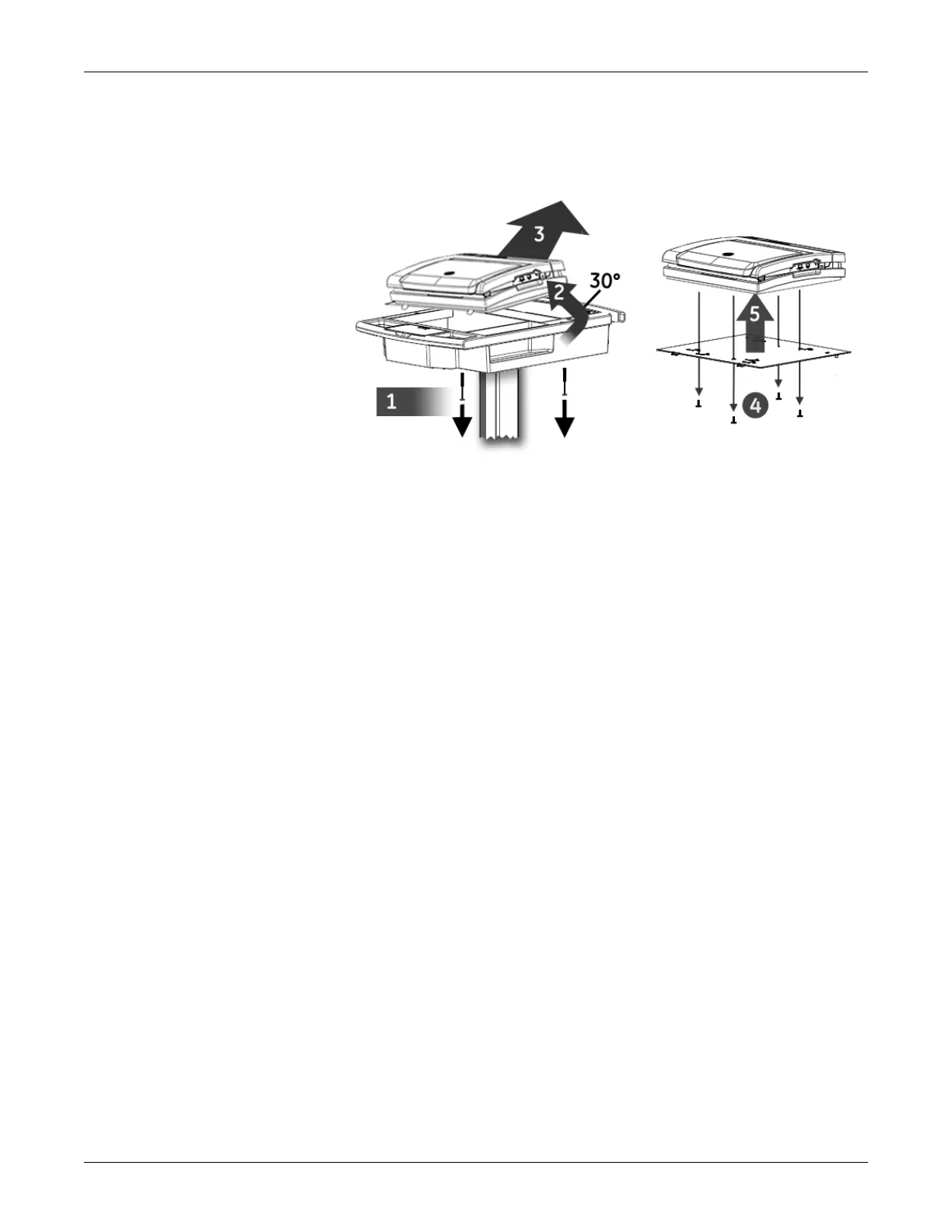

To remove the device from the modular MAC trolley, perform the following steps.
1. Remove the bolts connecting the mounting tray to the trolley t
op.
2. Tilt the rear of the device and mounting tray to a 30° angle.
3. Slide the device and mounting tray toward the back of the trolley to remove
them
.
4. Remove the screws securing the device to the mounting tray.
5. Lift the device from the mounting tray.
The device is now ready to be serviced.
